Design a simple sequential circuit to implement simplified Knight Rider lights with 6 LED outputs.

There will be a single switch input that will switch between two different modes.

State Diagram

State Assignments

Next State Table

Boolean equations for next state logic and output logic

Build the circuit.

Use a SPST switch for the MODE input, a SPST switch for the RESET input, and a 1Hz clock signal for the system clock.

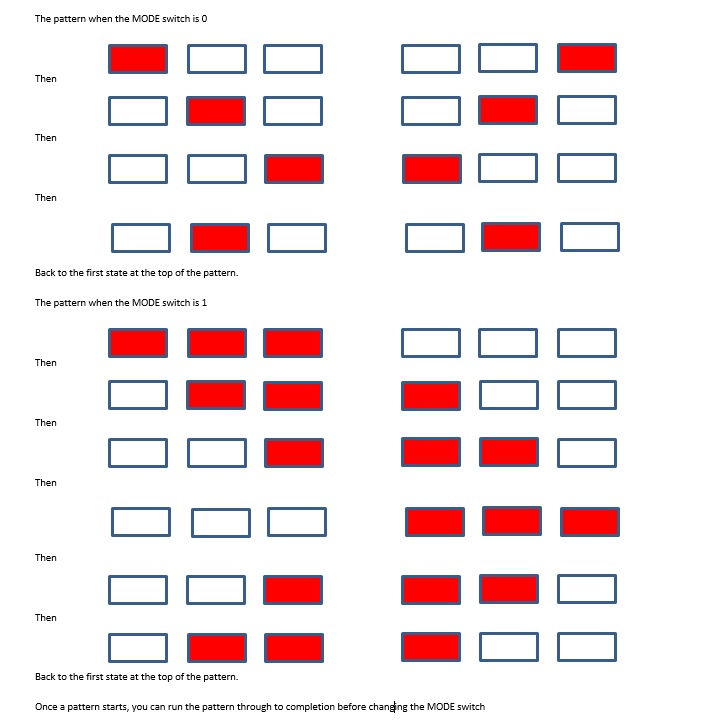

The pattern when the MODE switch is 0 Then Then Then Back to the first state at the top of the pattern. The pattern when the MoDE switch is 1 Then Then Then Then Then Back to the first state at the top of the pattern. once a pattern starts, you can run the pattern through to completion before changng the MoDE switch
