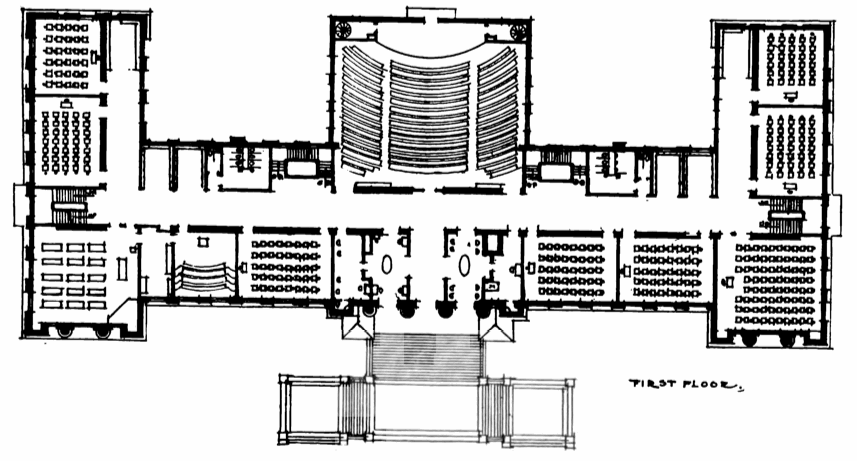

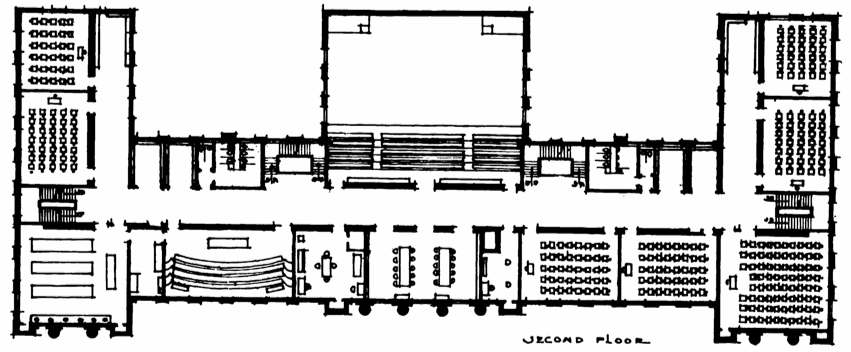

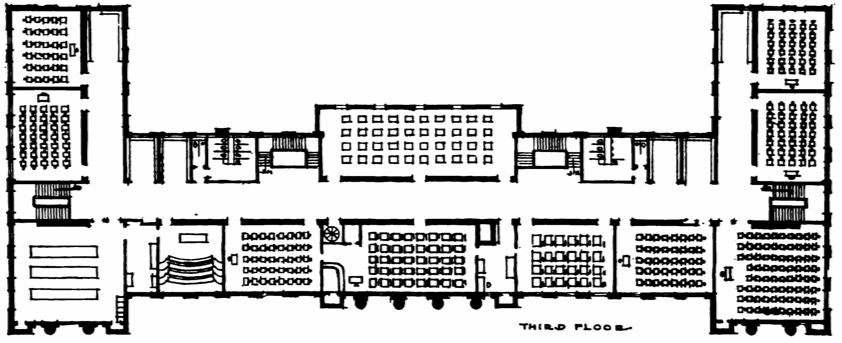

Design a wired network for Maury High school. Your plan must include two live network outlets for each classroom and office and a secured Internet connection that the whole school will share running at at least 1Mbps (symmetric). The school will not have any Internet facing servers. The attached picture are floor plans of Maury High School by floor. The square represent desk aka classrooms.

Submit the following:

1. A plan of where and what equipment is needed to support an ethernet network that connects all of the rooms in Maury High School, including switches and patch cables. The total number of Ethernet ports purchased must be at least 10% more than the total number of outlets. Indicate what equipment is to be installed in each equipment room and telecomm closet.

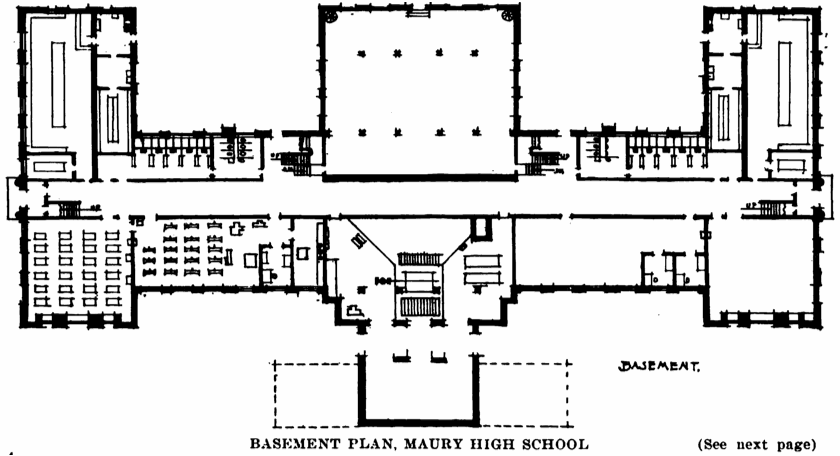

-DASEMEAT BASEMENT PLAN, MAURY HIGH SCHOOL (See next page) -DASEMEAT BASEMENT PLAN, MAURY HIGH SCHOOL (See next page)
