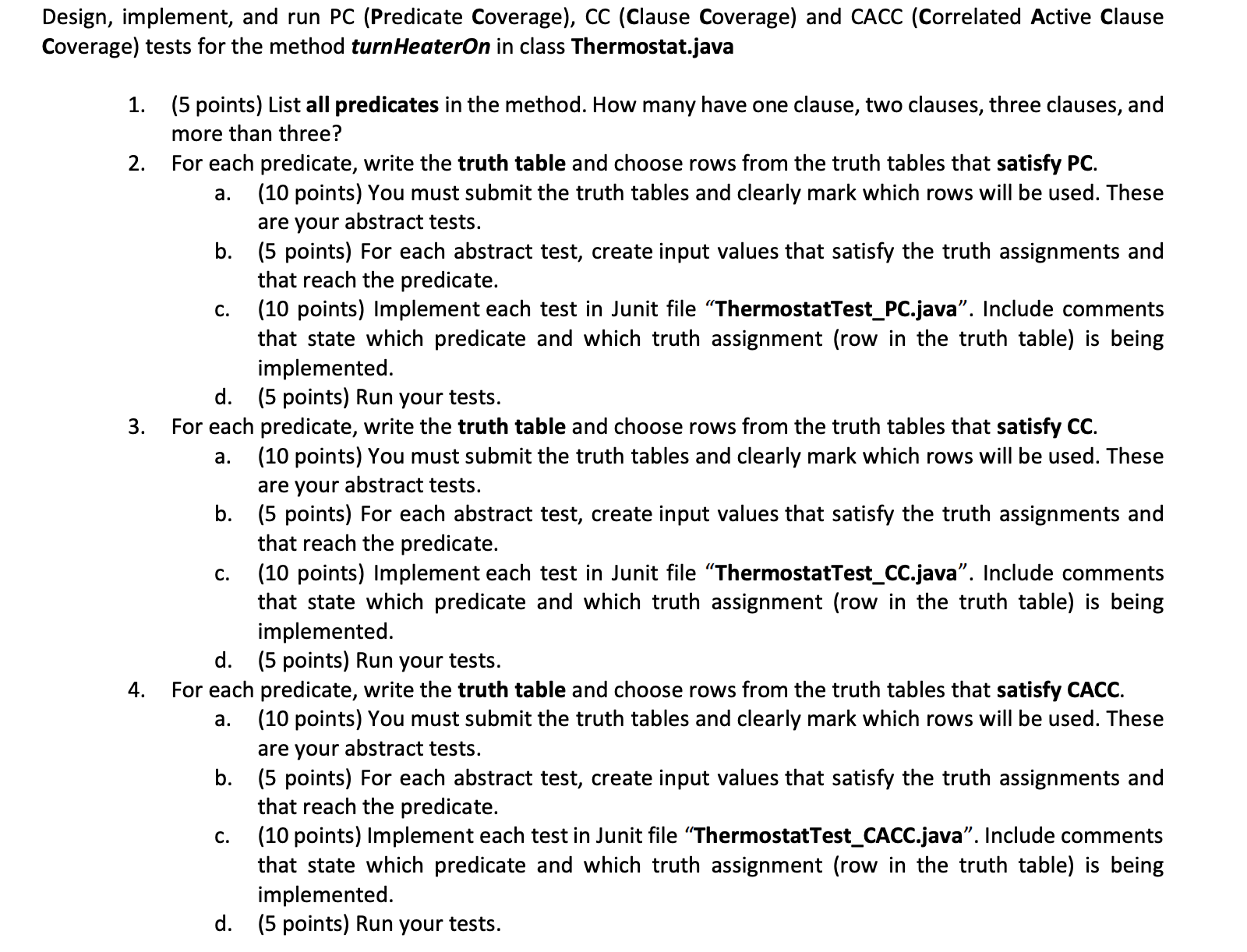

Design, implement, and run PC $($Predicate Coverage$),$ CC $($Clause Coverage$)$ and CACC $($Correlated Active Clause Coverage$)$ tests for the method turnHeaterOn in class Thermostat.java

$1.(5$ points$)$ List all predicates in the method. How many have one clause, two clauses, three clauses, and more than three?

$2.$ For each predicate, write the truth table and choose rows from the truth tables that satisfy PC$.$

a$.(10$ points$)$ You must submit the truth tables and clearly mark which rows will be used. These are your abstract tests.

b$.(5$ points$)$ For each abstract test, create input values that satisfy the truth assignments and that reach the predicate.

c$.(10$ points$)$ Implement each test in Junit file "ThermostatTest$\_$PC$.$java". Include comments that state which predicate and which truth assignment $($row in the truth table$)$ is being implemented.

d$.(5$ points$)$ Run your tests.

$3.$ For each predicate, write the truth table and choose rows from the truth tables that satisfy CC$.$

a$.(10$ points$)$ You must submit the truth tables and clearly mark which rows will be used. These are your abstract tests.

b$.(5$ points$)$ For each abstract test, create input values that satisfy the truth assignments and that reach the predicate.

c$.(10$ points$)$ Implement each test in Junit file "ThermostatTest$\_$CC$.$java". Include comments that state which predicate and which truth assignment $($row in the truth table$)$ is being implemented.

d$.(5$ points$)$ Run your tests.

$4.$ For each predicate, write the truth table and choose rows from the truth tables that satisfy CACC.

a$.(10$ points$)$ You must submit the truth tables and clearly mark which rows will be used. These are your abstract tests.

b$.(5$ points$)$ For each abstract test, create input values that satisfy the truth assignments and that reach the predicate.

c$.(10$ points$)$ Implement each test in Junit file "ThermostatTest$\_$CACC.java". Include comments that state which predicate and which truth assignment $($row in the truth table$)$ is being implemented.

d$.(5$ points$)$ Run your tests. $```$

package thermostat;

$//$Introduction to Software Testing

$//$Authors: Paul Ammann & Jeff Offutt

$//$Chapter $8,$ page $??$

$//$See ThermostatTest.java for JUnit tests

import java.io$.*$;

import java.util.$*$;

$//$Programmable Thermostat

public class Thermostat$\{$

private int curTemp; $//$ current temperature reading

private int thresholdDiff; $//$ temp difference until we turn heater on

private int timeSinceLastRun; $//$ time since heater stopped

private int minLag; $//$ how long I need to wait

private boolean override; $//$ has user overridden the program

private int overTemp; $//$ overriding temperature

private int runTime; $//$ output of turnHeaterOn $-$ how long to run

private boolean heaterOn; $//$ output of turnHeaterOn $-$ whether to run

private Period period; $//$ morning, day, evening, or night

private DayType day; $//$ week day or weekend day

$//$ Decide whether to turn the heater on$,$ and for how long.

public boolean turnHeaterOn $($ProgrammedSettings pSet$)$

$\{$

int dTemp $=$ pSet.getSetting $($period$,$ day$)$;

if $((($curTemp $$ dTemp $-$ thresholdDiff$)||$

$($override && curTemp $$ overTemp $-$ thresholdDiff$))$ &&

$($timeSinceLastRun $>$ minLag$))$

$\{//$ Turn on the heater

$//$ How long? Assume $1$ minute per degree $($Fahrenheit$)$

int timeNeeded $=$ curTemp $-$ dTemp;

if $($override$)$

timeNeeded $=$ curTemp $-$ overTemp;

setRunTime $($timeNeeded$)$;

setHeaterOn $($true$)$;

$\}$

return $($true$)$;

else

$\{$

$\}$

setHeaterOn $($false$)$;

return $($false$)$;

$\}//$ End turnHeaterOn

public void setCurrentTemp $($int temperature$)\{$ curTemp $=$ temperature; $\}$

public void setThresholdDiff $($int delta$)\{$ thresholdDiff $=$ delta; $\}$

public void setTimeSinceLastRun $($int minutes$)\{$ timeSinceLastRun $=$ minutes; $\}$

public void setMinLag $($int minutes$)\{$ minLag $=$ minutes; $\}$

public void setOverride $($boolean value$)\{$ override $=$ value; $\}$

public void setOverTemp $($int temperature$)\{$ overTemp $=$ temperature; $\}$

$//$ for the ProgrammedSettings

public void setDay $($DayType curDay$)\{$ day $=$ curDay; $\}$

public void setPeriod $($Period curPeriod$)\{$ period $=$ curPeriod; $\}$

$//$ outputs from turnHeaterOn $-$ need corresponding getters to activate heater

void setRunTime $($int minutes$)\{$ runTime $=$ minutes; $\}$

void setHeaterOn $($boolean value$)\{$ heaterOn $=$ value; $\}$

$\}//$ End Thermostat class

$``````$

package thermostat;

$//$Used with the Thermostat.java example, Chapter $8$

import java.util.$*$;

public class ProgrammedSettings

$\{$

private Map$>$ settings $=$

new HashMap$>()$;

$//$ Property

public ProgrammedSettings $()$

$\{$

for $($Period p : Period.values$())$

$\{$

HashMap m $=$ new HashMap$()$;

settings.put $($p$,$ m$)$;

for $($DayType d : DayType.values$())$

$\{$

m$.$put $($d$,65)$; $//$ Default value, $18\mathrm{.}33$C

$\}$

$\}$

$\}$

public void setSetting $($Period period, DayType day, int temp$)$

$\{$

$\}$

settings.get $($period$).$put $($day$,$ temp$)$;

public int getSetting $($Period period, DayType day$)$

$\{$

$\}$

return settings.get $($period$).$get $($day$)$;

public String toString$()$

$\{$

$\}```$

package thermostat;

public enum Period $\{$

MORNING, DAY, EVENING, NIGHT

$\}$

$``````$

package thermostat;

public enum DayType $\{$

WEEKDAY, WEEKEND

$\}$

$```$
