design This please using lt spice

electronics (2)

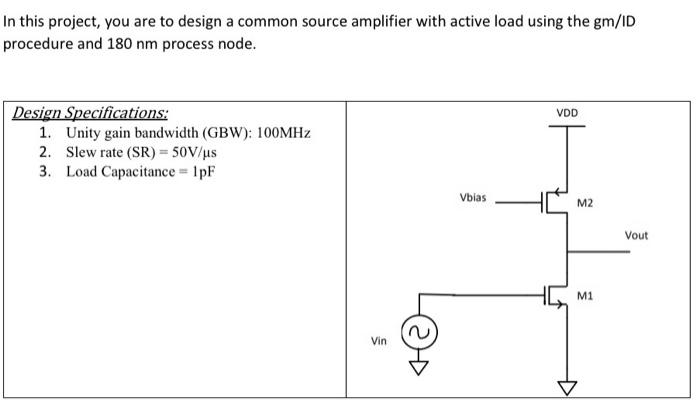

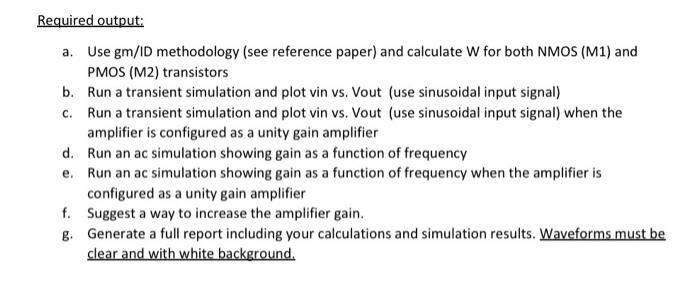

In this project, you are to design a common source amplifier with active load using the gm/ID procedure and 180nm process node. Design Specifications: 1. Unity gain bandwidth (GBW): 100MHz 2. Slew rate (SR)=50V/s Required output: a. Use gm/ID methodology (see reference paper) and calculate W for both NMOS (M1) and PMOS (M2) transistors b. Run a transient simulation and plot vin vs. Vout (use sinusoidal input signal) c. Run a transient simulation and plot vin vs. Vout (use sinusoidal input signal) when the amplifier is configured as a unity gain amplifier d. Run an ac simulation showing gain as a function of frequency e. Run an ac simulation showing gain as a function of frequency when the amplifier is configured as a unity gain amplifier f. Suggest a way to increase the amplifier gain. g. Generate a full report including your calculations and simulation results. Waveforms must be clear and with white
