Question: Determine: a ) The resultant active earth pressure force. b ) The resultant passive earth pressure force. c ) The magnitude and direction of the

Determine:
a) The resultant active earth pressure force.
b) The resultant passive earth pressure force.
c) The magnitude and direction of the net earth pressure force acting on the wall.
d) The point of application of the net earth pressure force acting on the wall.
PASSIVE ACTIVE

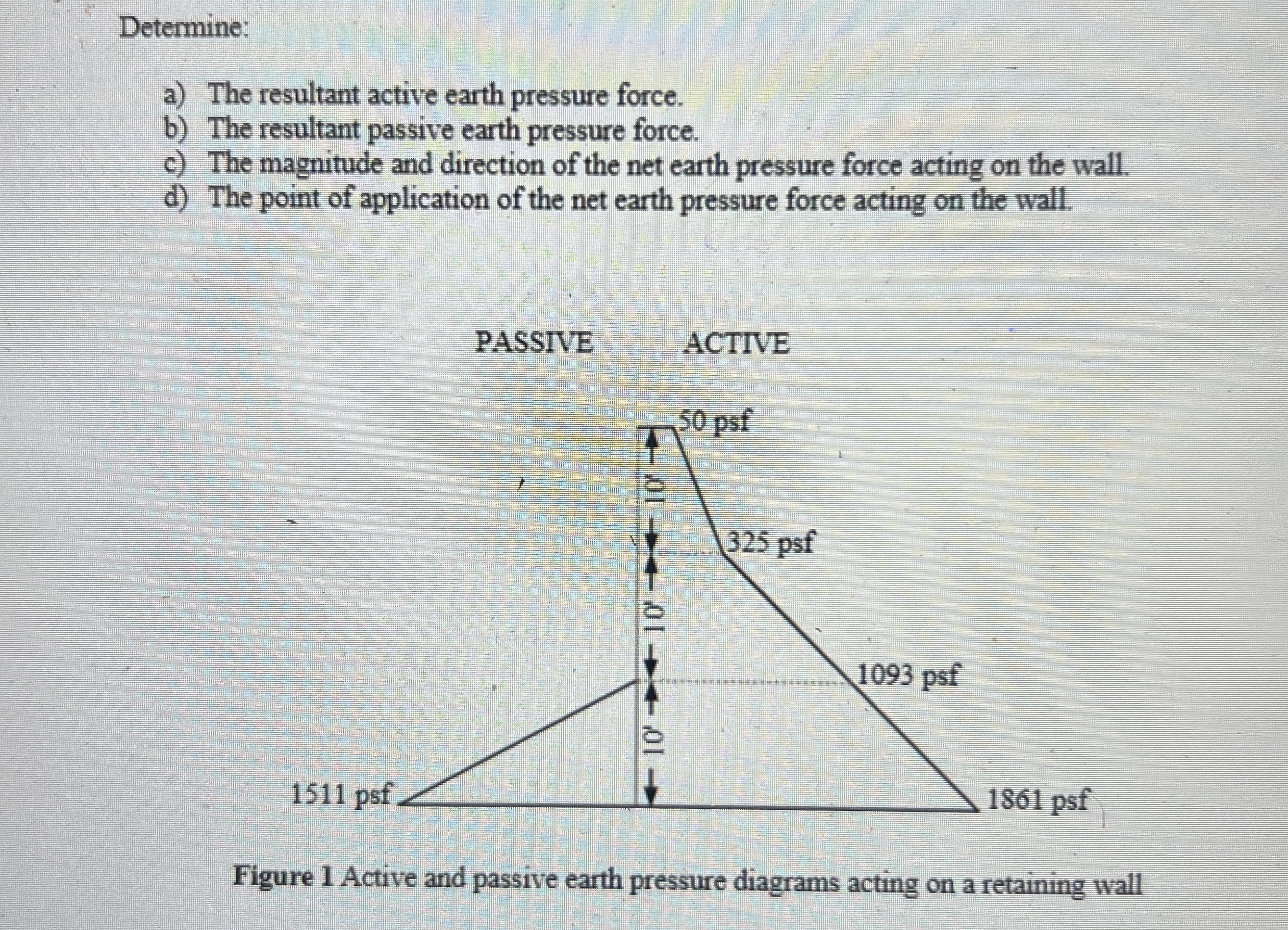

Figure 1 Active and passive earth pressure diagrams acting on a retaining wall
Determine: a ) The resultant active earth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
