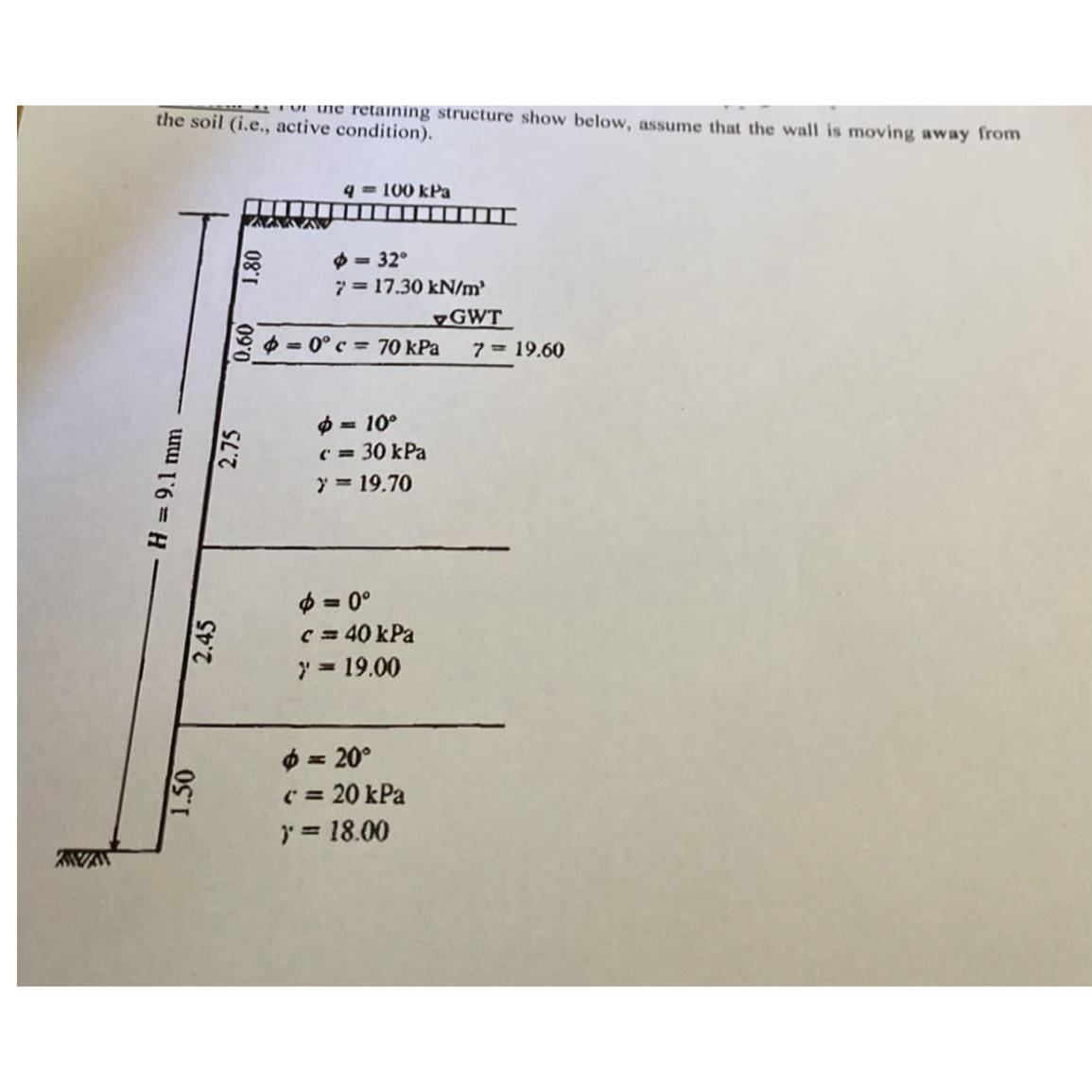

Question: Determine Plot the active earth pressure diagram . Compute the total lateral earth force ( Pa ) and its locatio ( z )

Determine
Plot the active earth pressure diagram .
Compute the total lateral earth force (Pa) and its locatio(z)
Determine Plot the active earth pressure diagram

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
