Question: Determine the current flowing through R 1 from node a to d . Given R 1 = 4 , R 2 = 6 , R

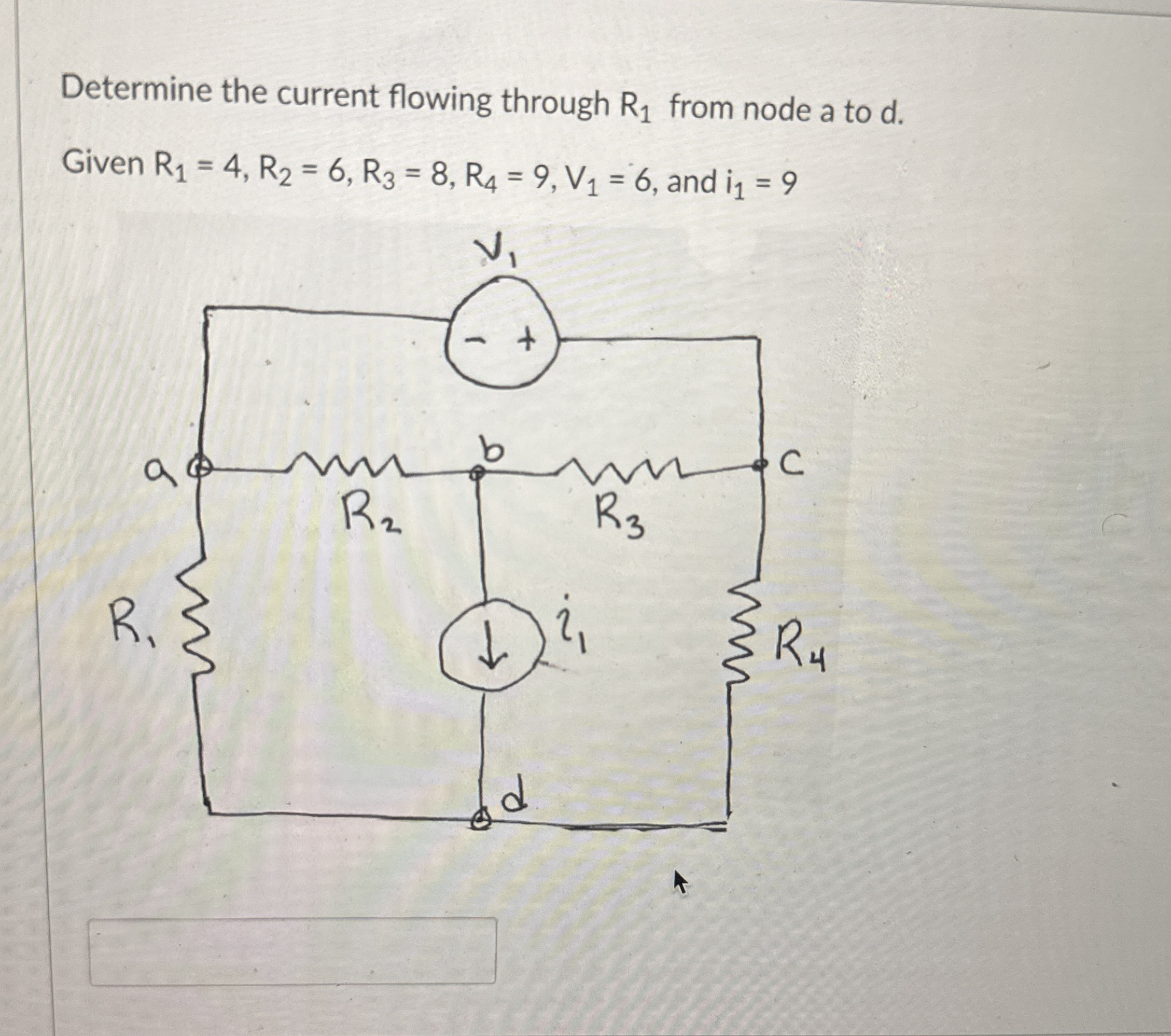

Determine the current flowing through R1 from node a to d.
Given R1=4,R2=6,R3=8,R4=9,V1=6, and i1=9
Determine the current flowing through R 1 from

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
