Question: Determine the current flowing through the diode D 3 ( from anode to cathode ) in the circuit below using the constant voltage drop model

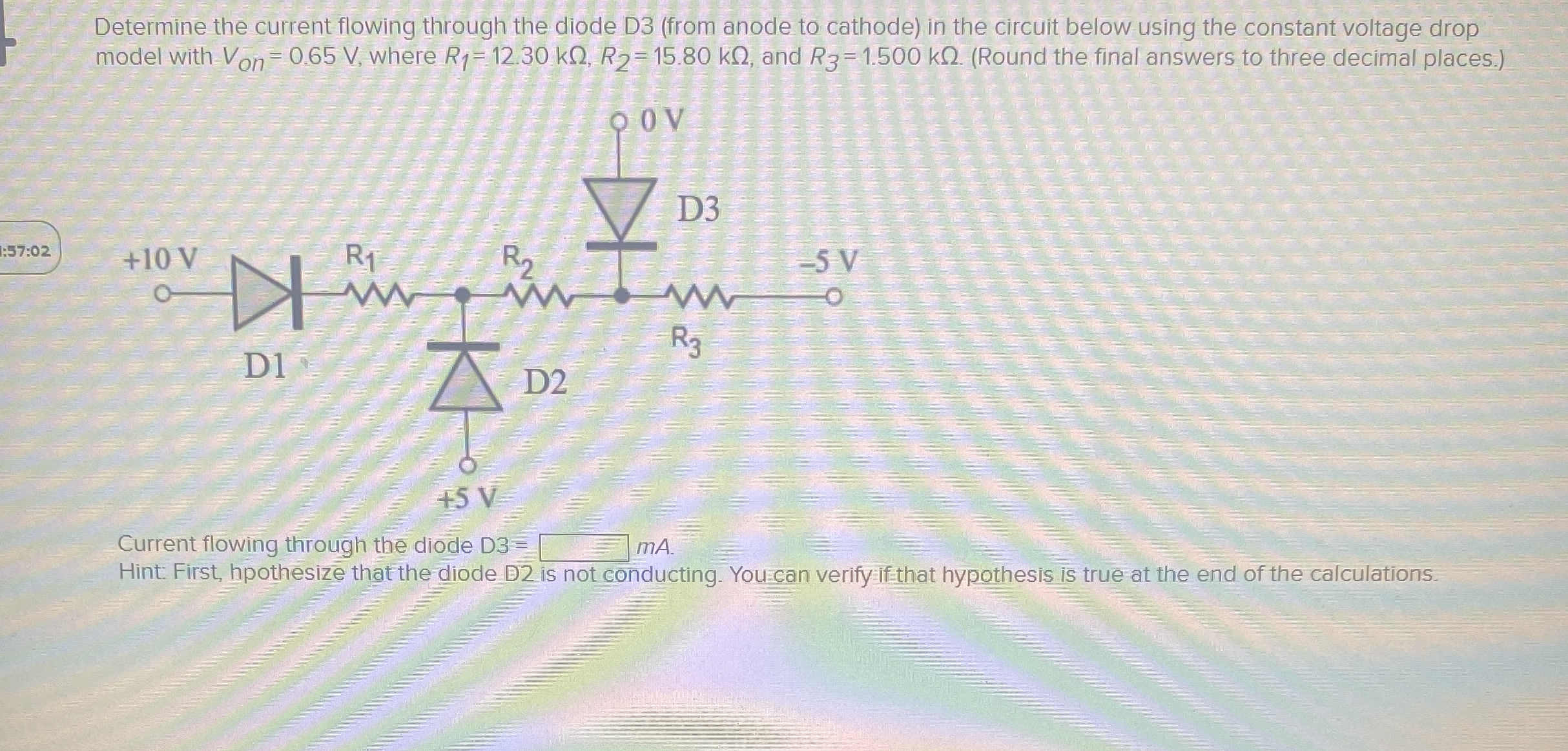

Determine the current flowing through the diode D3(from anode to cathode) in the circuit below using the constant voltage drop model with VOn=0.65V, where R1=12.30k,R2=15.80k, and R3=1.500k.(Round the final answers to three decimal places.)
Current flowing through the diode D3= mA.
Hint: First, hpothesize that the diode D2 is not conducting. You can verify if that hypothesis is true at the end of the calculations.
Determine the current flowing through the diode D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
