Question: Determine the deflection at point C ? Use Double integration method. ( I had calulated the deflection at c which is 1 0 0 8

Determine the deflection at point C? Use Double integration method. (I had calulated the deflection at c which is 1008/EI by moment area method and conjugate method but when I solved it by double integration method I got -1008/EI WHICH IS NEGATIVE) PLEASE FIND DEFLECTION AT "C" BY DOUBLE INTEGRATION METHOD.

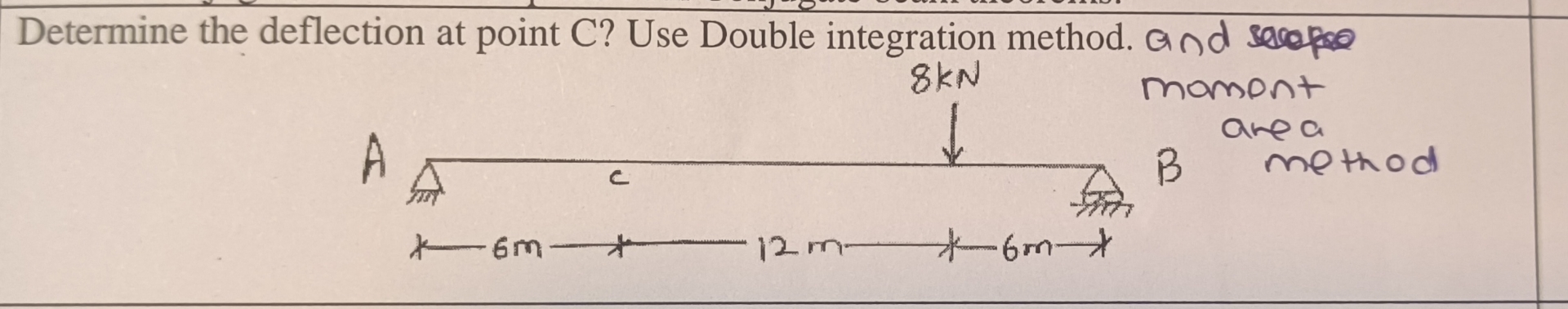

Determine the deflection at point C ? Use Double

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
