Question: Determine the equivalent force system ( both force - moment and forceonly ) at Point A and Point B . Determine the equivalent force system

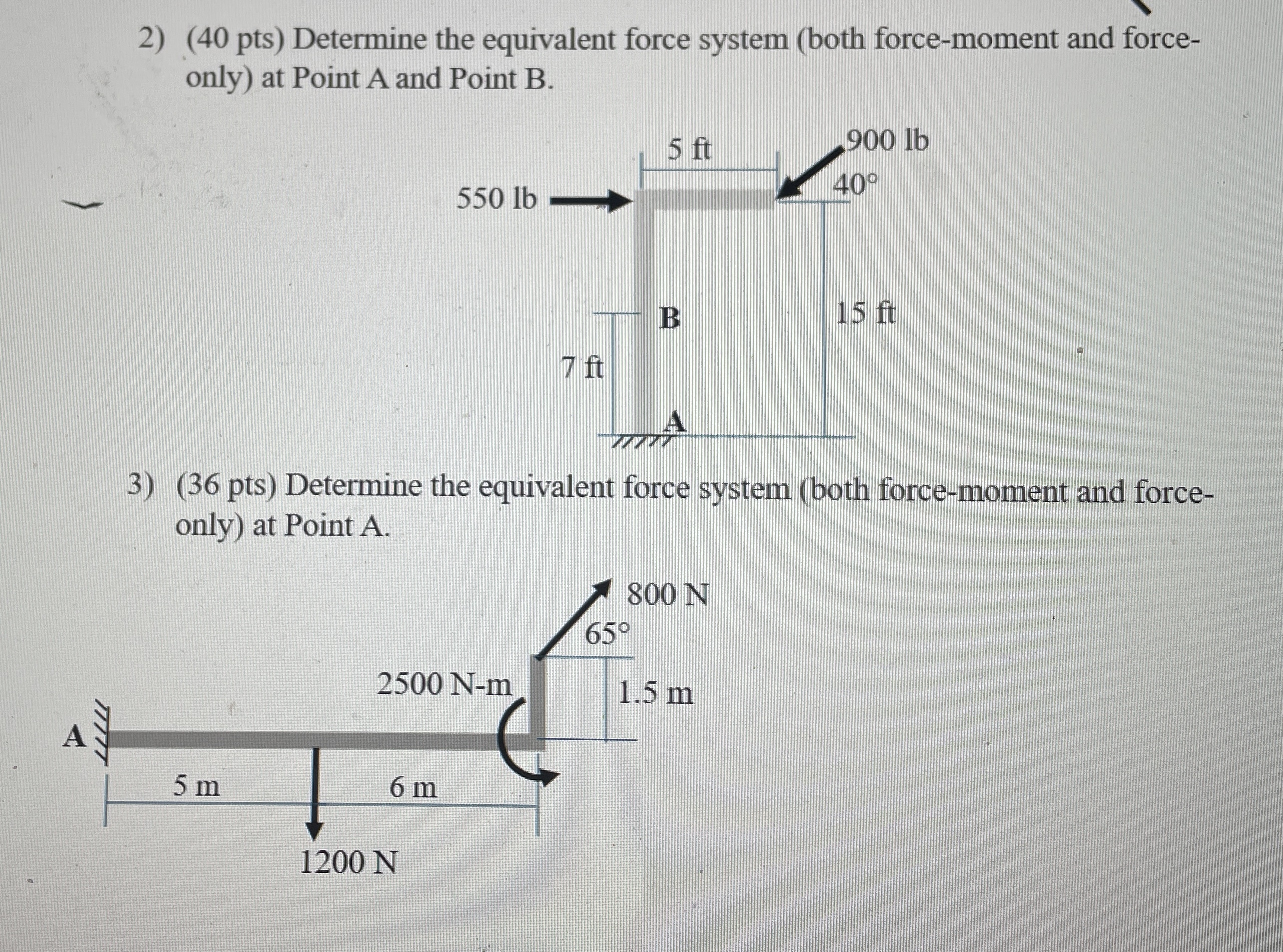

Determine the equivalent force system (both force-moment and forceonly) at Point A and Point B.
Determine the equivalent force system (both force-moment and forceonly) at Point A.
Determine the equivalent force system ( both

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
