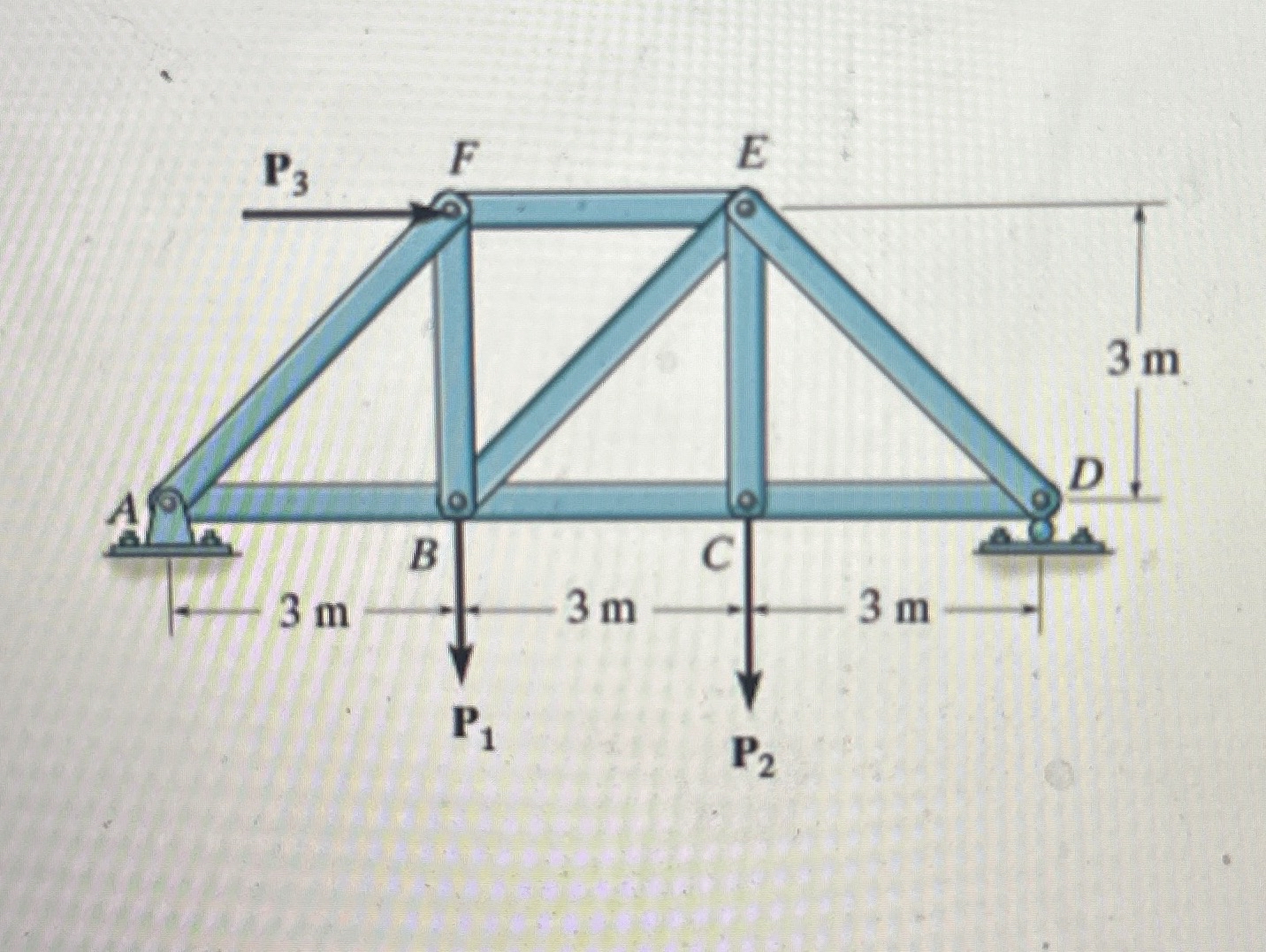

Question: Determine the force in member B C , BE , & EF of the truss and state if this member is in tension or compression.

Determine the force in member

B C,

,

& EF of the truss and state if this member is in tension or compression.

Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension.

Consider the truss

Set P

1 = 6

,

2 = 8

,

3 = 11

Determine the force in member B C , BE , & EF of
