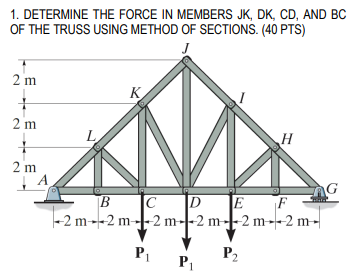

Question: DETERMINE THE FORCE IN MEMBERS JK , DK , CD , AND BC OF THE TRUSS USING METHOD OF SECTIONS. P 1 = 6 5

DETERMINE THE FORCE IN MEMBERS JK, DK, CD, AND BC OF THE TRUSS USING METHOD OF SECTIONS.
P1=65kN
P2=56kN
DETERMINE THE FORCE IN MEMBERS JK , DK , CD , AND

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
