Question: Determine the force in members LK , KC , and CD of the Pratt truss. State if the members are in tension or compression. Take

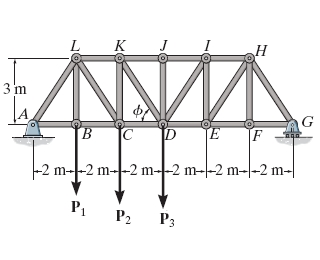

Determine the force in members LK, KC, and CD of the Pratt truss. State if the members are in tension or compression. Take that P1=20 kN , P2=27 kN and P3=43 kN .(Figure 1)
1. Determine the force in the member KC, and state if the member is in tension or compression.
2. Determine the force in the member CD, and state if the member is in tension or compression.
3. Determine the force in the member LK, and state if the member is in tension or compression.
Determine the force in members LK , KC , and CD

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
