Question: Determine the forces in members C l , E H , E F , F G , A l , A B , B I

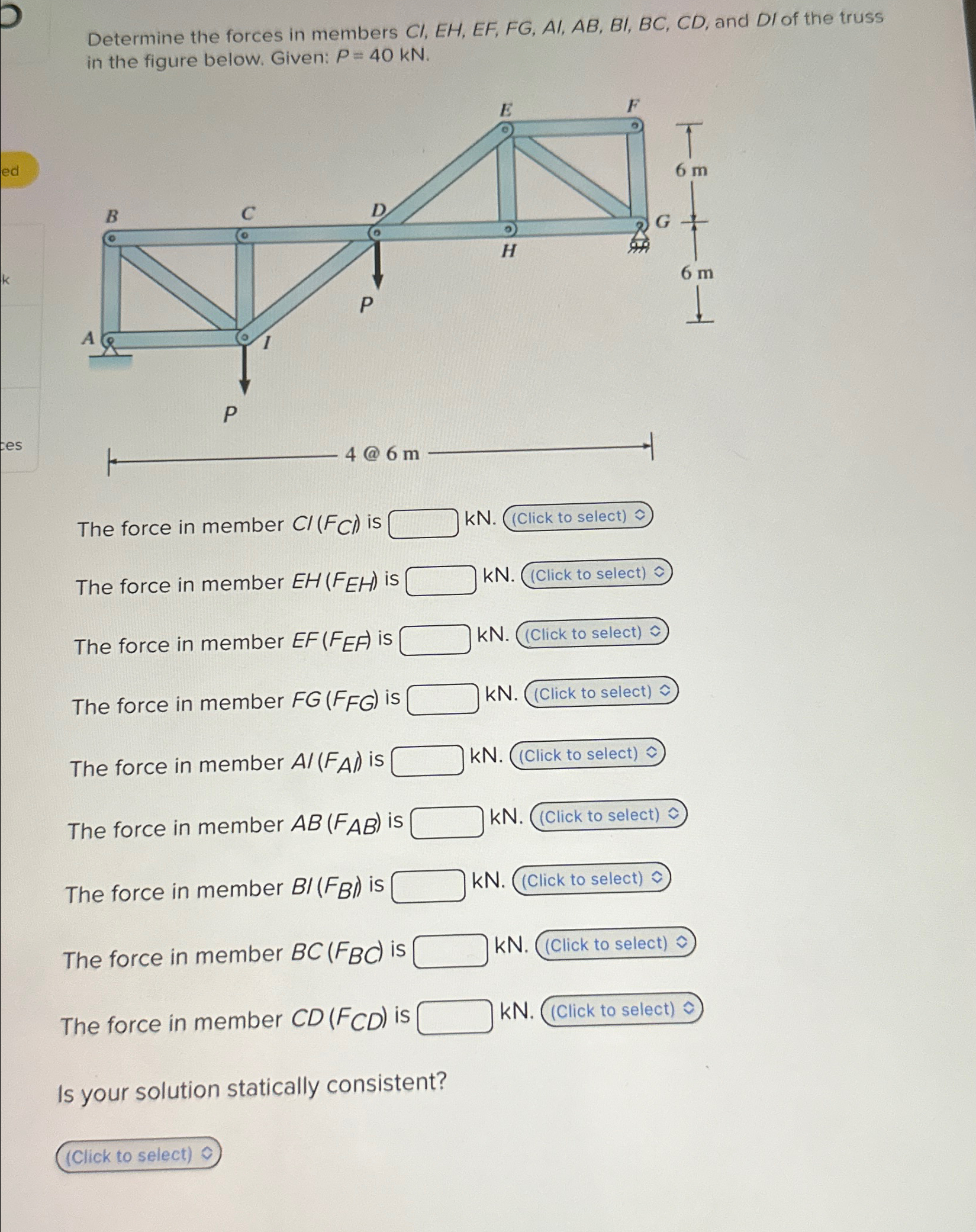

Determine the forces in members Cl,EH,EF,FG,Al,AB,BI,BC,CD, and DI of the truss in the figure below. Given: P=40kN.
The force in member Cl(FClCl) is |kN.(Click to select) hat(vv)
The force in member EH(FEH) is |KN.(1Click to select) hat(ox)
The force in member EF(FEF) is kN.(Click to select)
The force in member FG(FFG) is kN.(Click to select)
The force in member Al(FAl) is kN.(
The force in member AB(FAB) is |kN.(4Click to select) hat(ox)
The force in member BFB is kN.(
The force in member BC(FBC) is kN.
The force in member CD(FCD) is kN. Is your solution statically consistent?
Determine the forces in members C l , E H , E F ,
