Question: Determine the internal normal force, shear force, and bending moment acting at point B of the two - member frame shown in Fig. 7 -

Determine the internal normal force, shear force, and bending moment acting at point

B

of the two

-

member frame shown in Fig.

7 - 7

.

Fig.

7 - 7 (

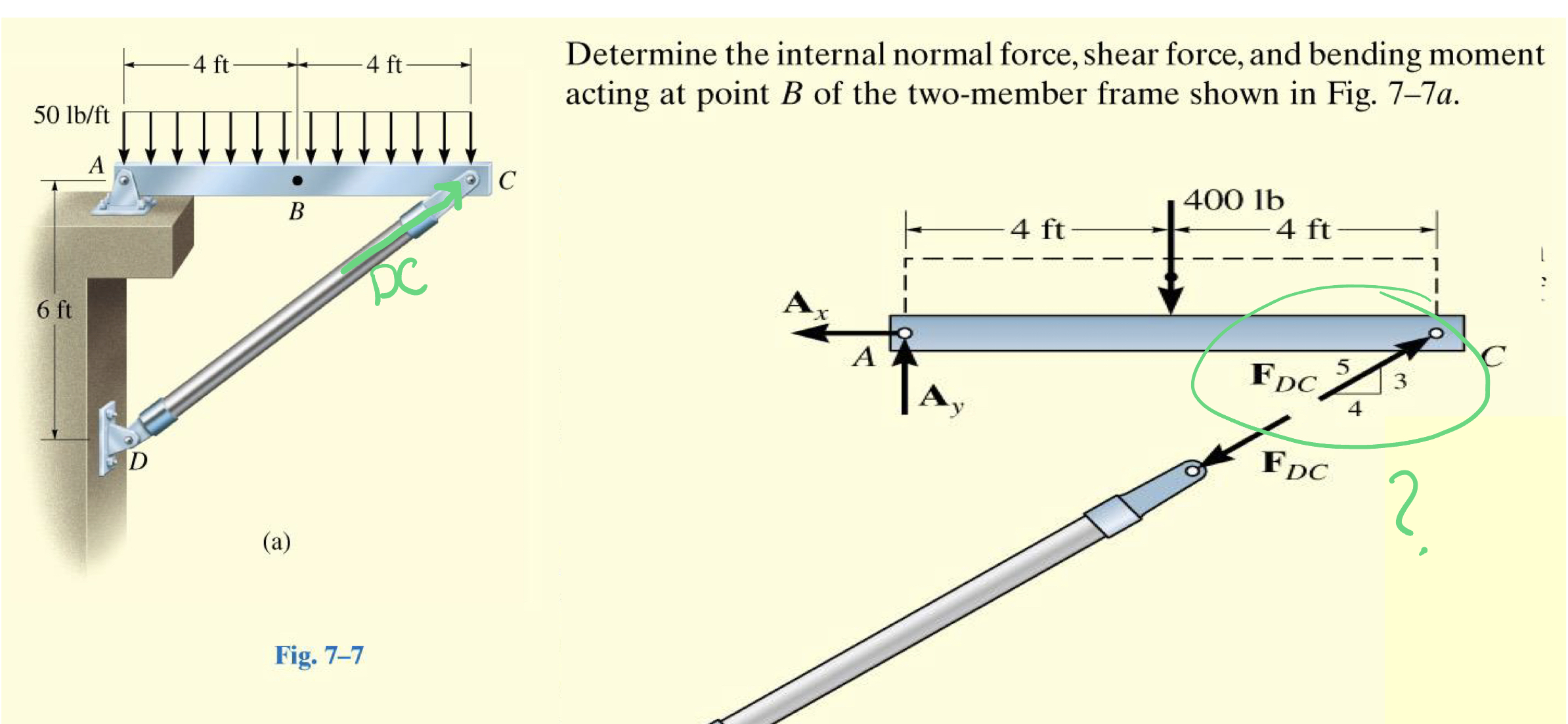

can you provide an explanation for why the dimentions of a tringle are divided into half the length of the tringle? Why the tringle with dimentions of a two foce member DC

(6, 8, 10)

was not used instead

?

Determine the internal normal force, shear force,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
