Question: Determine the internal shear at point D , which is 1 m to the left from the right end of the beam as shown. Use

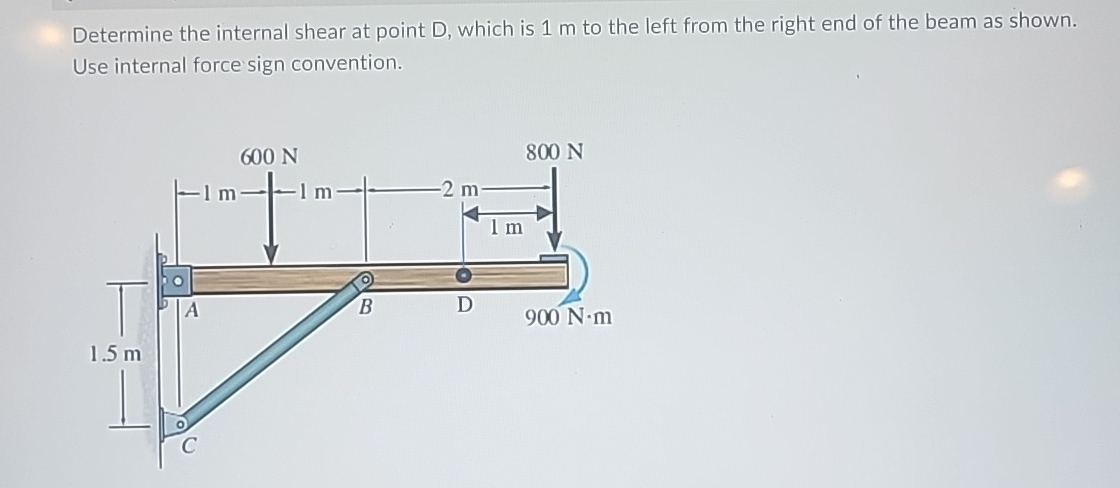

Determine the internal shear at point D, which is 1m to the left from the right end of the beam as shown. Use internal force sign convention.
Determine the internal shear at point D , which

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
