Question: Determine the maximum wide - beam shear stresses ( v s u ) acting on the critical section ( s ) of the reinforced concrete

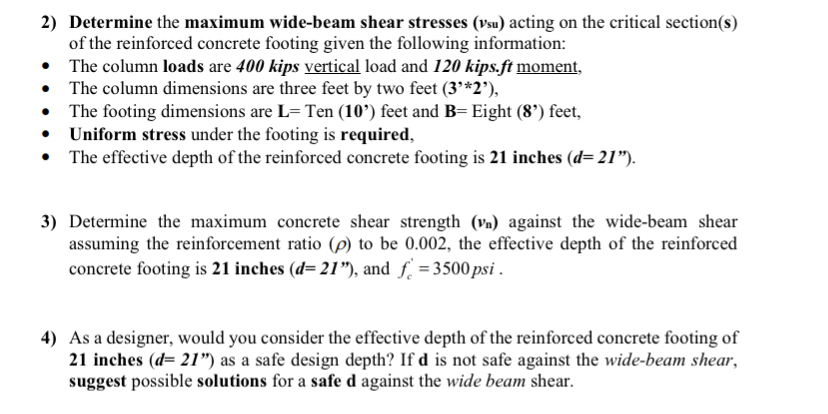

Determine the maximum wide-beam shear stresses (vsu) acting on the critical section(s) of the reinforced concrete footing given the following information:
The column loads are 400 kips vertical load and 120 kips.ft moment,
The column dimensions are three feet by two feet (3'*2'),
The footing dimensions are L=Ten(10') feet and B=Eight(8') feet,
Uniform stress under the footing is required,
The effective depth of the reinforced concrete footing is 21 inches ").
Determine the maximum concrete shear strength (vn) against the wide-beam shear assuming the reinforcement ratio () to be 0.002, the effective depth of the reinforced concrete footing is 21 inches
Determine the maximum wide - beam shear stresses
