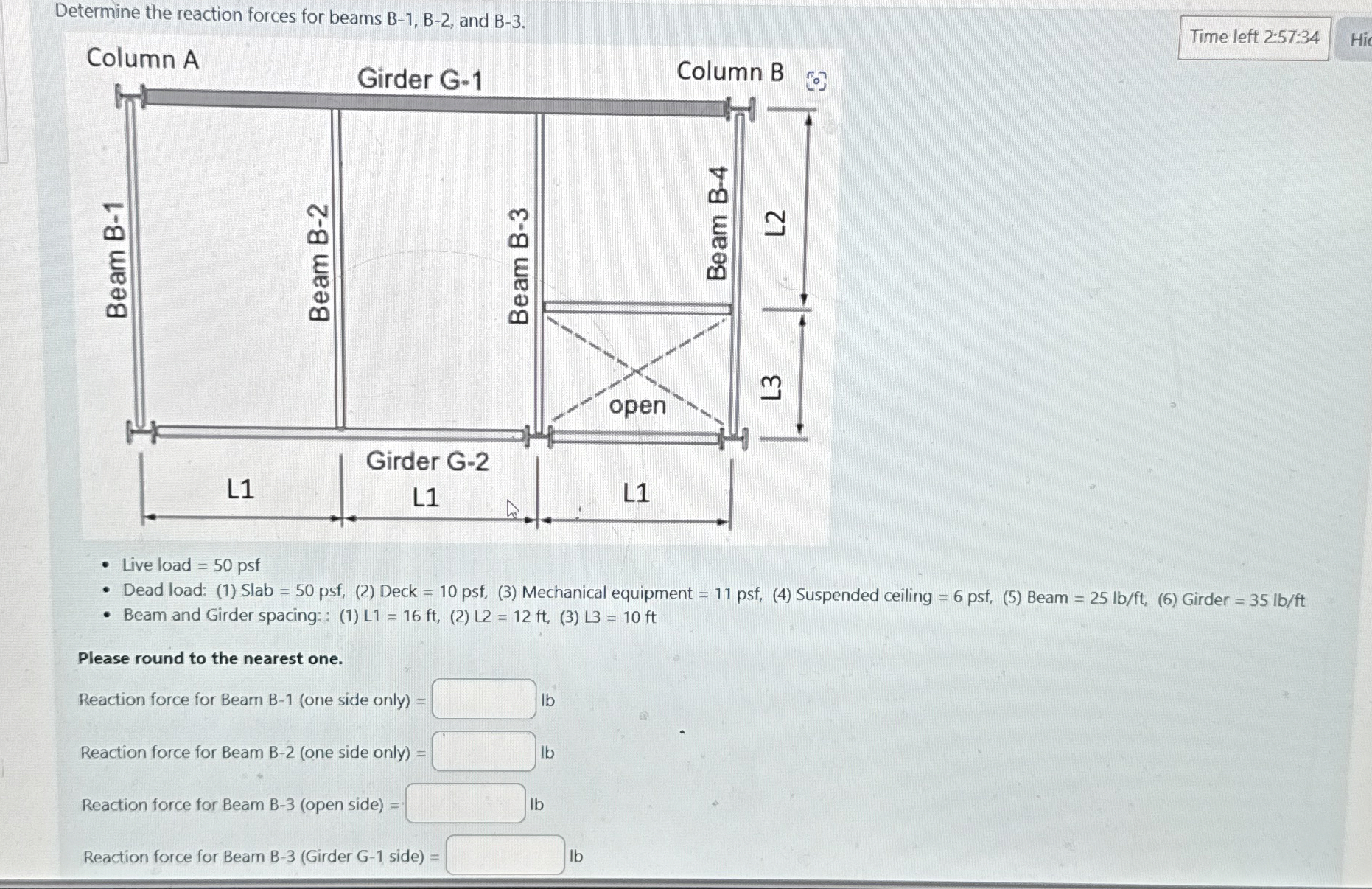

Question: Determine the reaction forces for beams B - 1 , B - 2 , and B - 3 . Live load = 5 0 psf

Determine the reaction forces for beams B-1, B-2, and B-3.
Live load =50 psf
Dead load: (1) Slab =50 psf,
(2) Deck =10 psf,
(3) Mechanical equipment =11 psf,(4) Suspended ceiling =6 psf,
(5) Beam =25lbft,
(6) Girder =35lbft
Beam and Girder spacing: : (1)L1=16ft,(2)L2=12ft,(3)L=10ft
Please round to the nearest one.
Reaction force for Beam B-1(one side only)=
lb
Reaction force for Beam B-2(one side only)=
lb
Reaction force for Beam B-3(open side)=
lb
Reaction force for Beam B-3(Girder G-1 side)=
lb
