Determine the slope at $A.$

Express your answer using three significant figures.

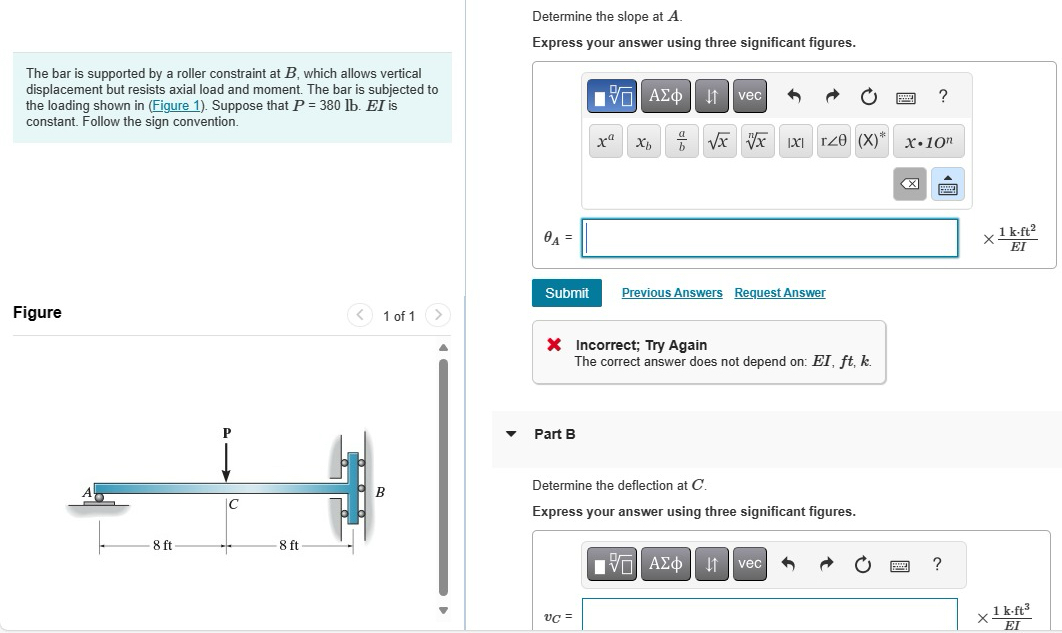

The bar is supported by a roller constraint at $B,$ which allows vertical displacement but resists axial load and moment. The bar is subjected to the loading shown in $($Figure $1).$ Suppose that $P=380lb.EI$ is constant. Follow the sign convention.

Figure

$1$ of $1$

$\frac{1k*f{t}^2}{EI}$

Previous Answers

Request Answer

Incorrect; Try Again

The correct answer does not depend on: $EI,ft,k.$

Part B

Determine the deflection at $C.$

Express your answer using three significant figures.

$v_C=|$~$\frac{1k*f{t}^3}{EI}|$
