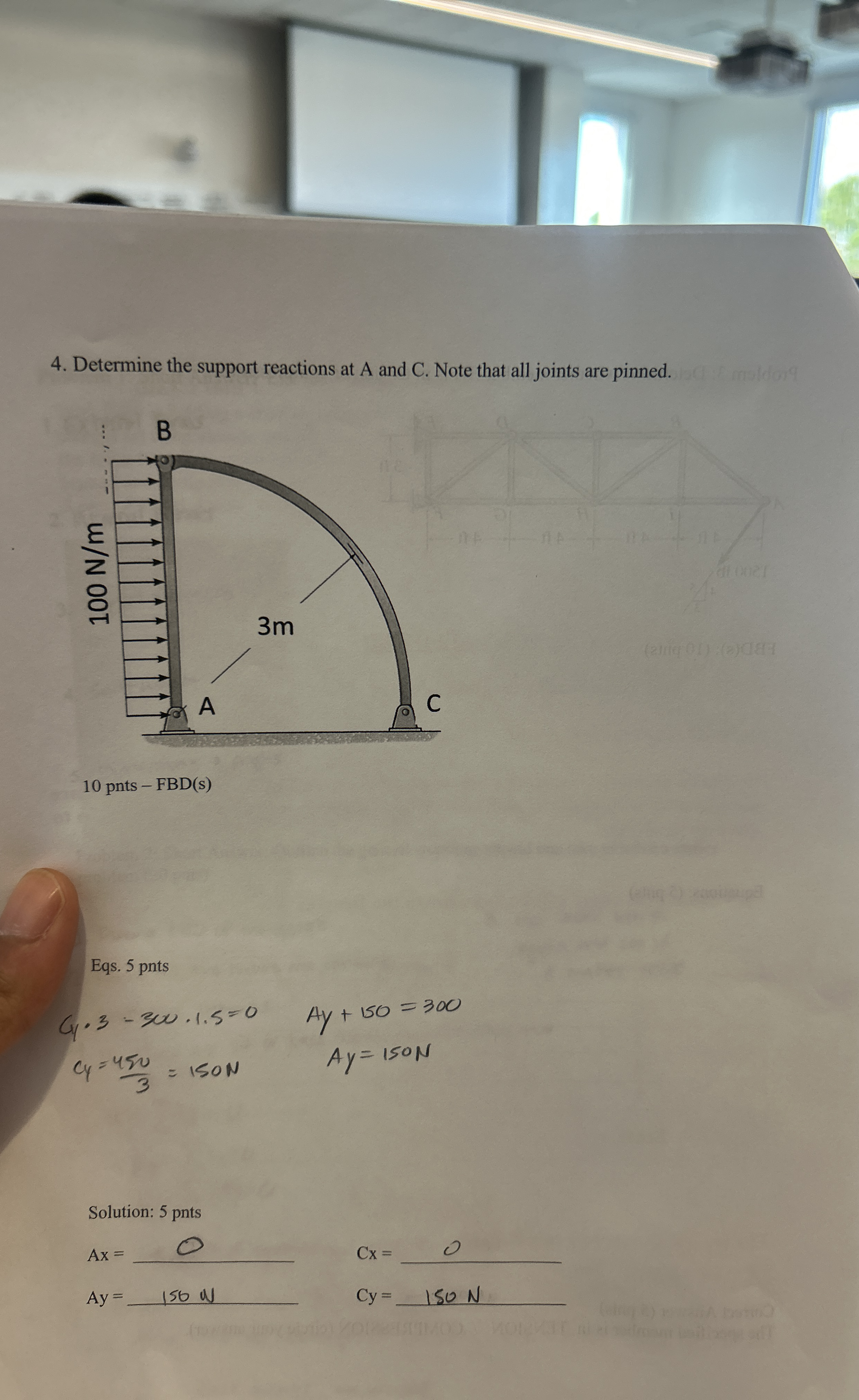

Question: Determine the support reactions at A and C . Note that all joints are pinned. Eqs. 5 pnts Solution: 5 pnts A x = A

Determine the support reactions at A and C . Note that all joints are pinned.
Eqs. 5 pnts
Solution: 5 pnts
Ax=
Ay=
Draw the free body diagram
Determine the support reactions at A and C . Note

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
