Question: Determine the vertical reaction at Support E ( Ey ) in N , if the frame is loaded by a clockwise couple with a magnitude

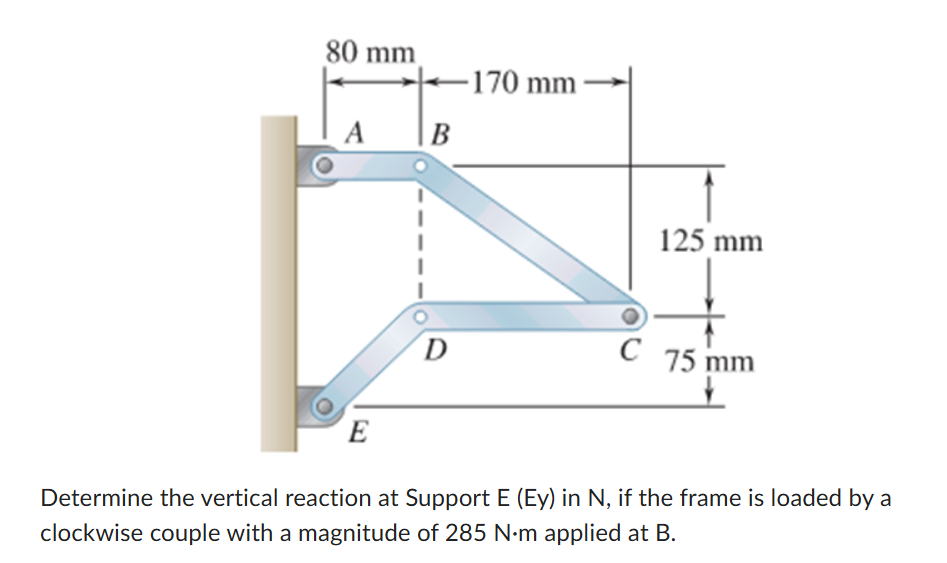

Determine the vertical reaction at Support E (Ey) in N, if the frame is loaded by a clockwise couple with a magnitude of 285 Nm applied at B.
Determine the vertical reaction at Support E ( Ey

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
