Question: Determine the x - y and n - t components of the 1 0 . 0 kip force F acting on the simply supported beam.

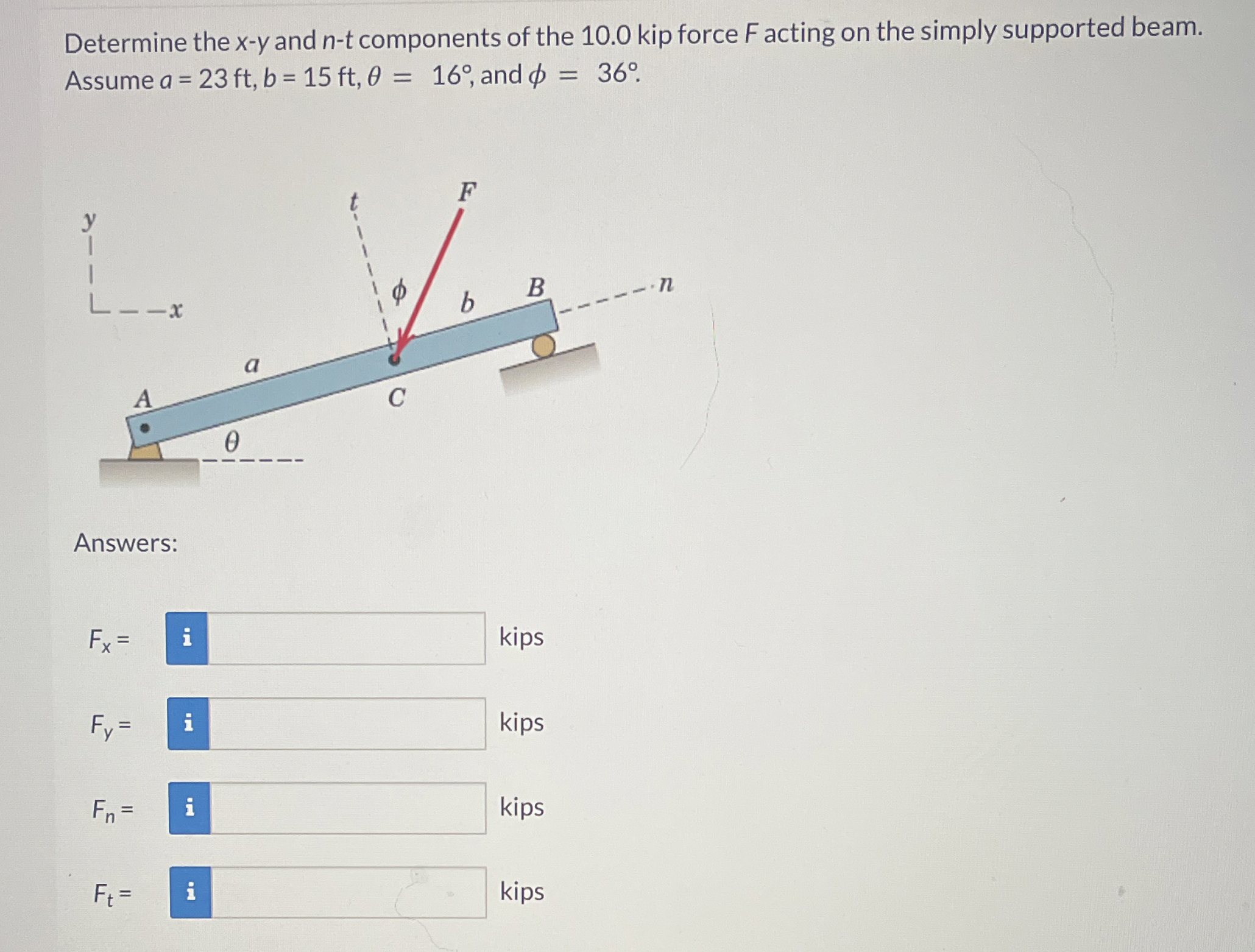

Determine the x-y and n-t components of the 10.0 kip force F acting on the simply supported beam. Assume a=23ft,b=15ft,=16, and =36.
Answers:
Fx= kips
Fy= i kips
Fn=- kips
Ft= kips
Determine the x - y and n - t components of the 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
