Digital Electronics Problem #3: +VCC ic Rc Rb Vi ww Q1 Consider the basic inverter of...

Transcribed Image Text:

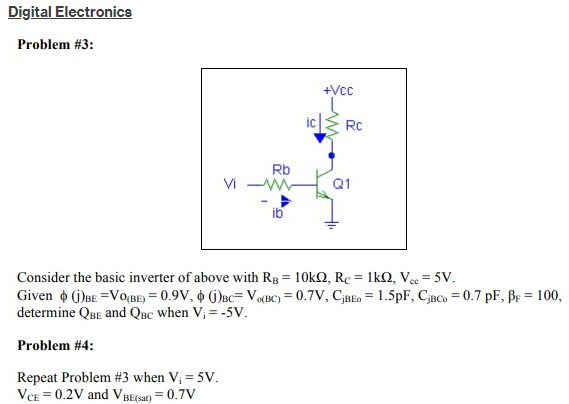

Digital Electronics Problem #3: +VCC ic Rc Rb Vi ww Q1 Consider the basic inverter of above with RB = 10k2, Rc = 1kQ, Vcc = 5V. == Given (j)BE =VO(BE) = 0.9V, (j)BC= Vo(BC) = 0.7V, CBE0 = 1.5pF, CjBco = 0.7 PF, BF = 100, determine QBE and QBC when V = -5V. Problem #4: Repeat Problem #3 when V = 5V. VCE = 0.2V and VBE(sat) = 0.7V E5-44B (Learning Objective 4: Using the aging approach to estimate bad debts) At December 31, before any year-end adjustments, the accounts receivable balance of Digital Electronics Company is 150,000. The allowance for doubtful accounts has a 6,800 credit balance. Digital Electronics Company prepares the following aging schedule for accounts receivable: Total Balance 1-30 Days 31-60 Days Age of Accounts 61-90 Days Over 90 Days $150,000 Estimated uncollectible 60,000 0.6% 50,000 30,000 10,000 4.0% 7.0% 40.0% I Requirements 1. Based on the aging of accounts receivable, is the unadjusted balance of the allowance account adequate? Too high? Too low? 2. Make the entry required by the aging schedule. Prepare a T-account for the allowance. 3. Show how Digital Electronics Company will report Accounts Receivable on its December 31 balance sheet. Digital Electronics Problem #3: +VCC ic Rc Rb Vi ww Q1 Consider the basic inverter of above with RB = 10k2, Rc = 1kQ, Vcc = 5V. == Given (j)BE =VO(BE) = 0.9V, (j)BC= Vo(BC) = 0.7V, CBE0 = 1.5pF, CjBco = 0.7 PF, BF = 100, determine QBE and QBC when V = -5V. Problem #4: Repeat Problem #3 when V = 5V. VCE = 0.2V and VBE(sat) = 0.7V E5-44B (Learning Objective 4: Using the aging approach to estimate bad debts) At December 31, before any year-end adjustments, the accounts receivable balance of Digital Electronics Company is 150,000. The allowance for doubtful accounts has a 6,800 credit balance. Digital Electronics Company prepares the following aging schedule for accounts receivable: Total Balance 1-30 Days 31-60 Days Age of Accounts 61-90 Days Over 90 Days $150,000 Estimated uncollectible 60,000 0.6% 50,000 30,000 10,000 4.0% 7.0% 40.0% I Requirements 1. Based on the aging of accounts receivable, is the unadjusted balance of the allowance account adequate? Too high? Too low? 2. Make the entry required by the aging schedule. Prepare a T-account for the allowance. 3. Show how Digital Electronics Company will report Accounts Receivable on its December 31 balance sheet.
