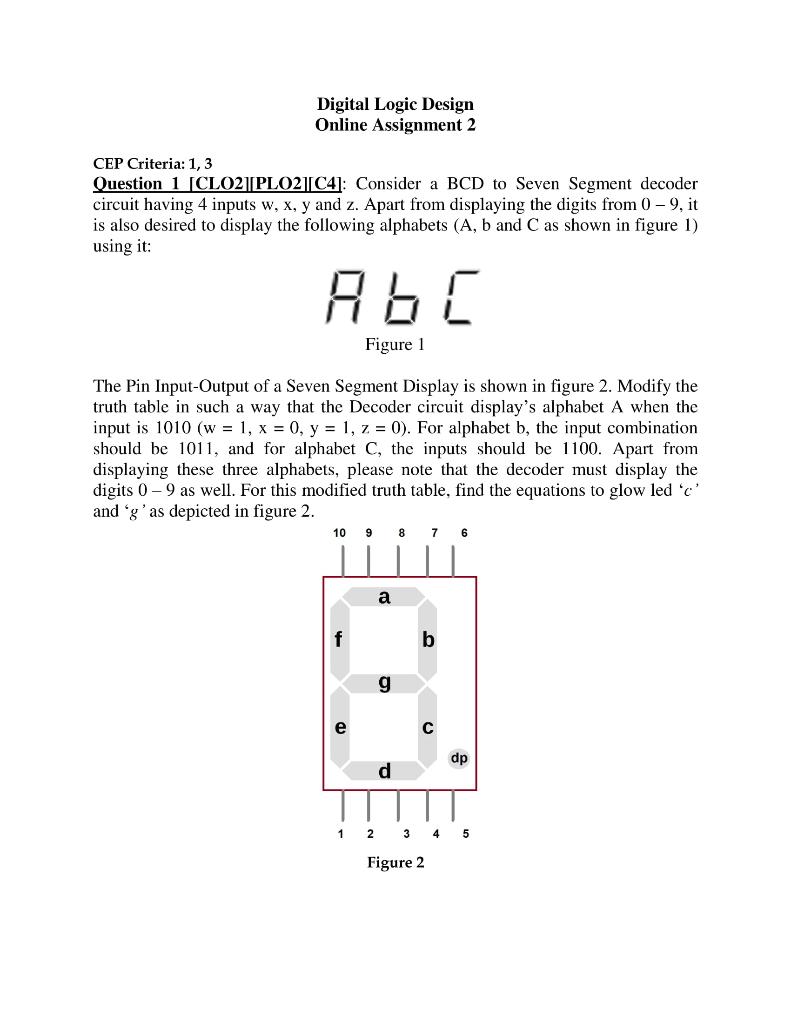

Digital Logic Design Online Assignment 2 CEP Criteria: 1,3 Question 1 [CLO2||PL02][C41: Consider a BCD to Seven Segment decoder circuit having 4 inputs w, x, y and z. Apart from displaying the digits from 0 - 9, it is also desired to display the following alphabets (A, b and C as shown in figure 1) using it: Abc Figure 1 The Pin Input-Output of a Seven Segment Display is shown in figure 2. Modify the truth table in such a way that the Decoder circuit display's alphabet A when the input is 1010 (w = 1, x = 0, y = 1, z = 0). For alphabet b, the input combination should be 1011, and for alphabet C, the inputs should be 1100. Apart from displaying these three alphabets, please note that the decoder must display the digits 0 - 9 as well. For this modified truth table, find the equations to glow led 'C' and 'g'as depicted in figure 2. 10 9 8 6 a f b e dp d 1 2 3 4 5 Figure 2
