Question: Direct Shear Stress . A support for a beam is made as shown in Figure P 4 - 1 . Determine the required thickness of

Direct Shear Stress

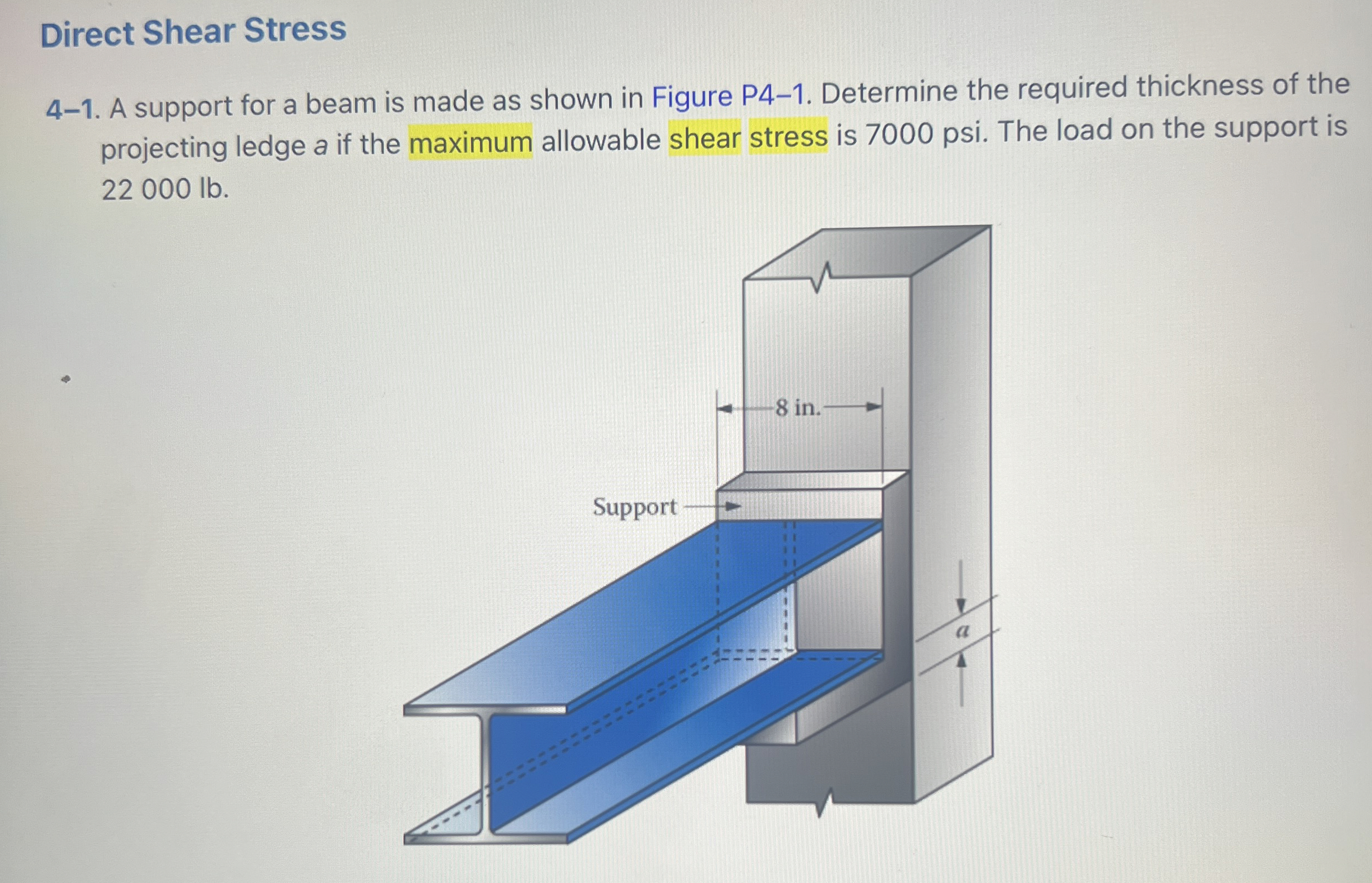

. A support for a beam is made as shown in Figure P4-1. Determine the required thickness of the Projecting ledge a if the maximum allowable shear stress is 7000 psi. The load on the support Is 22000 lb.
Direct Shear Stress . A support for a beam is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
