Question: Disassemble the 9S12 machine code listed below and single step through it by hand, completing the chart below. Write the disassembled instructions under the Disassembled

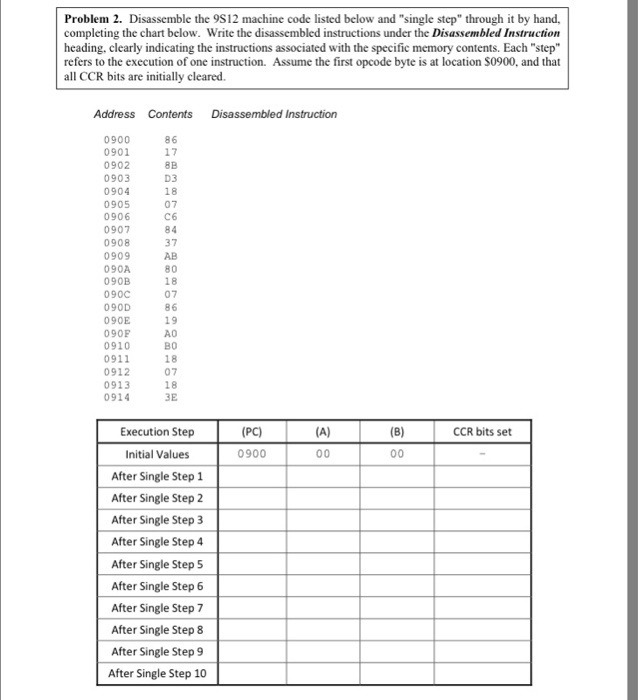

Disassemble the 9S12 machine code listed below and "single step" through it by hand, completing the chart below. Write the disassembled instructions under the Disassembled Instruction heading, clearly indicating the instructions associated with the specific memory contents. Each "step" refers to the execution of one instruction. Assume the first oppose byte is at location $0900. and that all CCR bits are initially cleared
