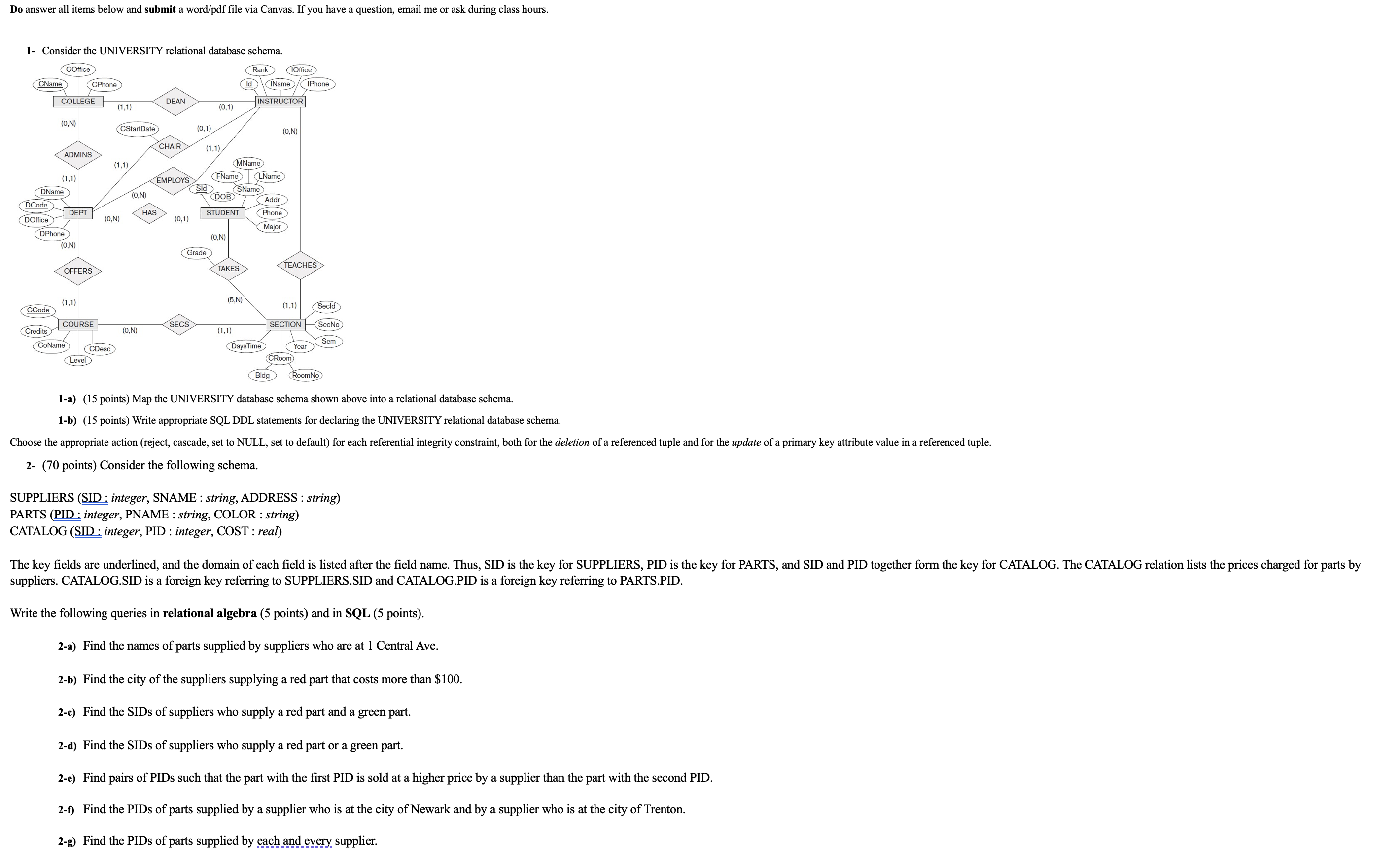

Do answer all items below and submit a word$/$pdf file via Canvas. If you have a question, email me or ask during class hours.

$1-$a$)(15$ points$)$ Map the UNIVERSITY database schema shown above into a relational database schema. $($DRAW RELATIONAL SCHEMA FOR QUESTION $1$A$)$

$1-$b$)(15$ points$)$ Write appropriate SQL DDL statements for declaring the UNIVERSITY relational database schema.

$2-(70$ points$)$ Consider the following schema.

SUPPLIERS $($SID : integer, SNAME : string, ADDRESS : string$)$

PARTS $($PID: integer, PNAME : string, COLOR : string$)$

CATALOG $($SID: integer, PID : integer, COST : real$)$

suppliers. CATALOG.SID is a foreign key referring to SUPPLIERS.SID and CATALOG.PID is a foreign key referring to PARTS.PID.

Write the following queries in relational algebra $(5$ points$)$ and in SQL $(5$ points$).$

$2-$a$)$ Find the names of parts supplied by suppliers who are at $1$ Central Ave.

$2-$b$)$ Find the city of the suppliers supplying a red part that costs more than $$100.$

$2-$c$)$ Find the SIDs of suppliers who supply a red part and a green part.

$2-$d$)$ Find the SIDs of suppliers who supply a red part or a green part.

$2-$e$)$ Find pairs of PIDs such that the part with the first PID is sold at a higher price by a supplier than the part with the second PID.

$2-$f$)$ Find the PIDs of parts supplied by a supplier who is at the city of Newark and by a supplier who is at the city of Trenton.

$2-$g$)$ Find the PIDs of parts supplied by each and every supplier.
