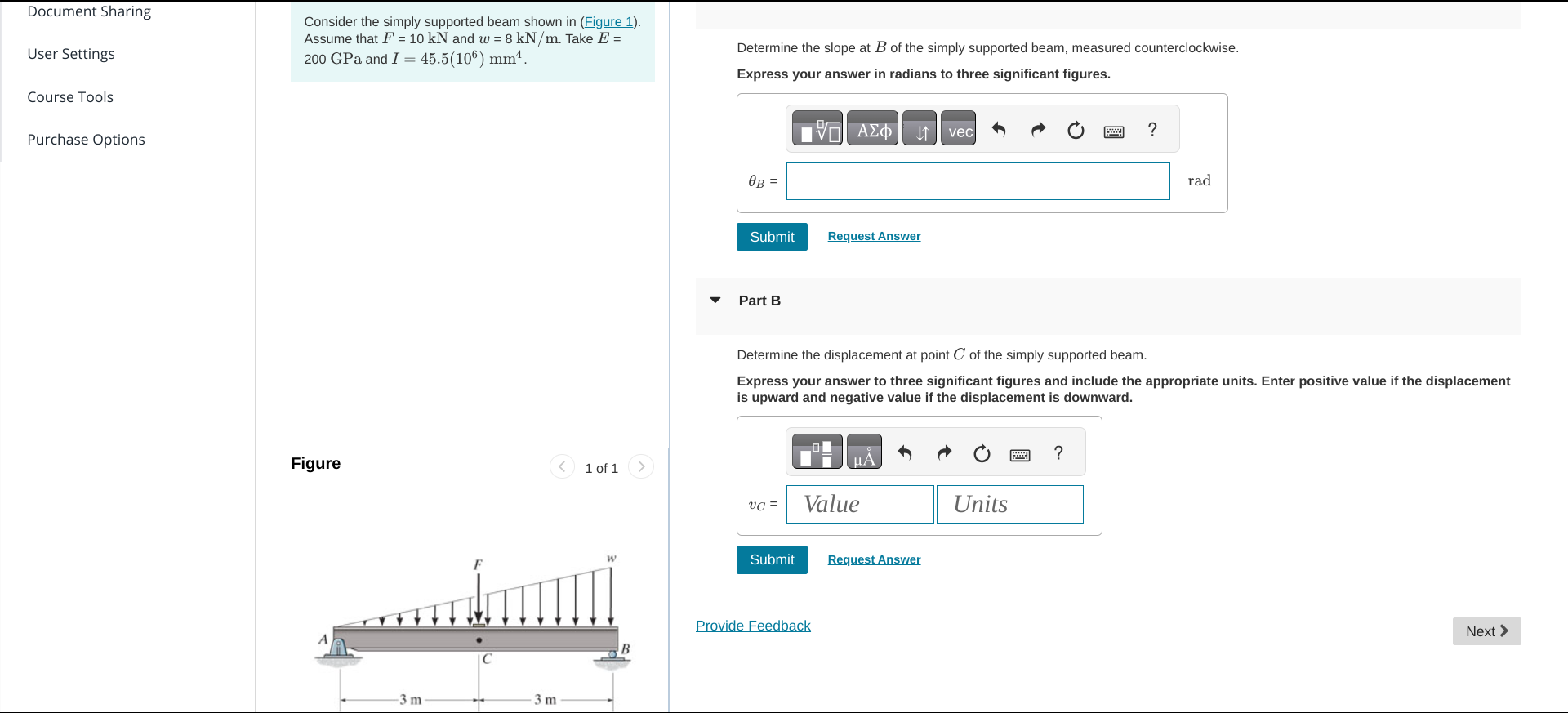

Consider the simply supported beam shown in $($Figure $1).$

Assume that $\backslash ($ F$=10\backslash$mathrm$\{$kN$\}\backslash )$ and $\backslash ($ w$=8\backslash$mathrm$\{$kN$\}/\backslash$mathrm$\{$m$\}\backslash ).$ Take $\backslash ($ E$=\backslash )200$ GPa and $\backslash ($ I$=45\mathrm{.}5\backslash$left$(10^\{6\}\backslash$right$)\backslash$mathrm$\{$mm$\}^\{4\}\backslash ).$

Determine the slope at $\backslash ($ B $\backslash )$ of the simply supported beam, measured counterclockwise.

Express your answer in radians to three significant figures.

Part B

Determine the displacement at point $\backslash ($ C $\backslash )$ of the simply supported beam.

Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is upward and negative value if the displacement is downward.

Request Answer
