Question: Draw a sequence diagram, which shows the interaction between your objects. The methods on your objects are the arrows between classes System Requirements: Classes, Attributes,
Draw a sequence diagram, which shows the interaction between your objects. The methods on your objects are the arrows between classes
System Requirements:

Classes, Attributes, Methods:

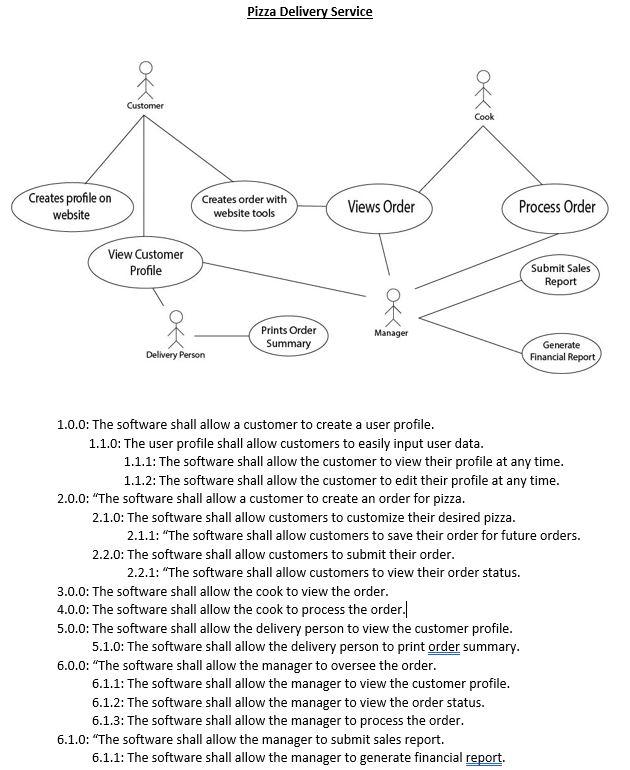

1.0.0: The software shall allow a customer to create a user profile. 1.1.0: The user profile shall allow customers to easily input user data. 1.1.1: The software shall allow the customer to view their profile at any time. 1.1.2: The software shall allow the customer to edit their profile at any time. 2.0.0: "The software shall allow a customer to create an order for pizza. 2.1.0: The software shall allow customers to customize their desired pizza. 2.1.1: "The software shall allow customers to save their order for future orders. 2.2.0: The software shall allow customers to submit their order. 2.2.1: "The software shall allow customers to view their order status. 3.0.0: The software shall allow the cook to view the order. 4.0.0: The software shall allow the cook to process the order. 5.0.0: The software shall allow the delivery person to view the customer profile. 5.1.0: The software shall allow the delivery person to print order summary. 6.0.0: "The software shall allow the manager to oversee the order. 6.1.1: The software shall allow the manager to view the customer profile. 6.1.2: The software shall allow the manager to view the order status. 6.1.3: The software shall allow the manager to process the order. 6.1.0: "The software shall allow the manager to submit sales report. 6.1.1: The software shall allow the manager to generate financial report. \begin{tabular}{|l|} \hline Report \\ \hline report_id \\ report_type \\ report_data \\ \hline generate_report() \\ \hline \end{tabular}
