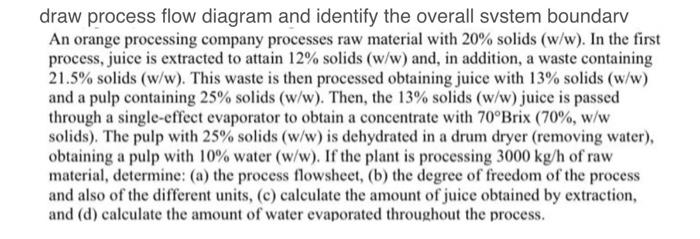

draw process flow diagram and identify the overall svstem boundarv An orange processing company processes raw material with 20% solids (w/w). In the first process, juice is extracted to attain 12% solids (w/w) and, in addition, a waste containing 21.5% solids (w/w). This waste is then processed obtaining juice with 13% solids (w/w) and a pulp containing 25% solids (w/w). Then, the 13% solids (w/w) juice is passed through a single-effect evaporator to obtain a concentrate with 70 Brix (70%,w/w solids). The pulp with 25% solids (w/w) is dehydrated in a drum dryer (removing water), obtaining a pulp with 10% water (w/w). If the plant is processing 3000kg/h of raw material, determine: (a) the process flowsheet, (b) the degree of freedom of the process and also of the different units, (c) calculate the amount of juice obtained by extraction, and (d) calculate the amount of water evaporated throughout the process. draw process flow diagram and identify the overall svstem boundarv An orange processing company processes raw material with 20% solids (w/w). In the first process, juice is extracted to attain 12% solids (w/w) and, in addition, a waste containing 21.5% solids (w/w). This waste is then processed obtaining juice with 13% solids (w/w) and a pulp containing 25% solids (w/w). Then, the 13% solids (w/w) juice is passed through a single-effect evaporator to obtain a concentrate with 70 Brix (70%,w/w solids). The pulp with 25% solids (w/w) is dehydrated in a drum dryer (removing water), obtaining a pulp with 10% water (w/w). If the plant is processing 3000kg/h of raw material, determine: (a) the process flowsheet, (b) the degree of freedom of the process and also of the different units, (c) calculate the amount of juice obtained by extraction, and (d) calculate the amount of water evaporated throughout the process
