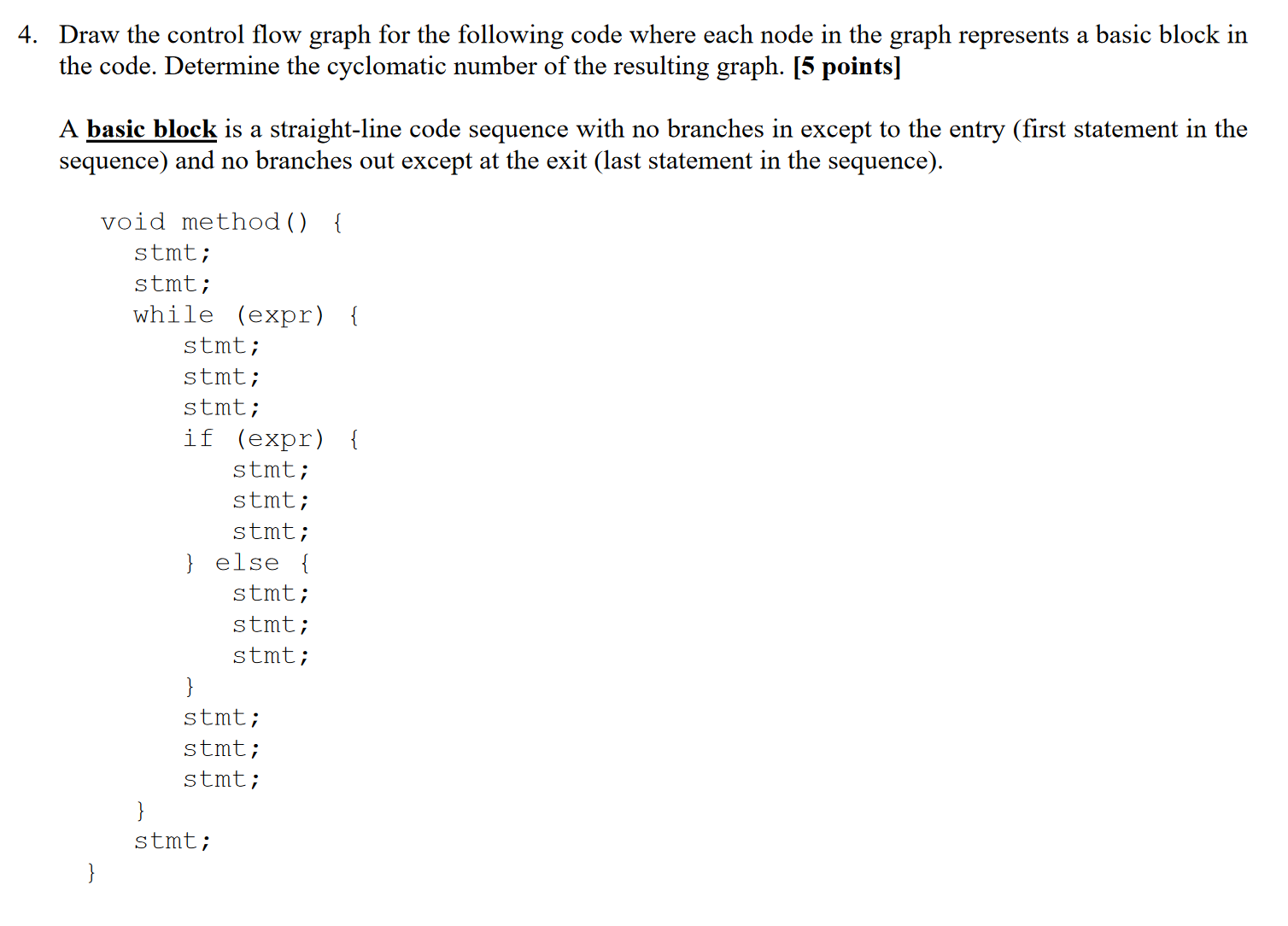

Draw the control flow graph for the following code where each node in the graph represents a basic block in

the code. Determine the cyclomatic number of the resulting graph. $[5$ points$]$

A basic block is a straight$-$line code sequence with no branches in except to the entry $($first statement in the

sequence$)$ and no branches out except at the exit $($last statement in the sequence$).$
