Question: Draw the influence lines for ( a ) the vertical reaction at A , ( b ) the vertical reaction at B , ( c

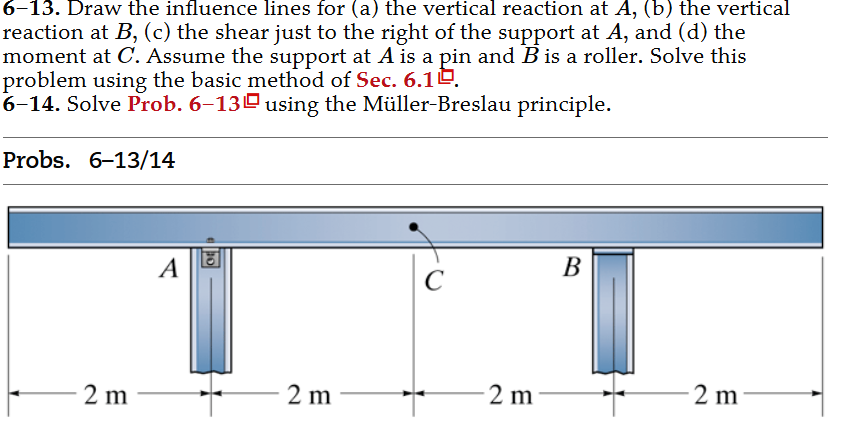

Draw the influence lines for (a) the vertical reaction at A,(b) the vertical reaction at B,(c) the shear just to the right of the support at A, and (d) the moment at C. Assume the support at A is a pin and B is a roller. Solve this problem using the Mller-Breslau principle. Only solve with Muller Breslau Equation.
Draw the influence lines for ( a ) the vertical

Step by Step Solution

There are 3 Steps involved in it
