Question: Draw the Project Network for the following activities identify : ES,EF,LS,LF, Slack, Critical Activites for each. 1) Act. Pred. Duration 2 A B 6 4

Draw the Project Network for the following

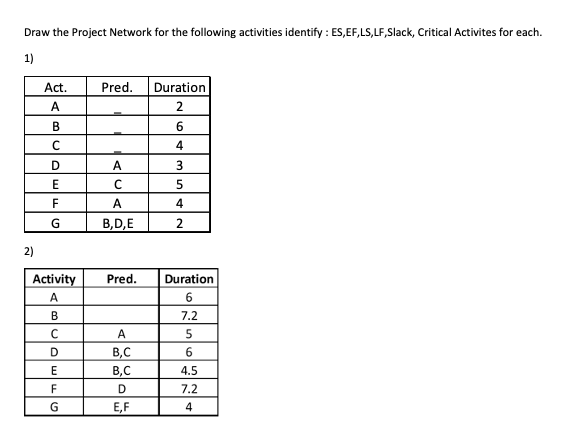

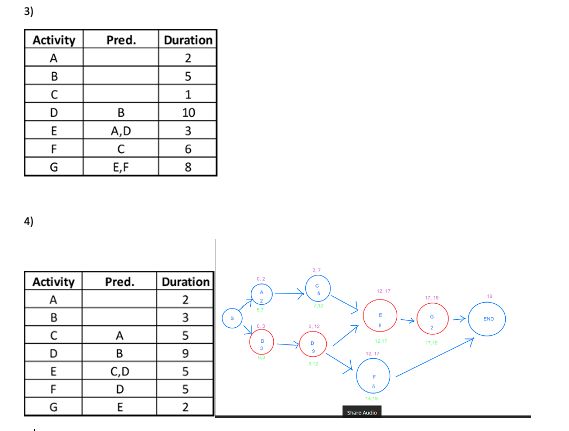

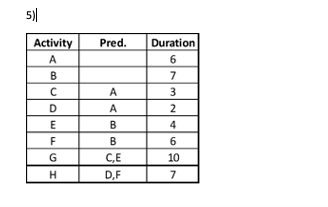

Draw the Project Network for the following activities identify : ES,EF,LS,LF, Slack, Critical Activites for each. 1) Act. Pred. Duration 2 A B 6 4 D 3 5 E F B,D,E 4 G 2 2) Pred. Activity B D Duration 6 7.2 5 6 4.5 7.2 4 A B,C B,C D E,F E F 3) Pred. Activity B D Duration 2 5 1 10 3 6 E F B AD E.F G 8 Pred. 1219 Activity A B END 1217 B Duration 2 3 5 9 5 5 2 D E F CD D E G 5) Pred. Activity A Duration 6 B 7 3 2 D E F A A B B CE DF 4 6 10 7 G H

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
