drawing diagram in a paper please

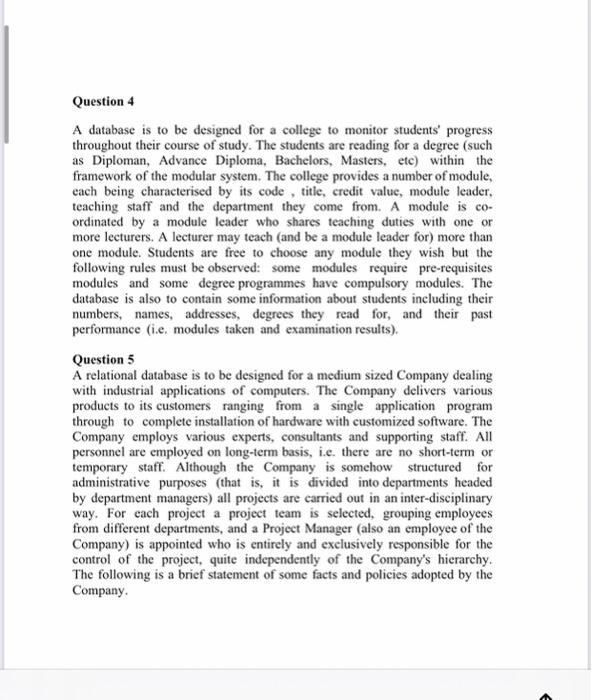

Question 4 A database is to be designed for a college to monitor students' progress throughout their course of study. The students are reading for a degree (such as Diploman, Advance Diploma, Bachelors, Masters, etc) within the framework of the modular system. The college provides a number of module, each being characterised by its code , title, credit value, module leader, teaching staff and the department they come from. A module is co- ordinated by a module leader who shares teaching duties with one or more lecturers. A lecturer may teach (and be a module leader for) more than one module. Students are free to choose any module they wish but the following rules must be observed: some modules require pre-requisites modules and some degree programmes have compulsory modules. The database is also to contain some information about students including their numbers, names, addresses, degrees they read for, and their past performance (i.e. modules taken and examination results). Question 5 A relational database is to be designed for a medium sized Company dealing with industrial applications of computers. The Company delivers various products to its customers ranging from a single application program through to complete installation of hardware with customized software. The Company employs various experts, consultants and supporting staff. All personnel are employed on long-term basis, i.e. there are no short-term or temporary staff. Although the Company is somehow structured for administrative purposes (that is, it is divided into departments headed by department managers) all projects are carried out in an inter-disciplinary way. For each project a project team is selected, grouping employees from different departments, and a Project Manager (also an employee of the Company) is appointed who is entirely and exclusively responsible for the control of the project, quite independently of the Company's hierarchy. The following is a brief statement of some facts and policies adopted by the Company
