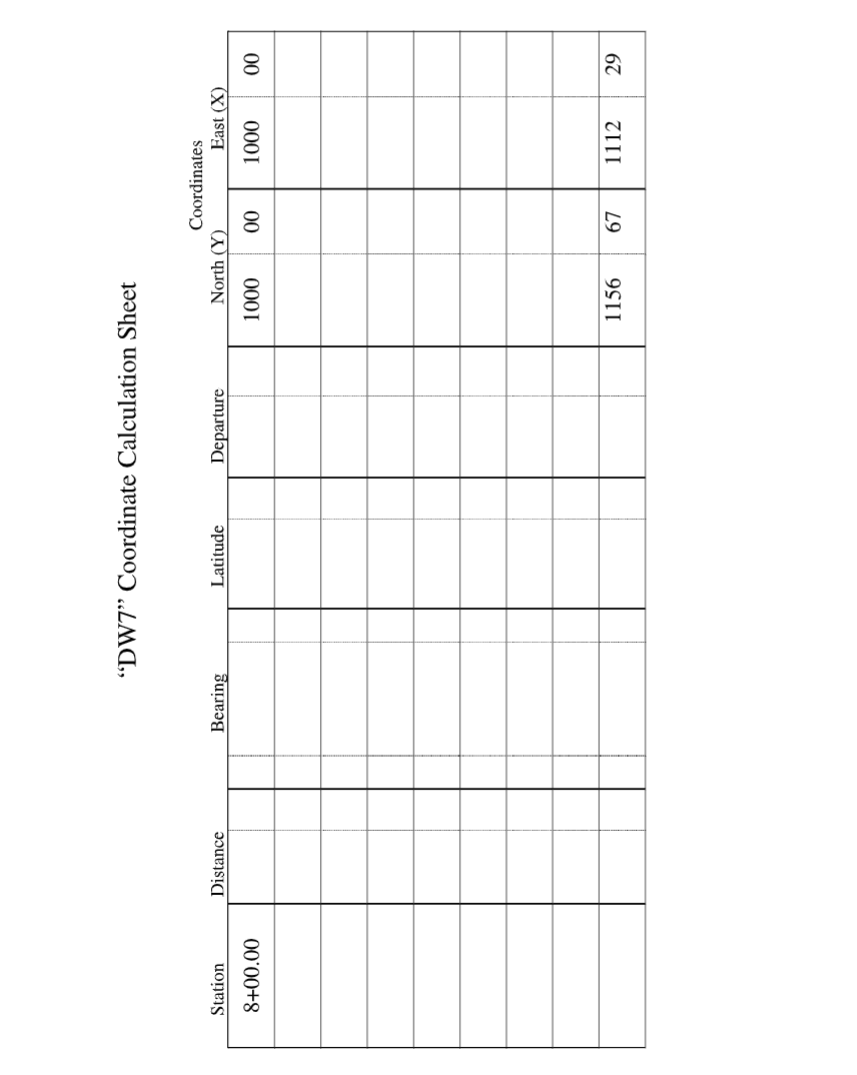

$"$DW$7"$ Coordinate Calculation Sheet

Calculate the alignment traverse on $"$DW $7"$ from station $8+00$ to the

$"$SFR$".($use the coordinate sheet provided to show all calculations$).$ Use

the beginning coordinates of N $1000\mathrm{.}00$ and E $1000\mathrm{.}00$ at station $8+00$

and the ending coordinates where $"$DW $7"$ and the $"$SFR$"$ intersect are

N $1156\mathrm{.}67$ E $1112.29.(\mathrm{.}000).$

Calculate the Long Chord $($LC$)$ and External $($E$)$ of curve $"5"$ on $"$DW$7".$

Calculate the elevations on centerline $($profile grade$)"$DW$7"$ on stations

$8+00,8+50,9+00,$ and $9+75.$

What is the edge of pavement grade at $9+15?$

DRIVEWAY

Snippin

Screenshot

Automatic

Can you make sure to plug the values into the table. So I can see them on the table. Thank you.
