Question: dynamics QUESTION 1 ( a ) Based on Figure Q 1 ( a ) , rod AB rotates clockwise with A B = 5 r

dynamics
QUESTION 1(a)

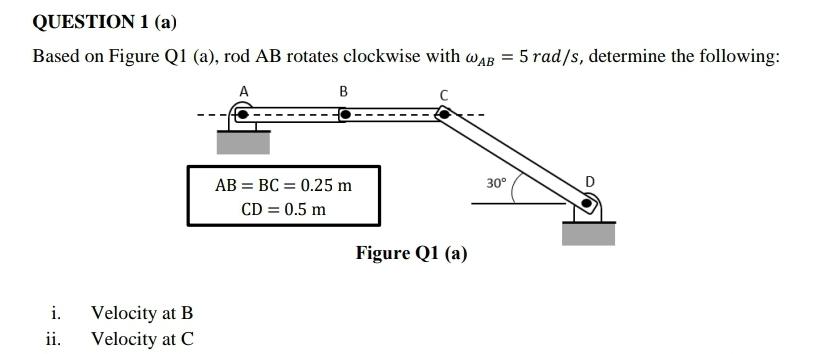

Based on Figure Q1(a), rod AB rotates clockwise with AB=5rads, determine the following:
Figure Q1(a)
i. Velocity at B
ii. Velocity at C
dynamics QUESTION 1(a) Based on Figure Q1(a), rod AB rotates clockwise

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
