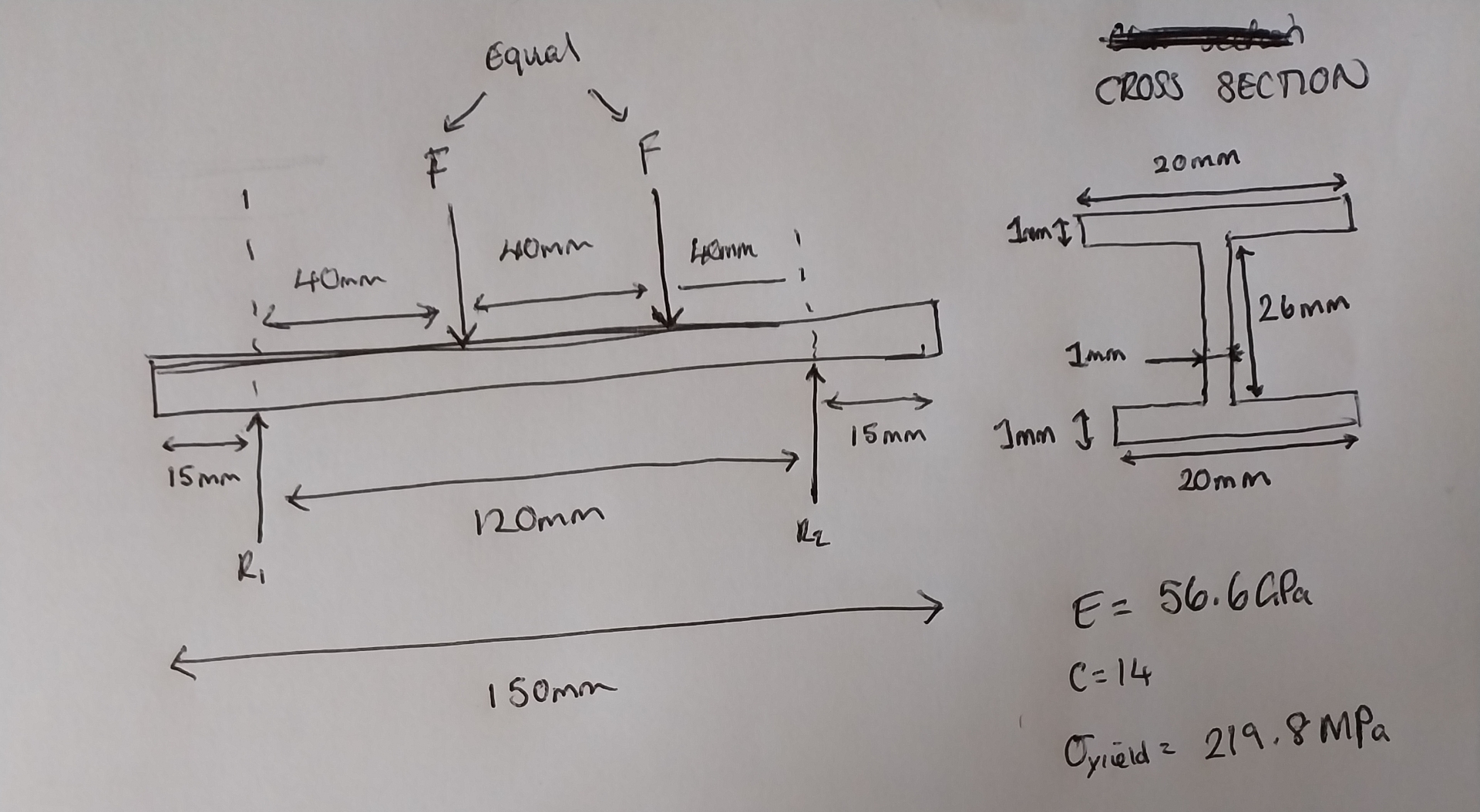

Question: E = 5 6 . 6 Claa C = 1 4 y i e i d d = 2 1 9 . 8 MPa calculate

E=56.6Claa
C=14
yieidd=219.8MPa
calculate moment of inertia?
calculate max bending moment
calculatemaxx force at each of the force points
calculate deflection force point 1 and 2 and calculate max deflection on the beam
c
E = 5 6 . 6 Claa C = 1 4 y i e i d d = 2 1 9 . 8
