Question: E 9 . 9 Determine Z L for maximum average power transfer and the value of the maximum average power transferred to Z L in

E9.9 Determine ZL for maximum average power transfer and the value of the maximum average power transferred to ZL in Fig. E9.9.

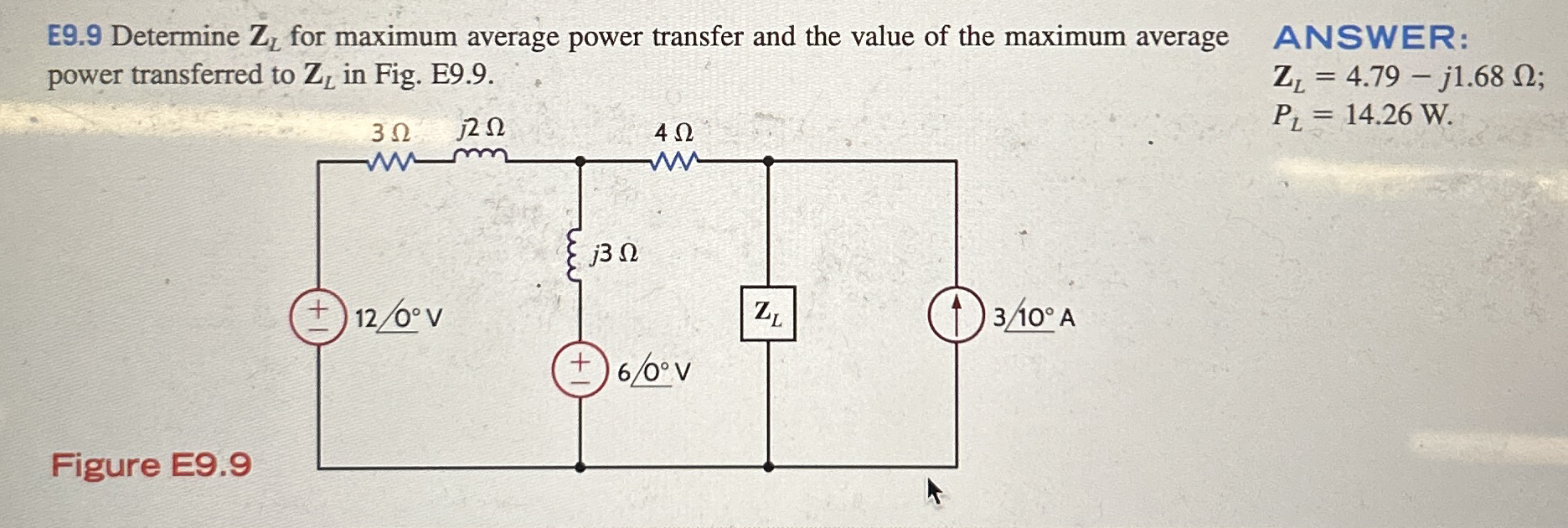

Figure E9.9
ANSWER:
ZL=4.79-j1.68;
PL=14.26W.
