Question: e ) A smooth concrete - lined channel has trapezoidal cross - section with base width 6 m and sides of slope 1 V :

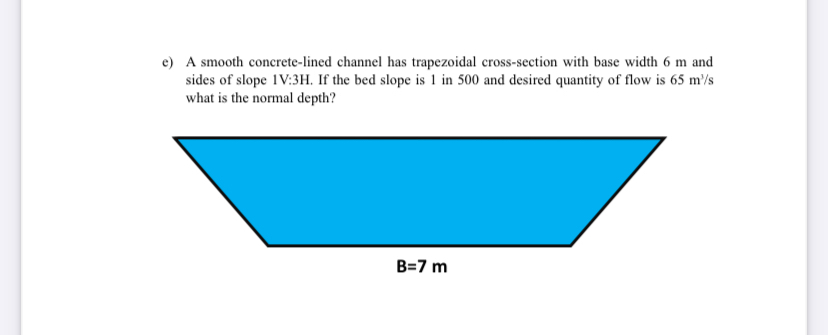

e) A smooth concrete-lined channel has trapezoidal cross-section with base width 6 m and sides of slope 1V:3H. If the bed slope is 1 in 500 and desired quantity of flow is 65m3s what is the normal depth?
e ) A smooth concrete - lined channel has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
