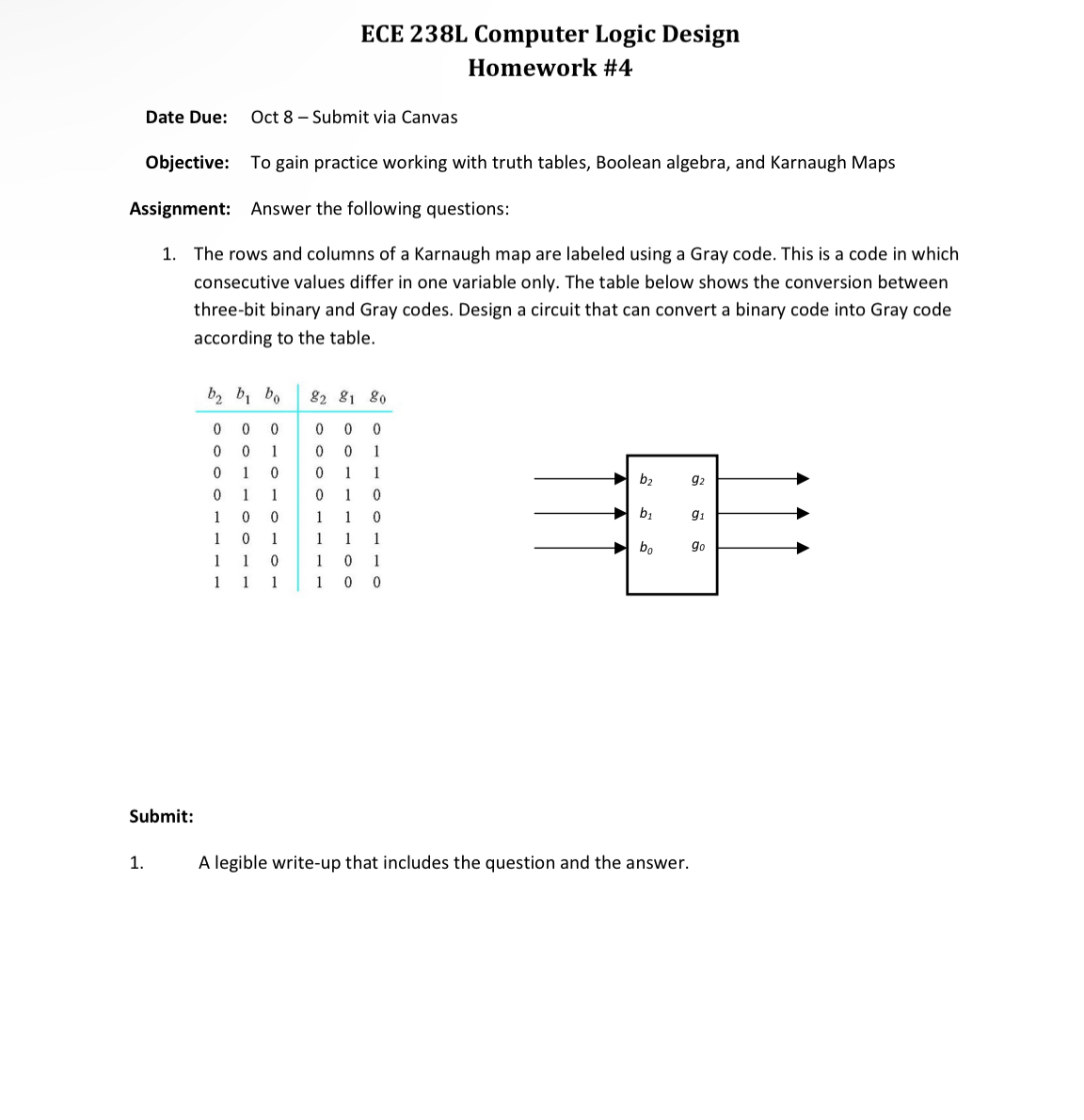

ECE $238$L Computer Logic Design

Homework #$4$

Date Due: Oct $8-$ Submit via Canvas

Objective: To gain practice working with truth tables, Boolean algebra, and Karnaugh Maps

Assignment: Answer the following questions:

The rows and columns of a Karnaugh map are labeled using a Gray code. This is a code in which

consecutive values differ in one variable only. The table below shows the conversion between

three$-$bit binary and Gray codes. Design a circuit that can convert a binary code into Gray code

according to the table.

Submit:

A legible write$-$up that includes the question and the answer.
