Question: EE 463 POWER SYSTEM ANALYSIS I DESIGN PROJECT IMPORTANT NOTE: This homework is due January 5th Tuesday. Each student shall present his work online in

EE 463 POWER SYSTEM ANALYSIS I DESIGN PROJECT IMPORTANT NOTE: This

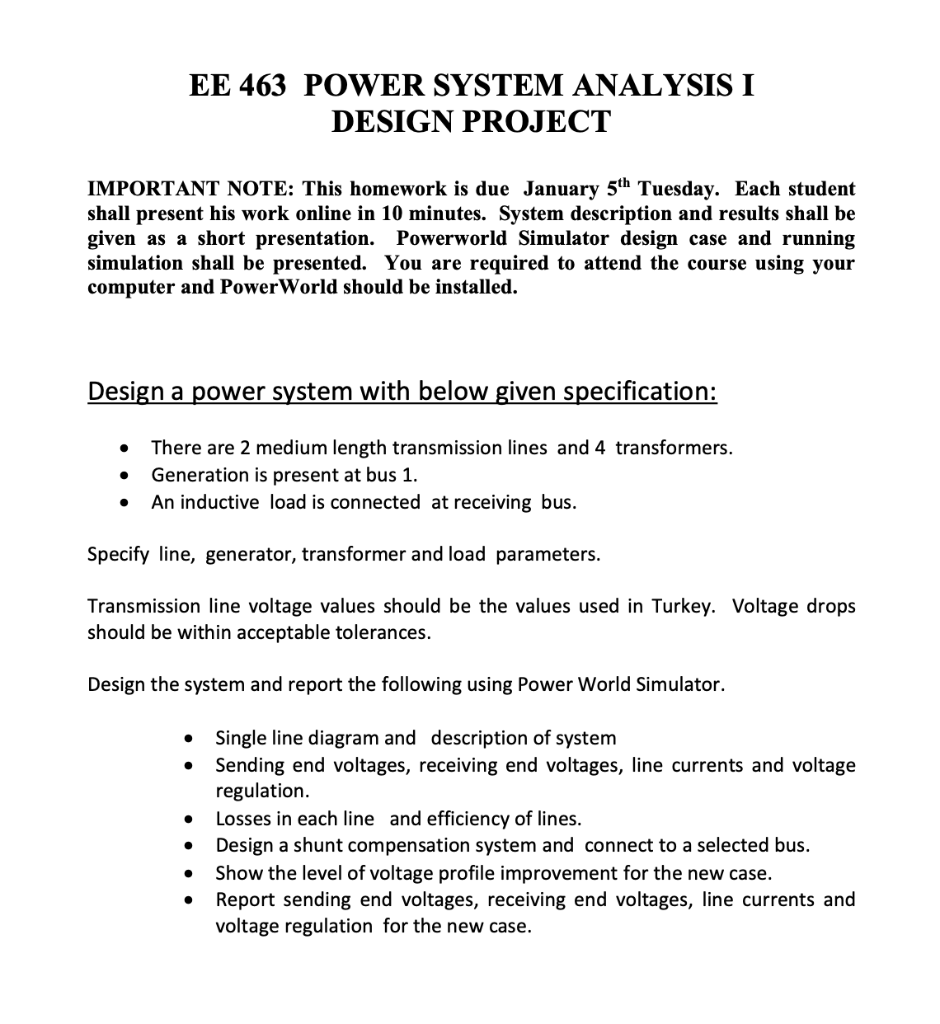

EE 463 POWER SYSTEM ANALYSIS I DESIGN PROJECT IMPORTANT NOTE: This homework is due January 5th Tuesday. Each student shall present his work online in 10 minutes. System description and results shall be given as a short presentation. Powerworld Simulator design case and running simulation shall be presented. You are required to attend the course using your computer and PowerWorld should be installed. Design a power system with below given specification: . There are 2 medium length transmission lines and 4 transformers. Generation is present at bus 1. An inductive load is connected at receiving bus. . Specify line, generator, transformer and load parameters. Transmission line voltage values should be the values used in Turkey. Voltage drops should be within acceptable tolerances. Design the system and report the following using Power World Simulator. . . Single line diagram and description of system Sending end voltages, receiving end voltages, line currents and voltage regulation. Losses in each line and efficiency of lines. Design a shunt compensation system and connect to a selected bus. Show the level of voltage profile improvement for the new case. Report sending end voltages, receiving end voltages, line currents and voltage regulation for the new case

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
