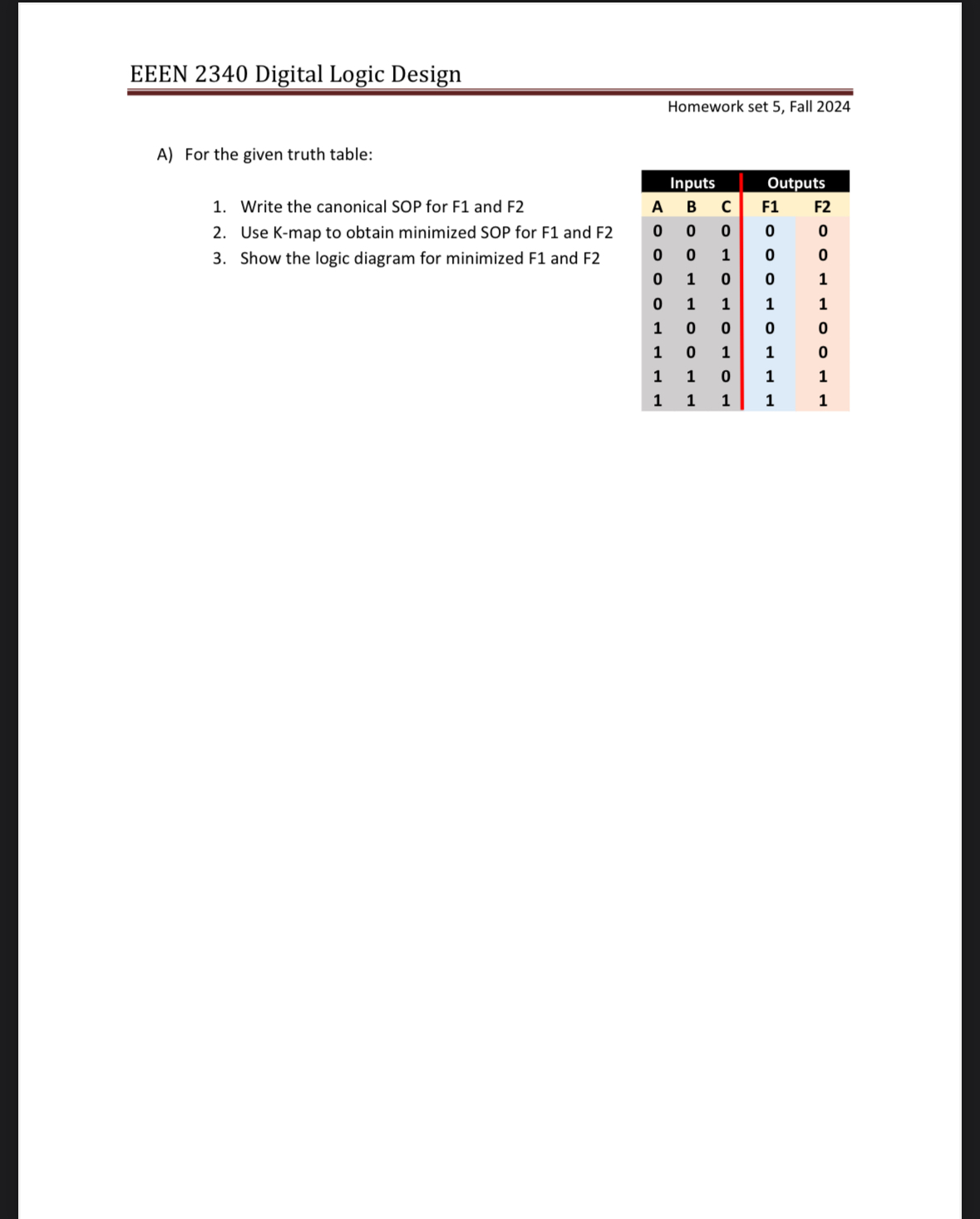

EEEN $2340$ Digital Logic Design

Homework set $5,$ Fall $2024$

Please explain how to get the answers:$)$

A$)$ For the given truth table:

Write the canonical SOP for F$1$ and F$2$

Use K$-$map to obtain minimized SOP for F$1$ and F$2$

Show the logic diagram for minimized F$1$ and F$2$

$\backslash$table$[[$Inputs$,$Outputs$],[$A$,$B$,$C$,$F$1,$F$2],[0,0,0,0,0],[0,0,1,0,0],[0,1,0,0,1],[0,1,1,1,1],[1,0,0,0,0],[1,0,1,1,0],[1,1,0,1,1],[1,1,1,1,1]]$
