ELECTRICAL ENGINEERING $-$ TEL$20104/$TEL$20803$

QUESTION:

Thevenin's Theorem utilizes a voltage source, while Norton's Theorem uses a current source. Norton's Theorem employs a resistor set in parallel over the source, whereas Thevenin's Theorem utilizes a resistor in series. From Thevenin's Theorem, Norton's Theorem can be easily derived.

Solve the following:

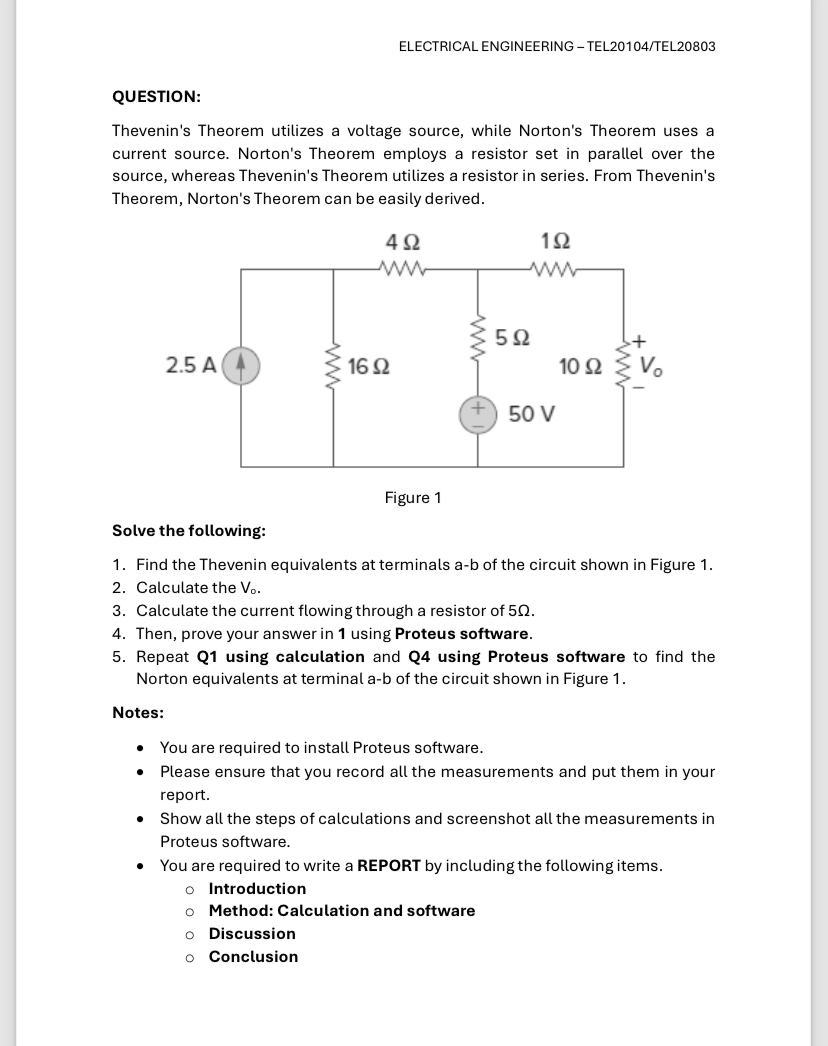

Find the Thevenin equivalents at terminals $a-b$ of the circuit shown in Figure $1.$

Calculate the $V_o.$

Calculate the current flowing through a resistor of $5.$

Then, prove your answer in $1$ using Proteus software.

Repeat Q$1$ using calculation and Q$4$ using Proteus software to find the Norton equivalents at terminal a$-$b of the circuit shown in Figure $1.$

Notes:

You are required to install Proteus software.

Please ensure that you record all the measurements and put them in your report.

Show all the steps of calculations and screenshot all the measurements in Proteus software.

You are required to write a REPORT by including the following items.

Introduction

Method: Calculation and software

Discussion

Conclusion
