Question: element 2=1m elememt 3= square root of 2. Question 1: For the following truss, find the reactions and displacements at all supports. Assume EA =

element 2=1melememt 3= square root of 2. Question 1: For the

element 2=1m

elememt 3= square root of 2.

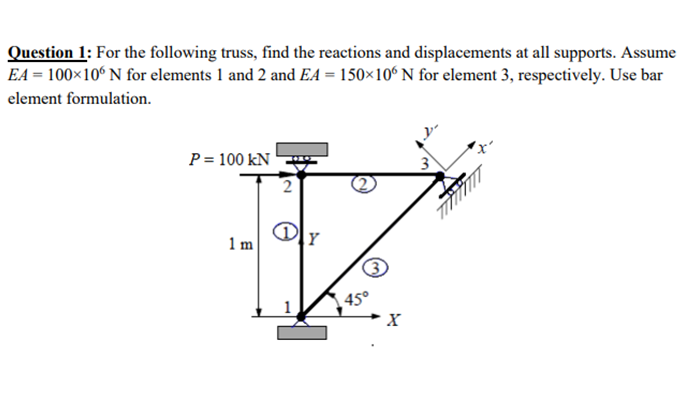

Question 1: For the following truss, find the reactions and displacements at all supports. Assume EA = 100*10N for elements 1 and 2 and EA = 150x10N for element 3, respectively. Use bar element formulation. P= 100 KN 3 2 1 m Y 45 X Question 1: For the following truss, find the reactions and displacements at all supports. Assume EA = 100*10N for elements 1 and 2 and EA = 150x10N for element 3, respectively. Use bar element formulation. P= 100 KN 3 2 1 m Y 45 X

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
