Civil Engineering Questions and Answers March 04, 2020

Expert-verified solutions to help you succeed

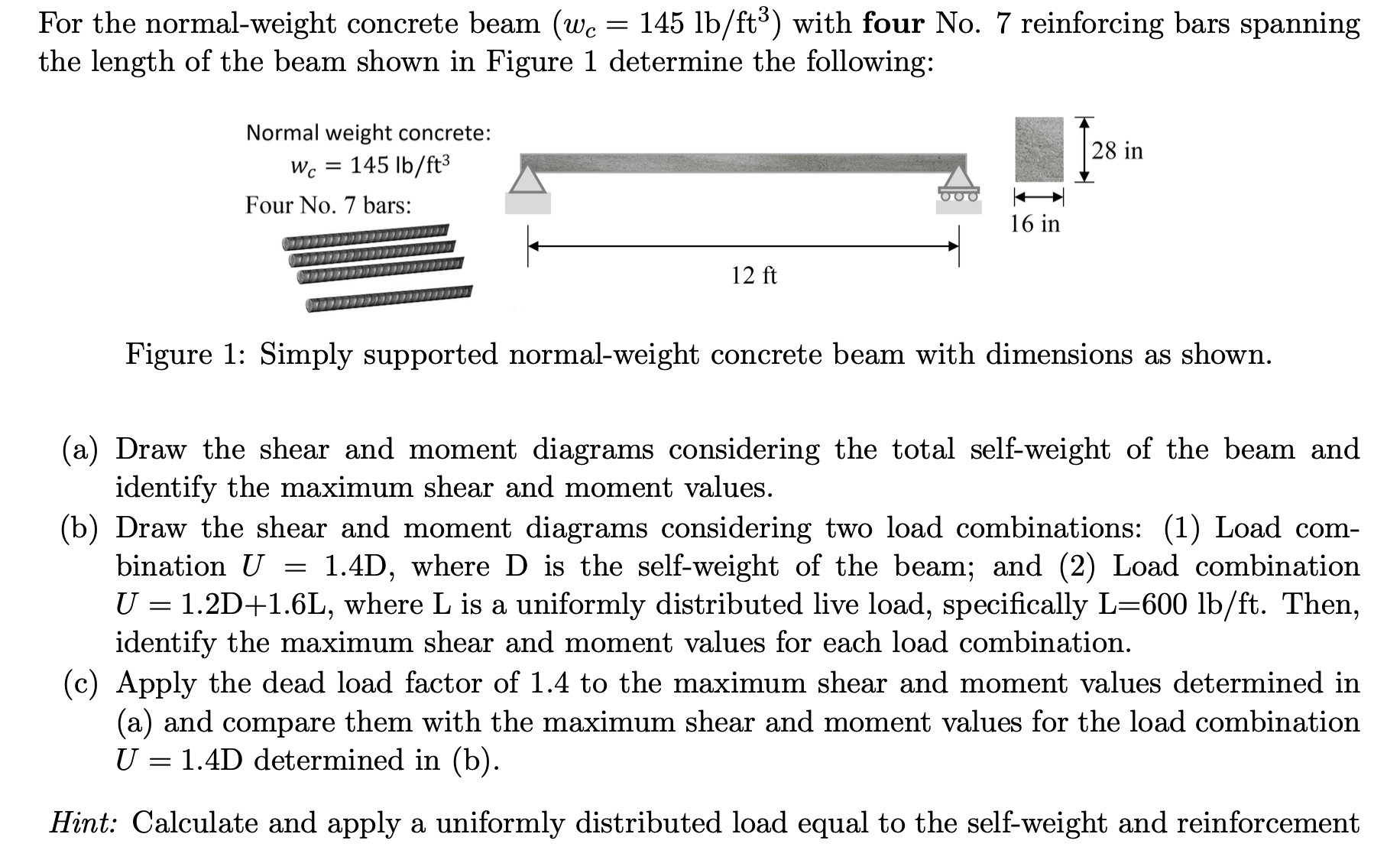

Figure 1 : Simply supported normal - weight concrete beam with dimensions as shown. ( a ) Draw the shear and moment diagrams considering the total self - weight of the beam and identify the maximum shear and moment values. ( b ) Draw the shear and moment diagrams considering two load combinations: ( 1 ) Load com - bination U = 1 . 4 D , where D is
Figure 1 : Simply supported normal - weight

Civil How can intermediate structures assist in the analysis of dynamic response of structures?

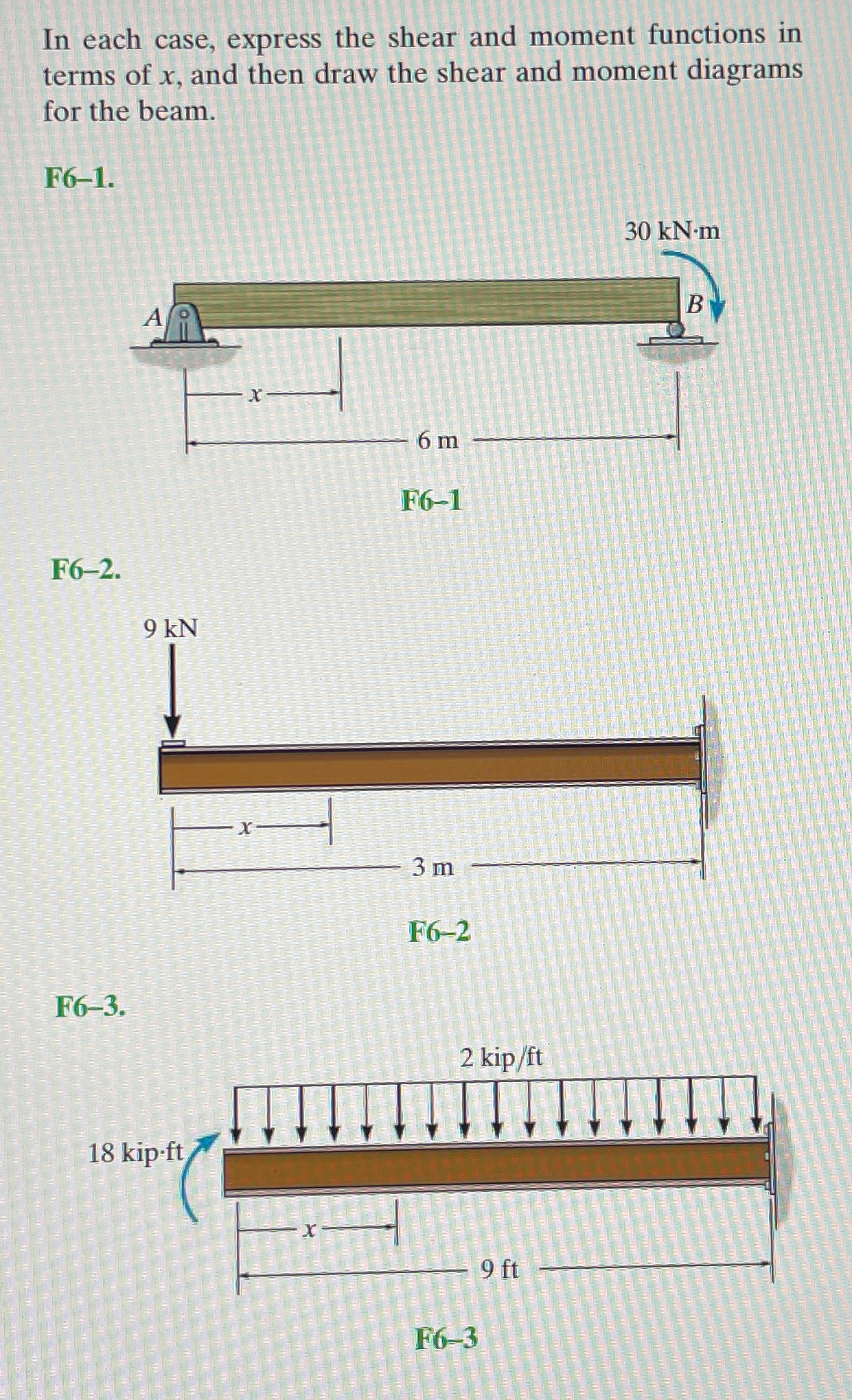

In each case, express the shear and moment functions in terms of x , and then draw the shear and moment diagrams for the beam. F 6 - 3 ONLY
In each case, express the shear and moment

COMPLETE THE SECTION DRAWING BELOW ( 6 POINTS )
COMPLETE THE SECTION DRAWING BELOW ( 6 POINTS )

Which of the following factors does NOT influence the design of an axially loaded column in civil engineering? A ) Material properties B ) Column geometry C ) Environmental conditions D ) Loading conditions

What are the settings on a motor cutout switch? ( MCOS )

. Discuss the principles behind soil stabilization techniques for improving the bearing capacity of foundations in expansive clay soils, emphasizing long - term effectiveness and environmental sustainability.

Engineers assess liquefaction risk through soil tests and historical data. Loose, saturated soils are most prone. To mitigate risks, engineers may avoid such areas, improve soil density, design special foundations, or install drainage systems. Consulting a geotechnical engineer is key for effective mitigation.

Dry density of the soil = 1 8 kN / m ^ 3 Saturation unit weight of soil = 2 1 kN / m ^ 3 Average internal angle of friction = 3 0 \ deg Average cohesion strength ( C ) = 1 6 kN / m ^ 2 Unit weight of water = 1 0 kN / m ^ 3 Let's address each question sequentially: Question a ) Calculate and draw the seepage line inside the dam when the reservoir

For CR1.3 Reduce Air Pollutant Emissions, an Enhanced level of achievement would require what documentation? A: Design documents that illustrate the processes in place to identify and address changes in air pollutant emissions B: A study showing that air pollution controls are within the 95th percentile C: An assessment leading to the selection of

What are the different types of foundation systems used in civil engineering, and when would you use each?

. Discuss the environmental impact assessment process for infrastructure projects and its role in sustainable development.

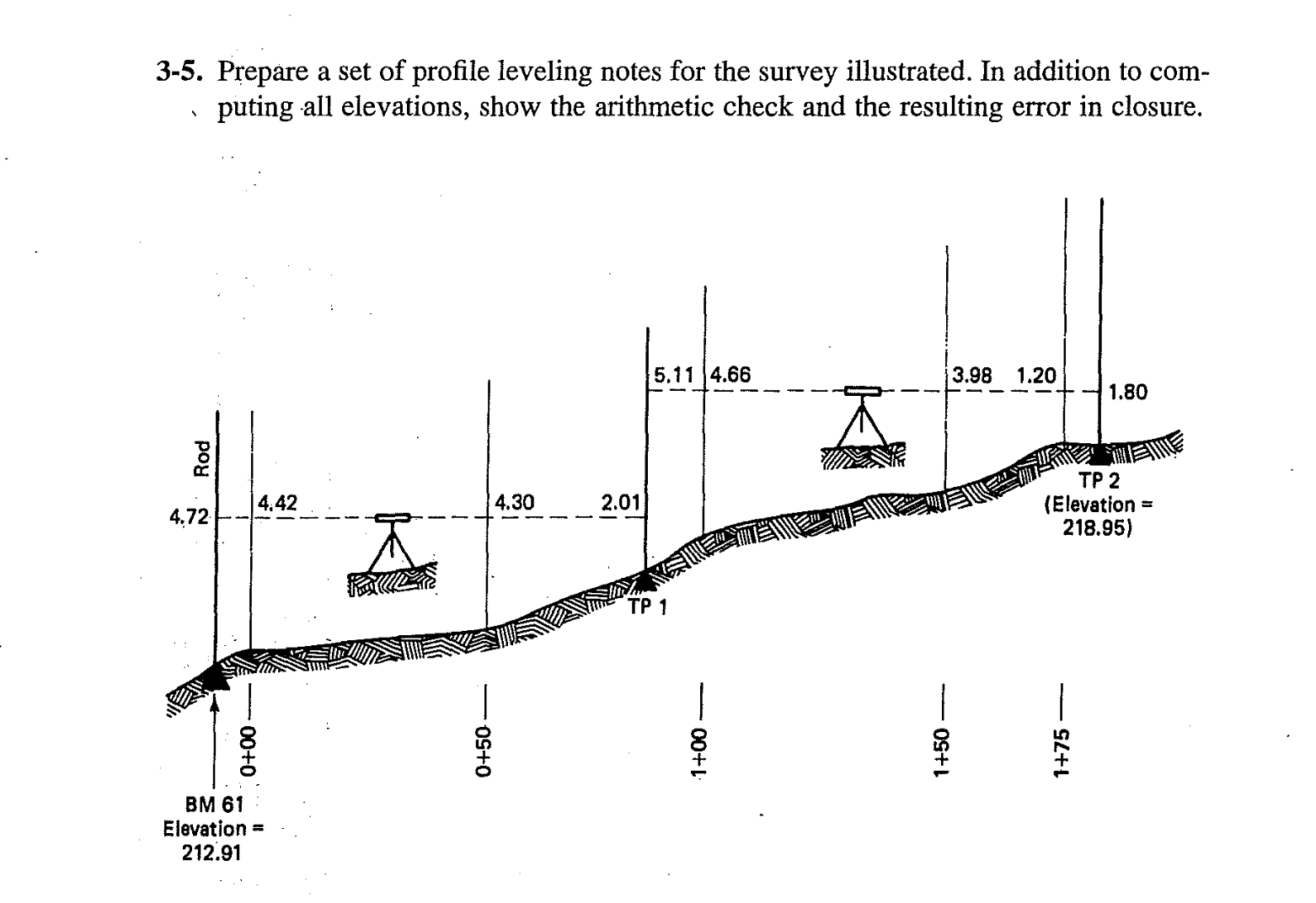

3 - 5 . Prepare a set of profile leveling notes for the survey illustrated. In addition to com - puting all elevations, show the arithmetic check and the resulting error in closure.
3 - 5 . Prepare a set of profile leveling notes

help asap please Problem 1 5 - 3 1 5 - 3 . The following system consists of components with the indicated nonfailure probabilities: Use the reliability values of A to F given in Problem 1 5 - 8 , and shown below. 1 5 - 2 1 For the data provided in Problem 1 5 - 3 , determine ( a ) minimum length of crest vertical curves, ( b ) minimum length of
help asap please Problem 1 5 - 3 1 5 - 3 . The

Consider the frame shown in . Use the portal method of analysis. Follow the sign convention. Part A Draw ( approximately ) the moment diagram for the girder EFGH. Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note - You should not draw an "extra" vertical line at
Consider the frame shown in . Use the portal

Question 9 0 1 5 pts Clear Zone A two - lane highway has the following: AADT of 6 0 0 0 vehicle per day Design speed of 5 5 m p h The highway has a 4 - foot paved shoulder A line of power poles is located 1 0 - feet from the paved shoulder on the 2 0 % backslope of the roadside ditch. In order to meet the AASHTO - recommended minimum clear zone,
Question 9 0 1 5 pts Clear Zone A two - lane

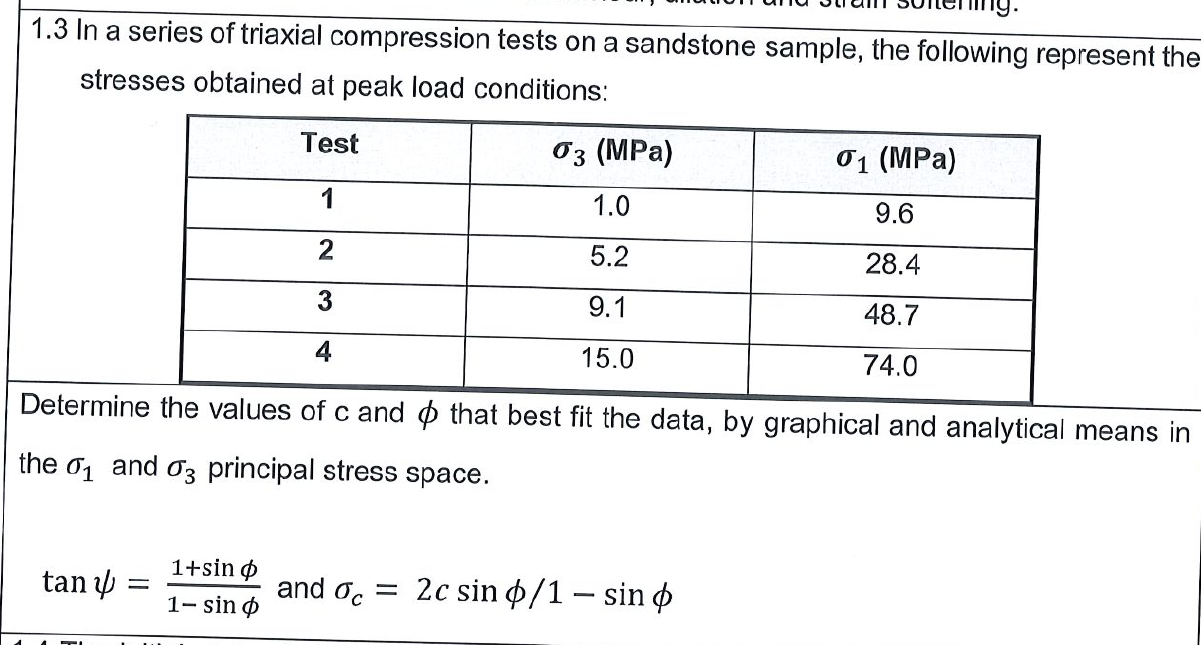

1 . 3 In a series of triaxial compression tests on a sandstone sample, the following represent the stresses obtained at peak load conditions: Determine the values of c and that best fit the data, by graphical and analytical means in the 1 and 3 principal stress space. t a n = 1 + s i n 1 - s i n and c = 2 csin 1 - s i n
1 . 3 In a series of triaxial compression tests

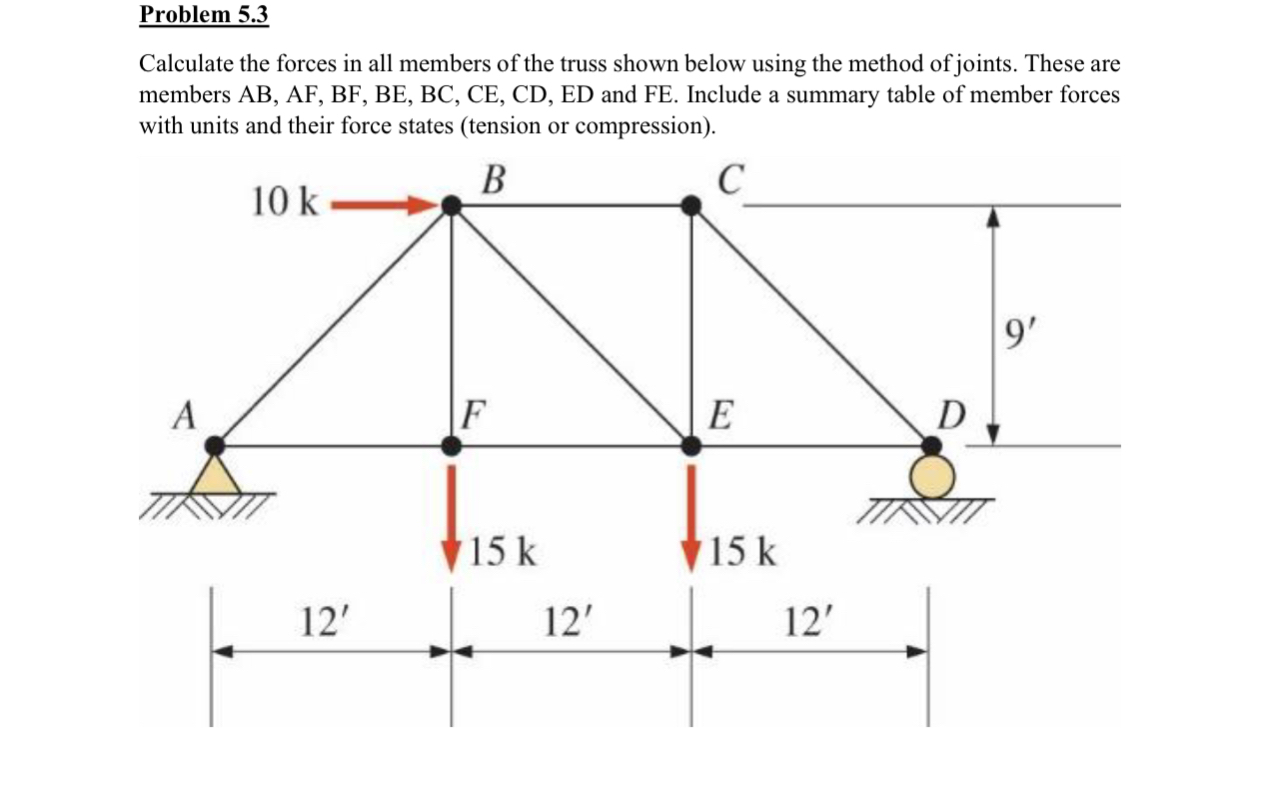

Problem 5 . 3 Calculate the forces in all members of the truss shown below using the method of joints. These are members A B , A F , B F , B E , B C , C E , C D , E D and FE . Include a summary table of member forces with units and their force states ( tension or compression ) .
Problem 5 . 3 Calculate the forces in all members

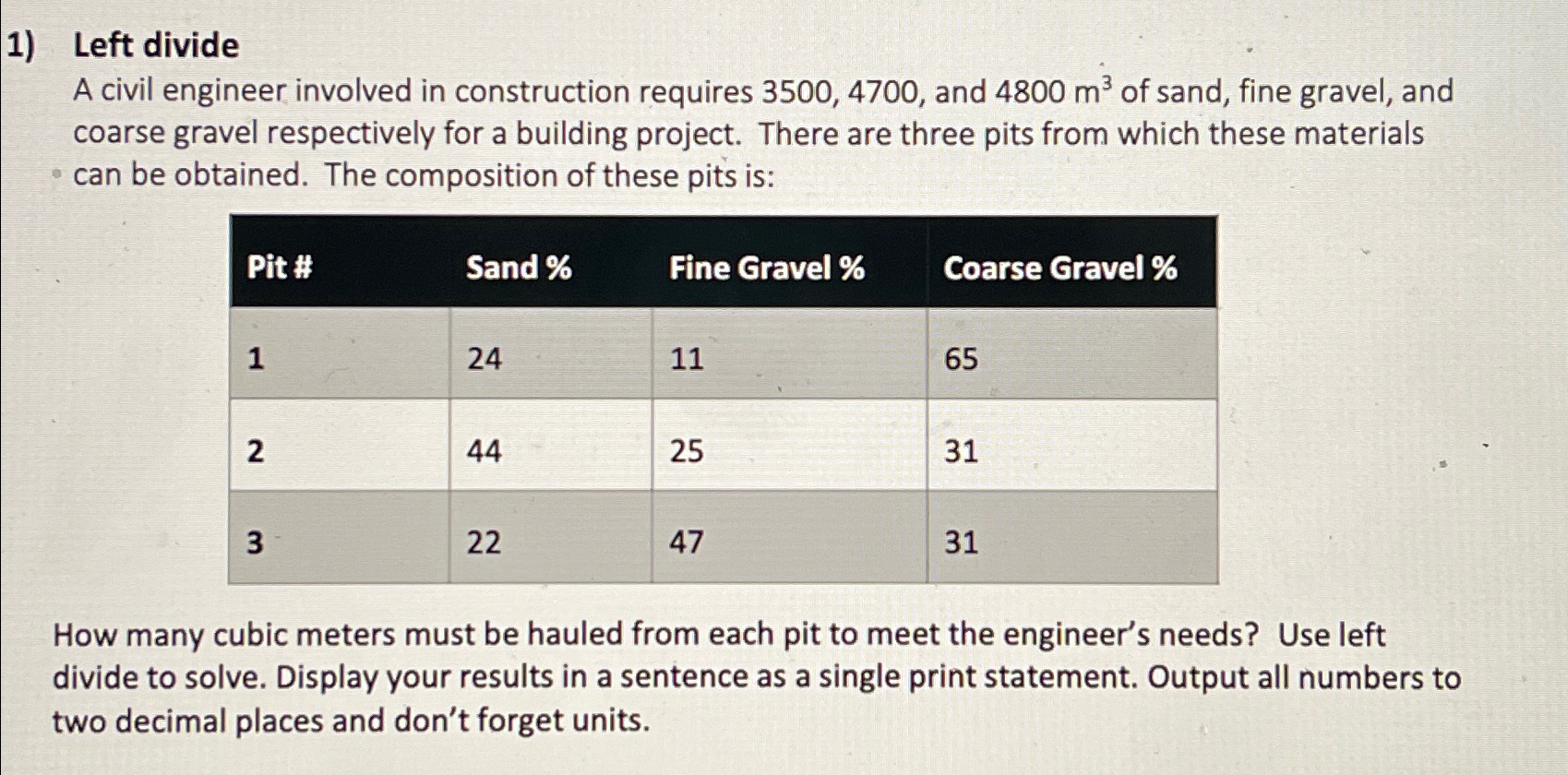

Left divide A civil engineer involved in construction requires 3 5 0 0 , 4 7 0 0 , and 4 8 0 0 m 3 of sand, fine gravel, and coarse gravel respectively for a building project. There are three pits from which these materials can be obtained. The composition of these pits is: \ table [ [ Pit# , Sand % , Fine Gravel % , Coarse Gravel % ] , [ 1 , 2 4
Left divide A civil engineer involved in

Solar thermal collectors heat water or other fluids. True / False

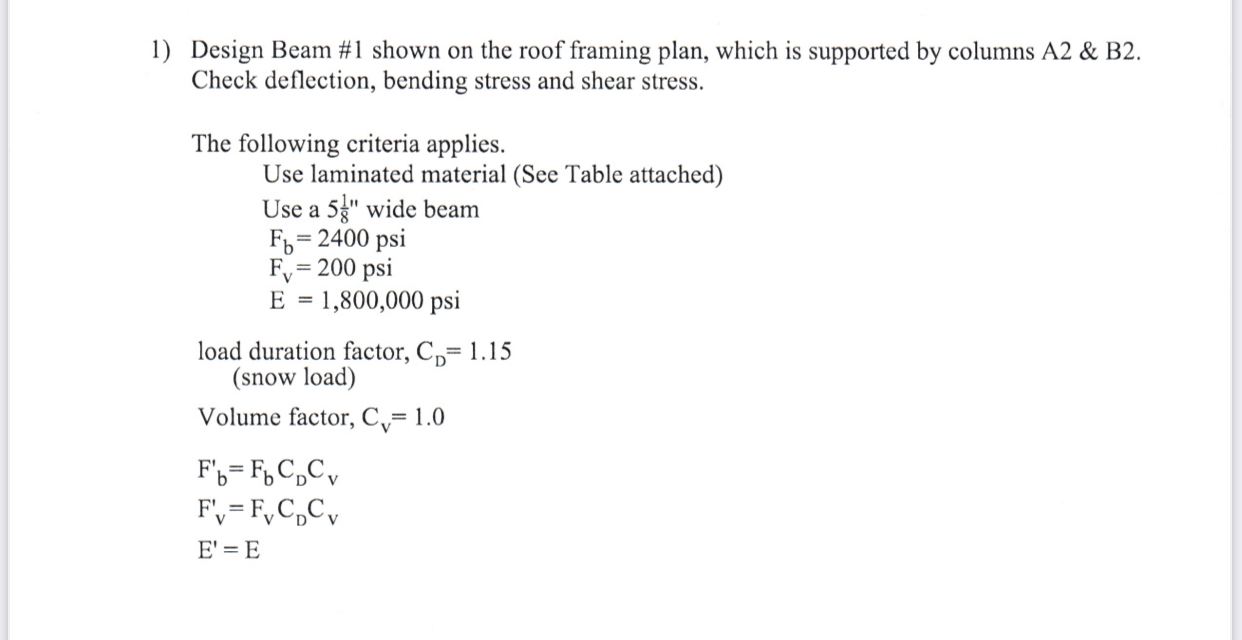

Image diagram i s posted i n m y profile, could not upload all together:Design Beam # 1 shown on the roof framing plan, which is supported by columns A 2 & B 2 . Check deflection, bending stress and shear stress. The following criteria applies. Use laminated material ( See Table attached ) Use a 5 1 8 " wide beam F b = 2 4 0 0 F v = 2 0 0 E = 1 ,
Image diagram i s posted i n m y profile, could

ven:
ven:

Civil What are the advantages of intermediate structures in the analysis of geothermal energy environmental psychology?

Which method is commonly used for the determination of the consolidation properties of soil? A . Proctor Test B . Triaxial Compression Test C . Oedometer Test D . Standard Penetration Test ( SPT )

How do theoretical principles of material science contribute to the development of high - performance and sustainable construction materials?

How might civil engineering principles be applied to mitigate the effects of climate change on urban infrastructure?

In the cube below, each edge has a length a = 3 m . The force P acts along the diagonal CF and has a magnitude of P = 2 0 0 N . Determine ( A ) the moment of P about vertex A , ( B ) the moment of P about the diagonal AG , and ( C ) the moment of P about edge AD .
In the cube below, each edge has a length a = 3 m

. In what ways can advanced computational methods and modeling techniques, such as finite element analysis and computational fluid dynamics, improve the accuracy and efficiency of civil engineering projects, especially in terms of structural integrity and environmental impact assessment?

"What are the factors to consider when selecting the appropriate type of foundation for a large - scale industrial building?"

Concrete highways are more prone to cracking than asphalt highways. True / False

The bending moment at a point on a beam is maximum when the shear force is: A ) Zero B ) Maximum C ) Minimum D ) Equal to the load applied

convertthedatabelowfrom a city water treatment plant to LR and precent removal ( % ) using the average data for the removal of cryptosporidium spores.

Balance the following equation and estimate how much H 3 will be produced from 2 0 0 mg / l of BeN 2 ? BeN 2 + H 2 0 Be ( OH ) 2 + NH 3

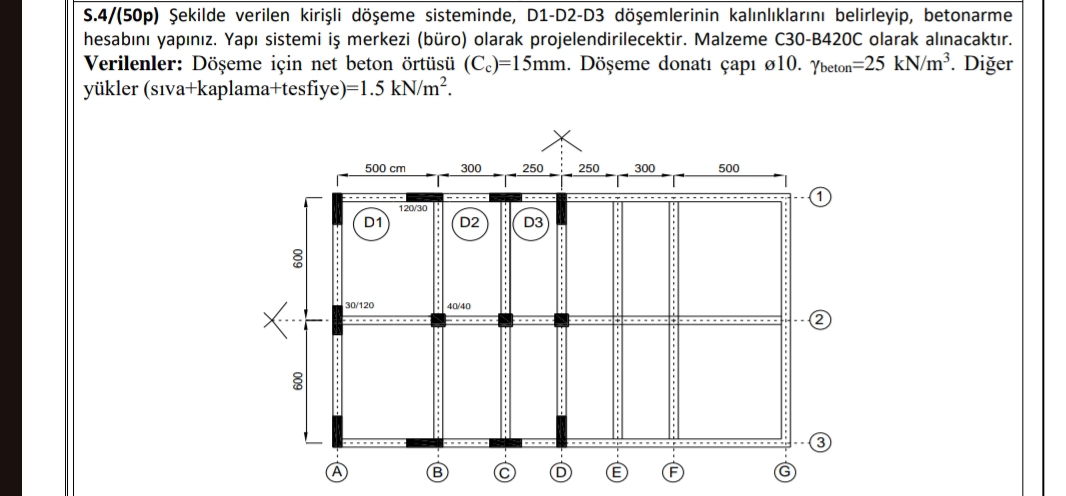

ekilde verilen kiri li d eme sisteminde, D 1 - D 2 - D 3 d emlerinin kal nl klar n belirleyip, betonarme hesab n yap n z . Yap sistemi i merkezi ( b ro ) olarak projelendirilecektir. Malzeme C 3 0 - B 4 2 0 C olarak al nacakt r . Verilenler: D eme i in net beton rt s ( C c ) = 1 5 m m . D eme donat ap O 1 0 . b e t o n = 2 5 k N m 3 . Di er y kler
ekilde verilen kiri li d eme sisteminde, D 1 - D

KV 3 8 : What theoretical frameworks could be applied to optimize the integration of smart grid technologies with urban infrastructure for enhanced energy efficiency? ( Do not give answer with AI tools I will give dislikes to the answer )

Task 1 ( 1 5 % ) : Design a GRP pipe to drain the major road shown in Figure 1 . Assume a design discharge of 7 7 5 L s and a longitudinal slope of 1 . 4 % . How much is the ( discharge ) capacity of the pipe? What percentage of pipe's capacity is used? What should be the selected design AEP? Assume the available pipe sizes and maximum velocity
Task 1 ( 1 5 % ) : Design a GRP pipe to drain the

/ / / Explain the fundamental differences between cohesion and adhesion in the context of soil mechanics.

Explain the theoretical principles behind the use of unmanned underwater vehicles ( UUVs ) in underwater inspections and maintenance of marine structures.

blue tops are to be set 0 . 0 5 ' below subgrade elevation and within which of the following tolerences? + / - 0 . 0 1 ' + / - 0 . 0 5 ' + / - 0 . 0 3 ' + / - 0 . 0 2 '

A saturated soil ( S = 1 0 0 % ) has a Saturated unit weigh = 2 0 . 1 kN / m 3 and Gs = 2 . 6 6 . Note unit weight of water = 9 . 8 1 kN / m 3 . Find void ratio , water content and dry unit weight

material was compacted in an embankment with a bulk density of 2 1 5 0 / 3 and a water content of 1 2 % . The value of is 2 . 6 5 . Calculate the following: 3 . 1 Dry density ( 3 ) 3 . 2 Void ratio ( 3 ) 3 . 3 Degree of saturation ( 3 ) 3 . 4 Air content

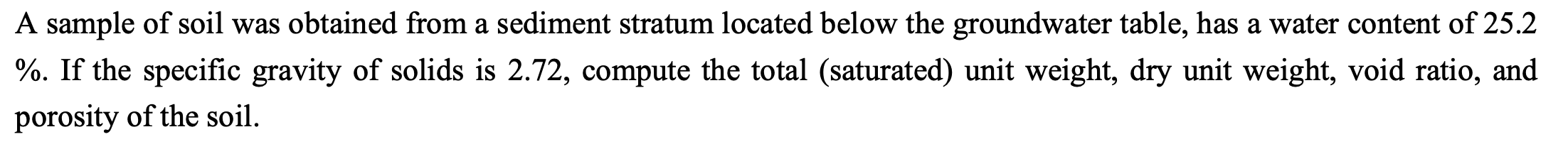

A sample of soil was obtained from a sediment stratum located below the groundwater table, has a water content of 2 5 . 2 % . If the specific gravity of solids is 2 . 7 2 , compute the total ( saturated ) unit weight, dry unit weight, void ratio, and porosity of the soil.
A sample of soil was obtained from a sediment

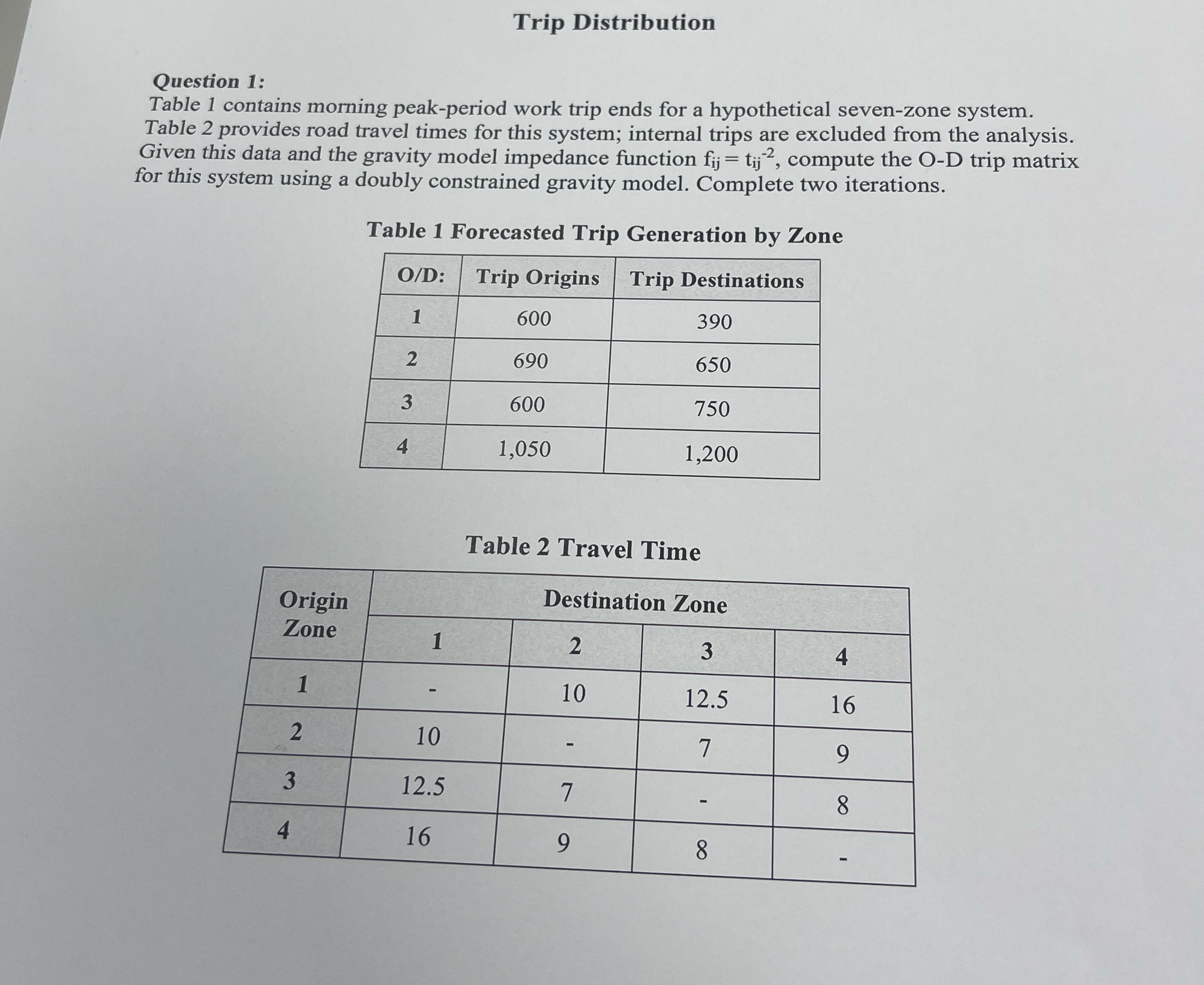

Trip Distribution Question 1 : Table 1 contains morning peak - period work trip ends for a hypothetical seven - zone system. Table 2 provides road travel times for this system; internal trips are excluded from the analysis. Given this data and the gravity model impedance function f i j = t i j - 2 , compute the O - D trip matrix for this system
Trip Distribution Question 1 : Table 1 contains

Calculate the maximum allowable safe speed on a curve in km / h with speed limit of 1 0 0 km / hr , a radius of 6 0 0 m with a superelevation between 3 % to 7 %

Repeat the Spillway Crest Design Example ( see Lecture Slides below ) for an elliptical approach crest, using a design procedure that guarantees a minimum pressure head of - 1 5 f t . Use a maximum discharge of 7 , 0 0 0 c m s instead of 5 , 6 6 6 c m s . Plot the spillway shape. Use an arbitrary crest elevation of 1 0 0 f t . Example: Spillway
Repeat the Spillway Crest Design Example ( see

The beam shown has a rectangular cross section 3 inches wide by 6 inches deep. Determine the midspan deflection ( in . ) of the beam if E = 1 . 5 x 1 0 ^ 6 psi.
The beam shown has a rectangular cross section 3

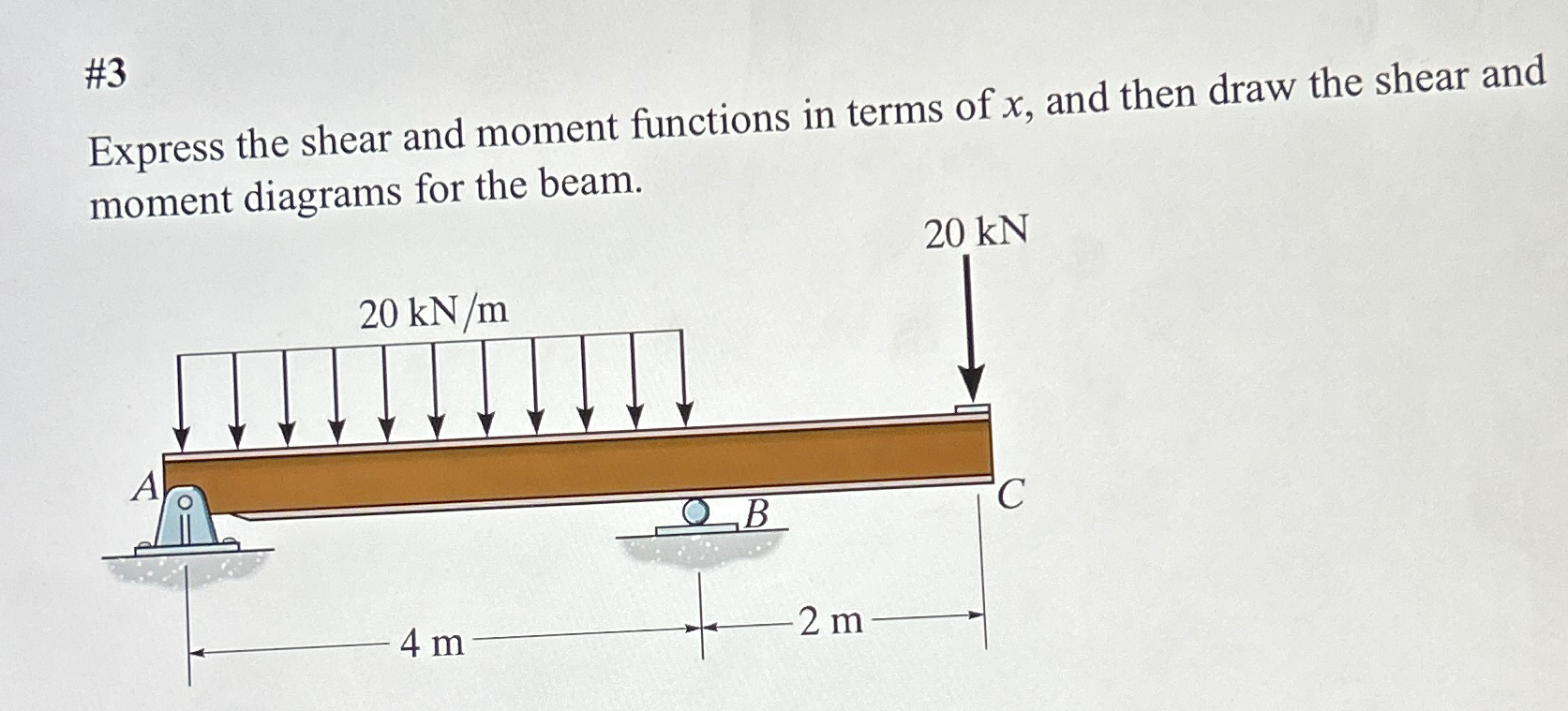

# 3 Express the shear and moment functions in terms of x , and then draw the shear and moment diagrams for the beam.
# 3 Express the shear and moment functions in

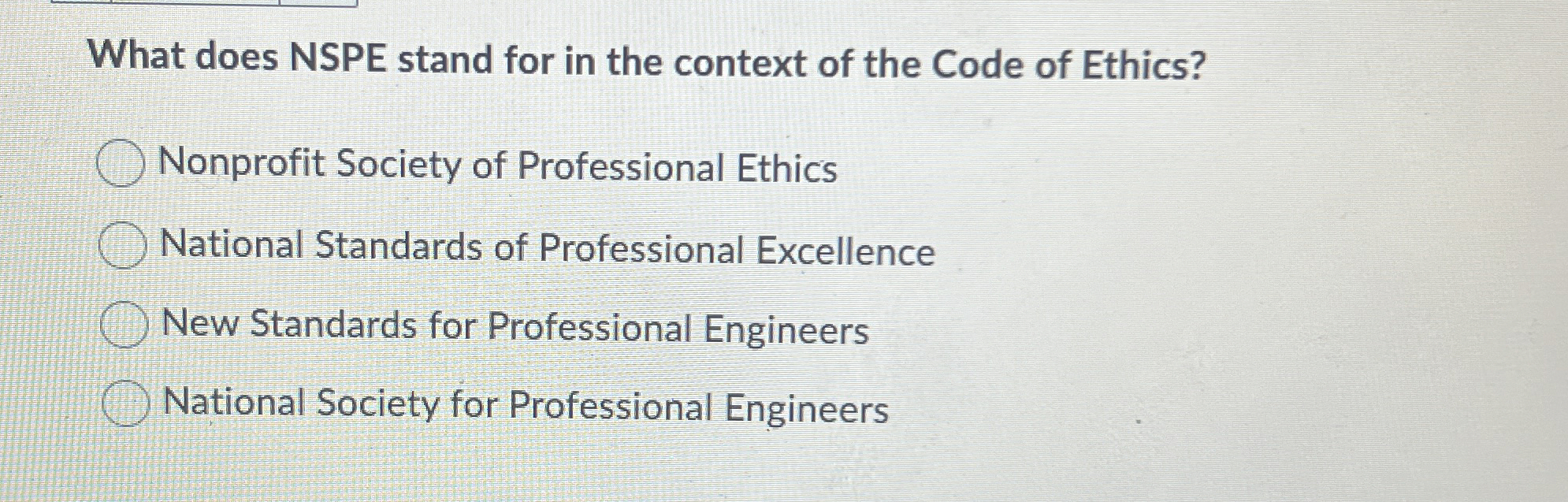

What does NSPE stand for in the context of the Code of Ethics? Nonprofit Society of Professional Ethics National Standards of Professional Excellence New Standards for Professional Engineers National Society for Professional Engineers
What does NSPE stand for in the context of the

- - - - Analyze the challenges and advancements in the design and construction of sustainable water treatment plants, considering technologies for water purification, energy efficiency, and environmental impact mitigation. - - -

1 9 : 2 8 . IIl 5 G , Mentioned four hydraulic works that require river engineering for their design. ( 1 p )
1 9 : 2 8 . IIl 5 G , Mentioned four hydraulic

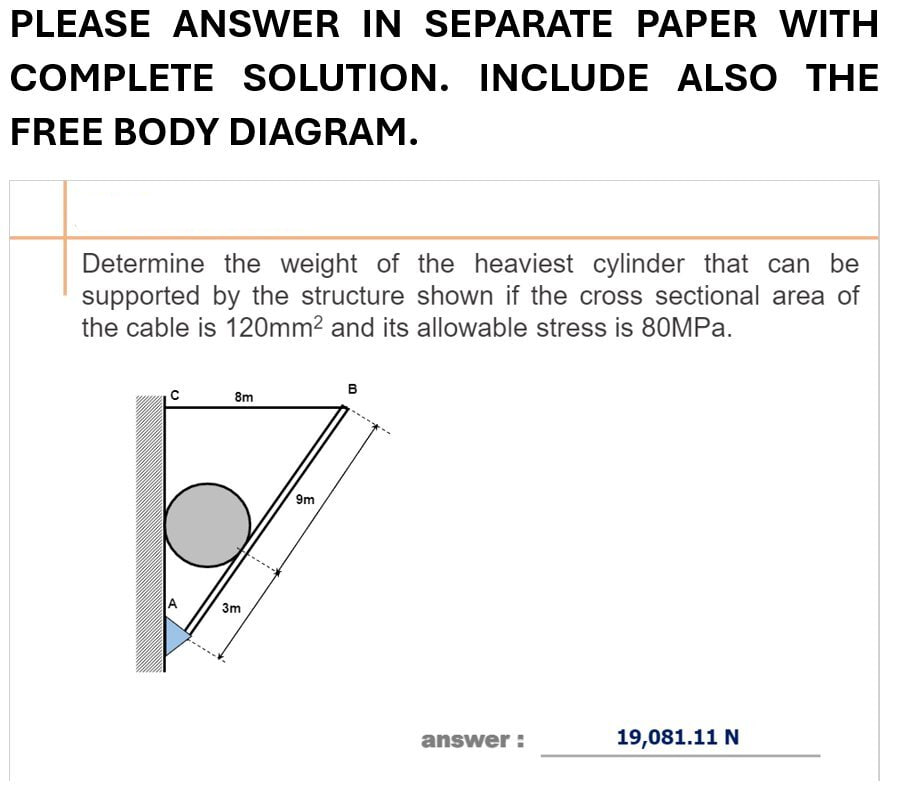

Determine the weight of the heaviest cylinder that can be supported by the structure shown if the cross sectional area of the cable is 1 2 0 m m 2 and its allowable stress is 8 0 MPa.
Determine the weight of the heaviest cylinder

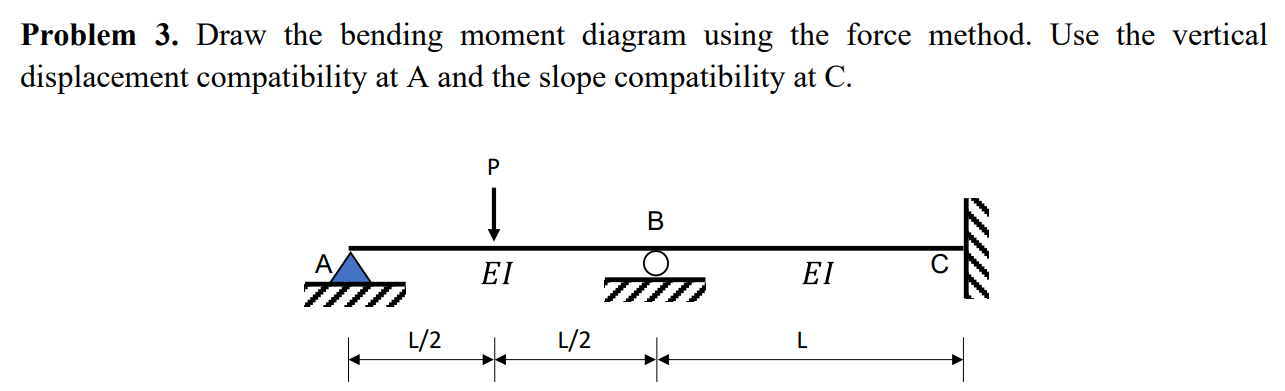

Problem 3 . Draw the bending moment diagram using the force method. Use the vertical displacement compatibility at A and the slope compatibility at C . ( This structure is structural Indeterminate )
Problem 3 . Draw the bending moment diagram using

A civil engineer is designing a reinforced concrete beam with the following specifications: Length: 6 meters Width: 0 . 3 meters Height: 0 . 5 meters Concrete strength: 2 5 MPa Reinforcement: 4 steel bars of diameter 1 2 mm Calculate the following: a ) The volume of concrete required for the beam. b ) The volume of steel reinforcement needed for

answer correctly or I'll give down vote 9 8 . How can green building practices enhance the quality of urban life?

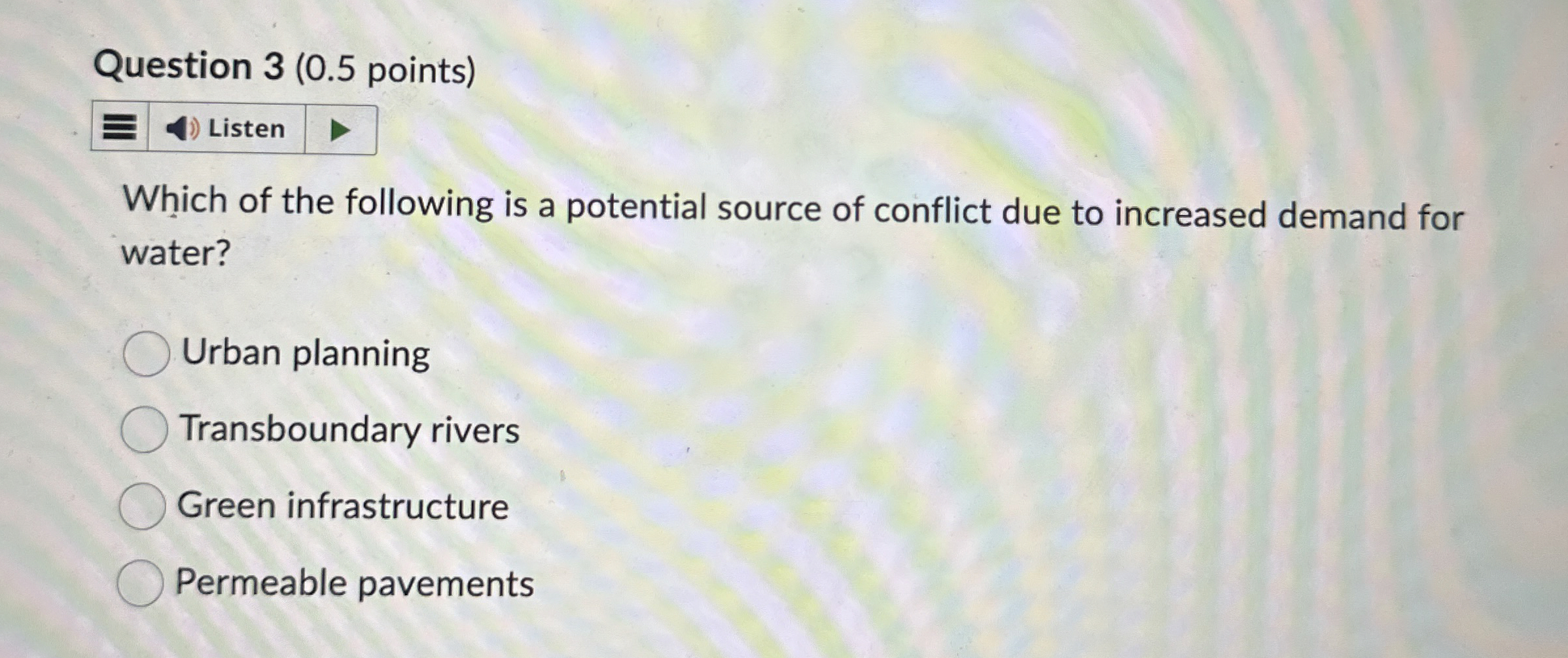

Question 3 ( 0 . 5 points ) Which of the following is a potential source of conflict due to increased demand for water? Urban planning Transboundary rivers Green infrastructure Permeable pavements
Question 3 ( 0 . 5 points ) Which of the

Discuss the principles of transportation planning. How is transportation infrastructure planned to meet future demands?

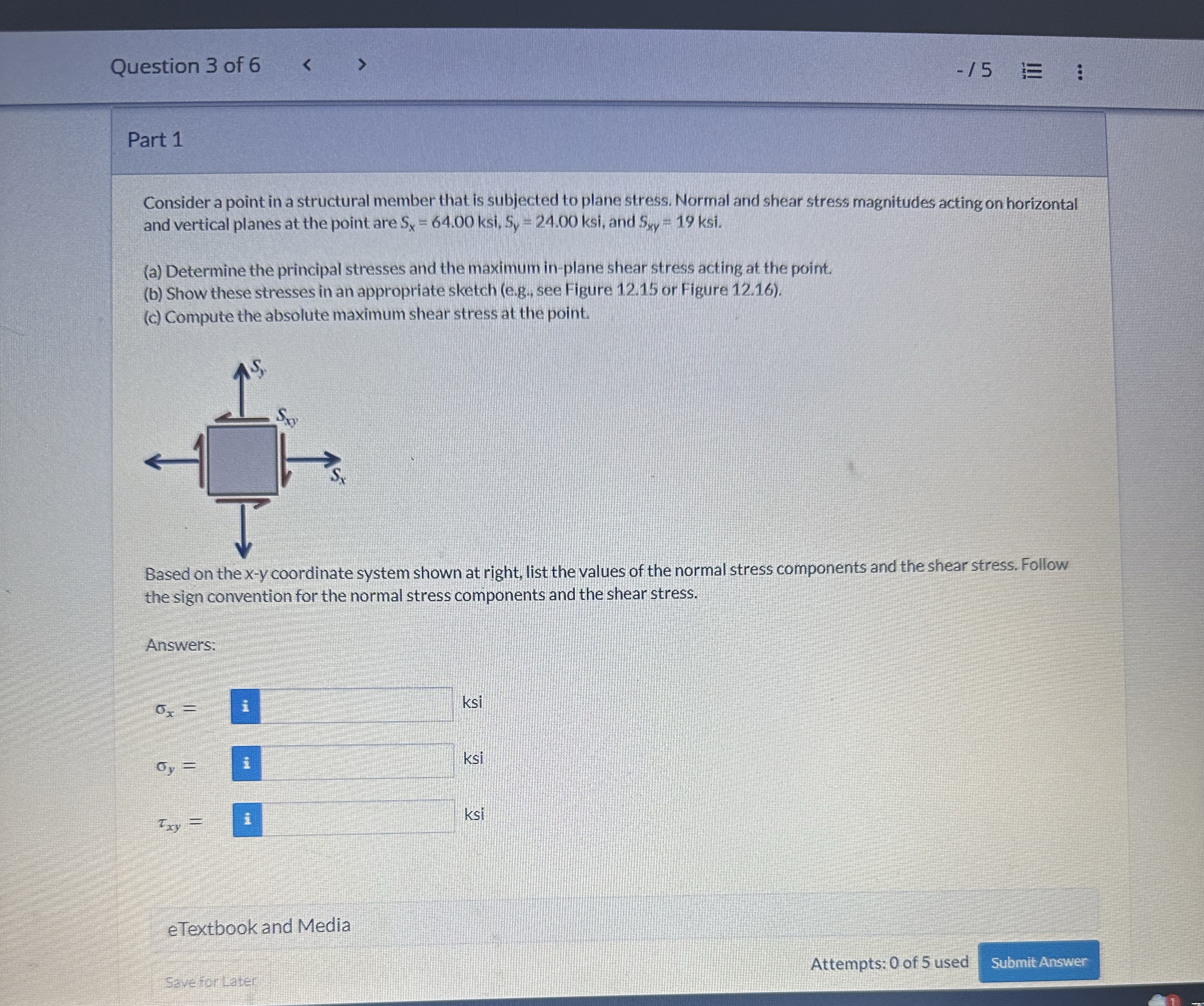

Question 3 of 6 - 1 5 Part 1 Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are S x = 6 4 . 0 0 ksi, S y = 2 4 . 0 0 ksi, and S x y = 1 9 ksi. ( a ) Determine the principal stresses and the maximum in - plane shear stress acting at
Question 3 of 6 - 1 5 Part 1 Consider a point in

JV 5 6 What are the key principles behind the design of flexible pavement systems for varying traffic loads? ( Do not give answer with Ai tools i will give dislikes )

Q 4 . For Civil Engineering Students, analyze the frame shown in Fig. Show axial force, shearing force and bending moment for each member of the frame by splitting / dividing the framing into parts. 8 k N m 1 0
Q 4 . For Civil Engineering Students, analyze the

# Examine the role of civil engineering in sustainable mining practices. How can engineers design mine closure plans, reclamation projects, and tailings management systems to minimize environmental footprint and promote post - mining land use?

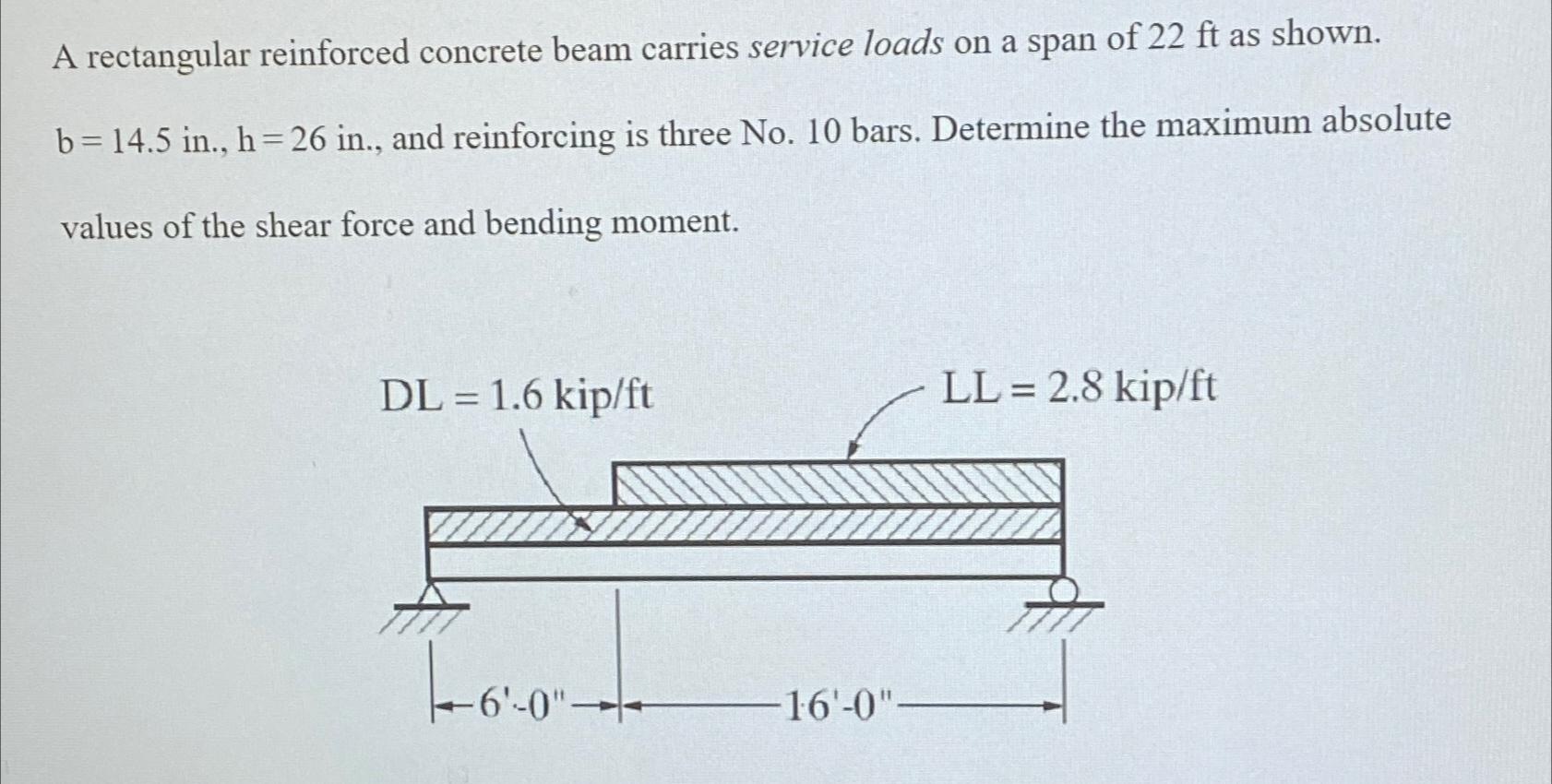

A rectangular reinforced concrete beam carries service loads on a span of 2 2 f t as shown. b = 1 4 . 5 in . , h = 2 6 in . , and reinforcing is three No . 1 0 bars. Determine the maximum absolute values of the shear force and bending moment.
A rectangular reinforced concrete beam carries

How to find neutral axis of a beam and explain its importance?

find the centroid and 2 nd moment of area about x and y axes

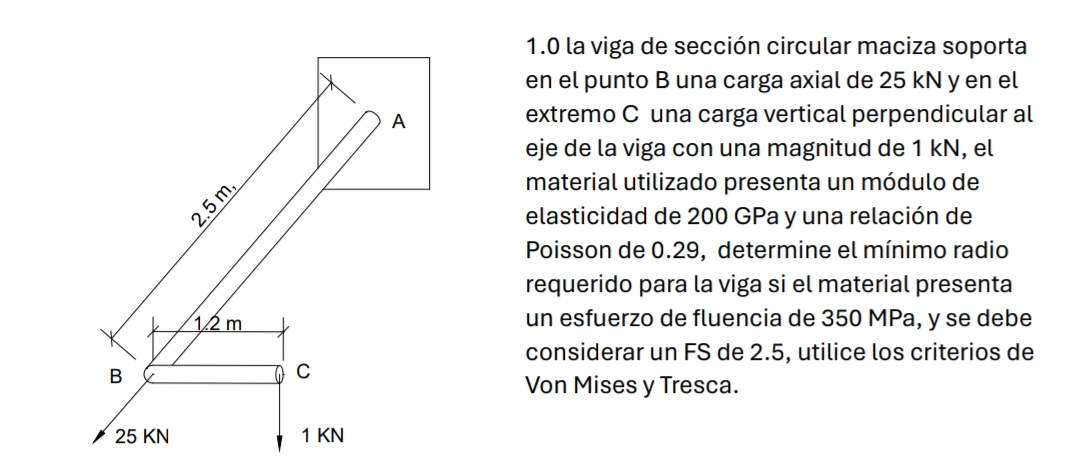

The beam with a solid circular section supports at point B an axial load of 2 5 kN and at end C a vertical load perpendicular to the axis of the beam with a magnitude of 1 kN , the material used has a modulus of elasticity of 2 0 0 GPa and a Poisson's ratio of 0 . 2 9 , determine the minimum radius required for the beam if the material has a yield
The beam with a solid circular section supports

! @ ! ! ! ! ! ! Discuss the importance of collaboration among stakeholders ( government , industry, community ) in achieving sustainable and resilient outcomes.

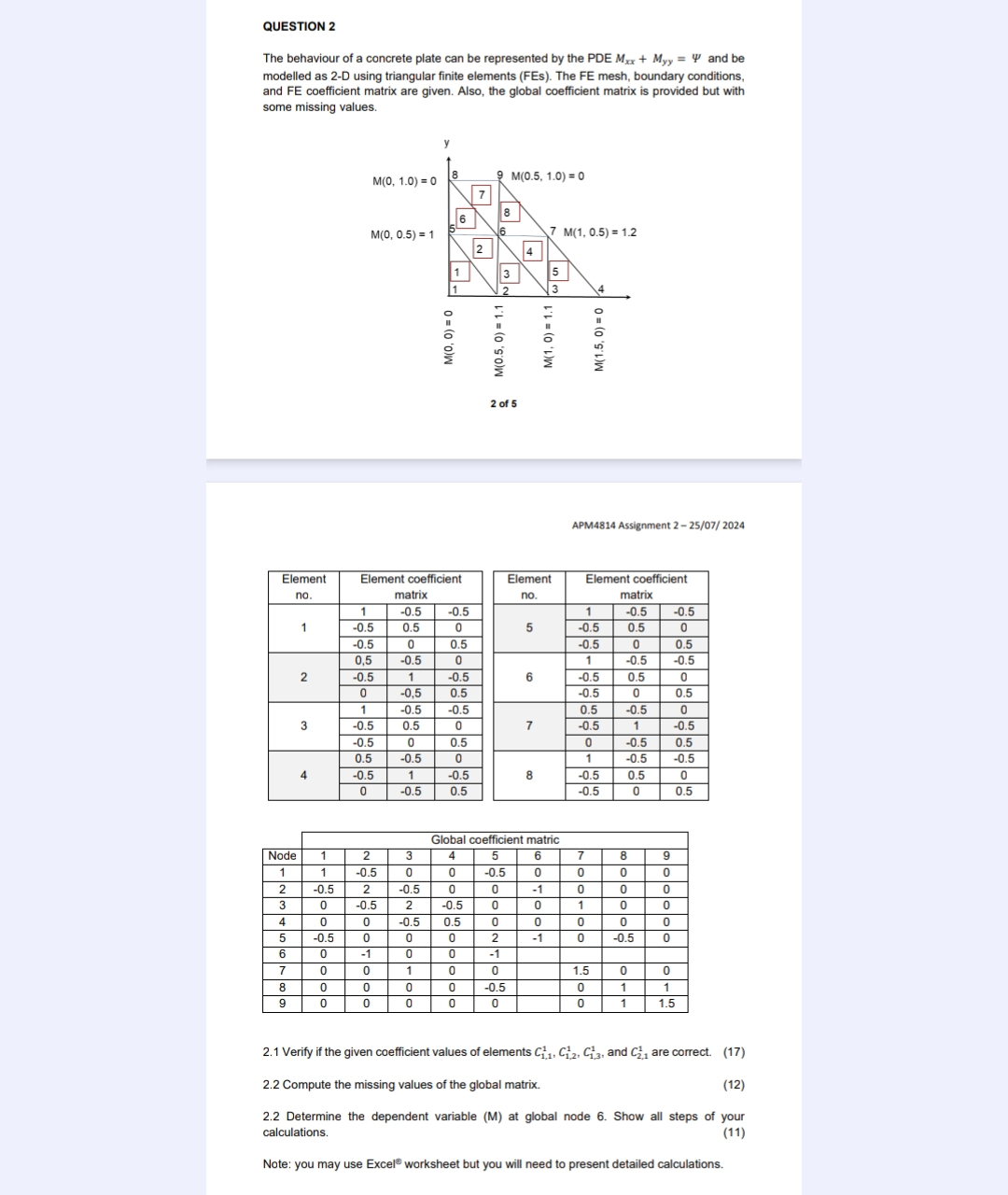

QUESTION 2 The behaviour of a concrete plate can be represented by the PDE M + M y y = and be modelled as 2 - D using triangular finite elements ( FEs ) . The FE mesh, boundary conditions, and FE coefficient matrix are given. Also, the global coefficient matrix is provided but with some missing values. APM 4 8 1 4 Assignment 2 - 2 5 / 0 7 / 2 0 2
QUESTION 2 The behaviour of a concrete plate can

RJ 5 0 . Discuss the challenges and considerations in the design of deep excavation support systems for urban infrastructure projects. ( Do not give answer with Ai tools i will give dislikes to the answer )

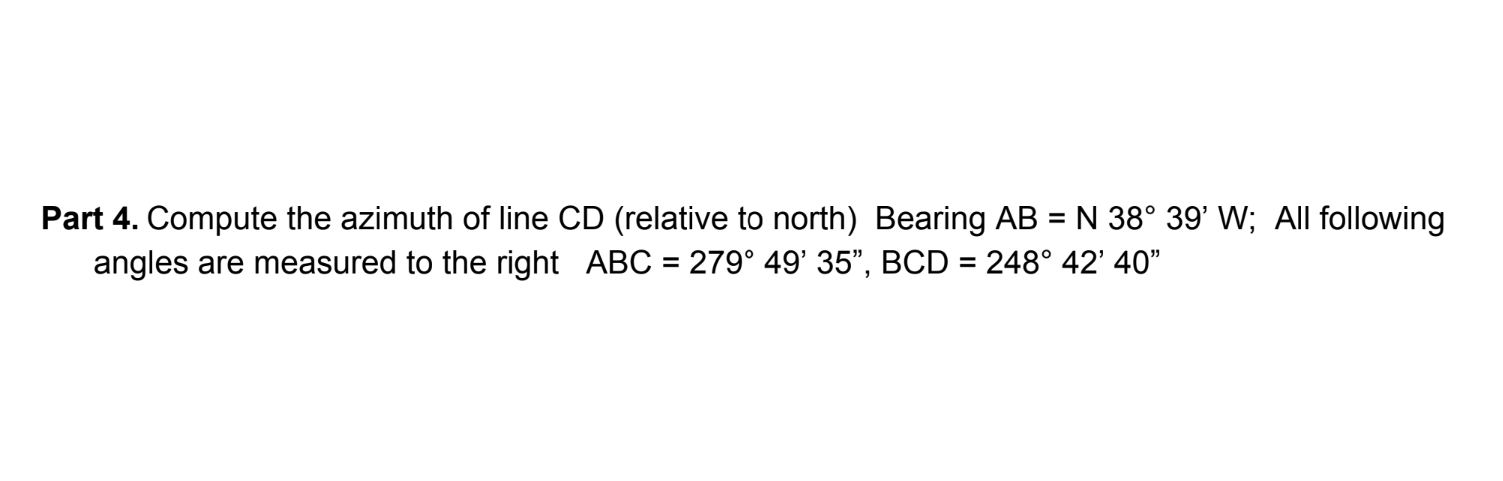

Part 4 . Compute the azimuth of line C D ( relative to north ) Bearing A B = N 3 8 3 9 ' W; All following angles are measured to the right ABC = 2 7 9 4 9 ' 3 5 ' ' , B C D = 2 4 8 4 2 ' 4 0 ' '
Part 4 . Compute the azimuth of line C D (

As shown in Figure 1 , two sturts ( A & B ) have been proposed to install when excavating 4 . 0 m deep trench in a sandy soil deposit. The horizontal spacing of struts is 2 m . The force acting on strut A is: Figure 1 = Unit weigh t of soil K a = Rankine's active earth pressure coefficient For Clay : C = c u and ' = 0 K a = 1 - s i n ' 1 + s i n '
As shown in Figure 1 , two sturts ( A & B ) have

gave answer without involving Ai contentt requesting. 1 1 0 . What is the significance of using low - VOC materials in educational institutions?

What denotes the absolute nearness of observed quantities to their true values? a . Precision b . Accuracy

What material is commonly used to line drainage ditches to prevent erosion?

4 . A general arrangement is a type of drawing used to communicate a specific purpose during the exchange of information. Briefly lists what is included in the general arrangement drawings ( GA ) . 5 . Evaluate diverse types of information produced alongside a site plan for a small, medium, and large project. For each example, explain the

Discuss the principles underlying the application of finite element analysis in civil engineering structures. Explore the mathematical foundation and computational methodologies involved in this numerical technique, emphasizing its significance in modeling complex structures with varying material properties and boundary conditions. Evaluate the

A red helium balloon floats worry - free in the atmosphere. If the balloon has a volume of 3 . 5 2 m ^ 3 at the top of the troposphere, what is the buoyancy force acting on the balloon ( N ) at that altitude? Assume properties of the U . S . Standard Atmosphere. Assume g = 9 . 8 0 6 m / s ^ 2 ( technically gravity also decreases with elevation ) .

KV 1 5 1 : What theoretical frameworks could be applied to enhance the resilience of coastal infrastructure against the impacts of sea - level rise and extreme weather events? ( Do not give answer with AI tools I will give dislikes to the answer )

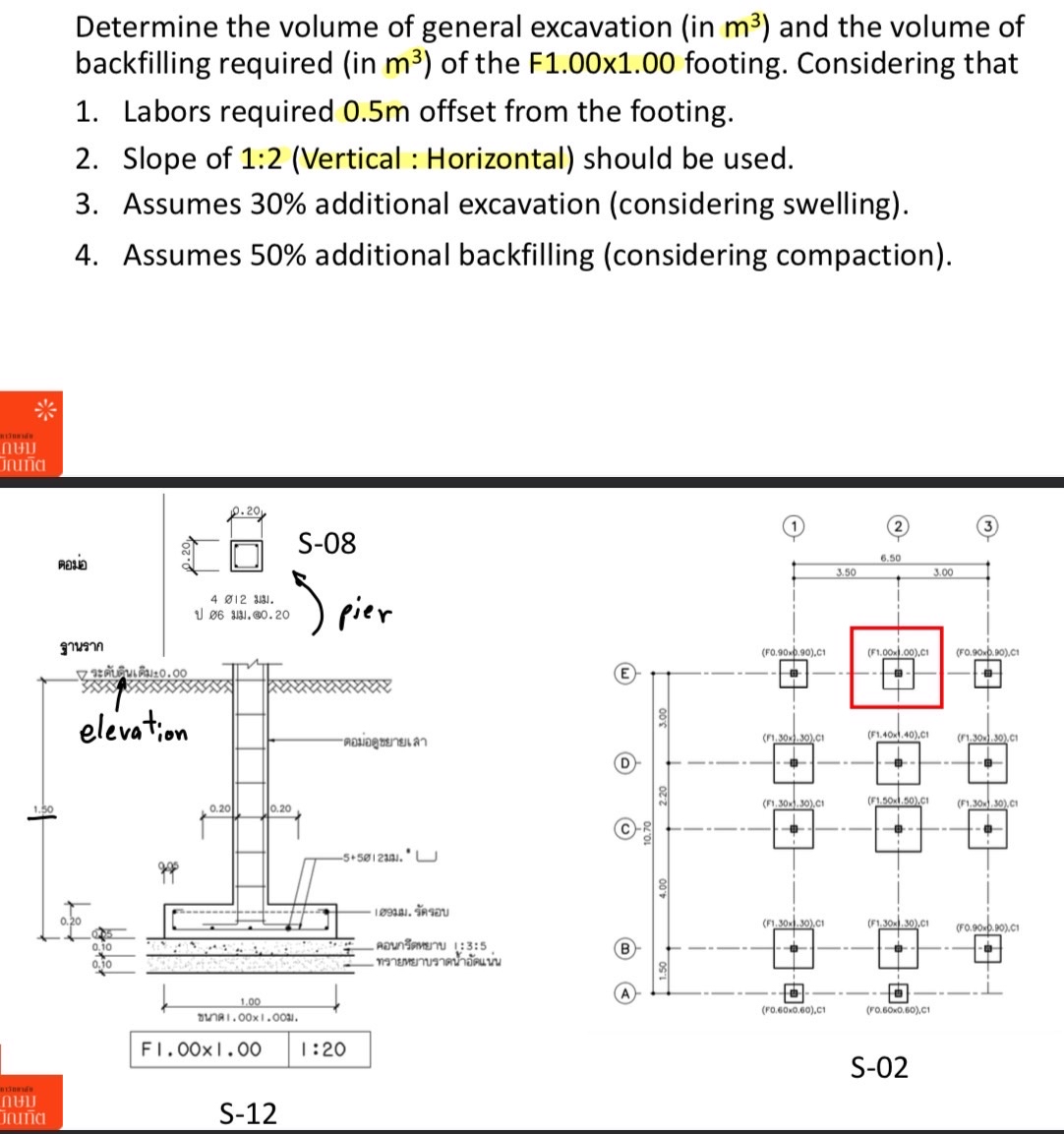

Determine the volume of general excavation ( in m 3 ) and the volume of backfilling required ( in m 3 ) of the F 1 . 0 0 x 1 . 0 0 footing. Considering that Labors required 0 . 5 m offset from the footing. Slope of 1 : 2 ( Vertical : Horizontal ) should be used. Assumes 3 0 % additional excavation ( considering swelling ) . Assumes 5 0 %
Determine the volume of general excavation ( in m

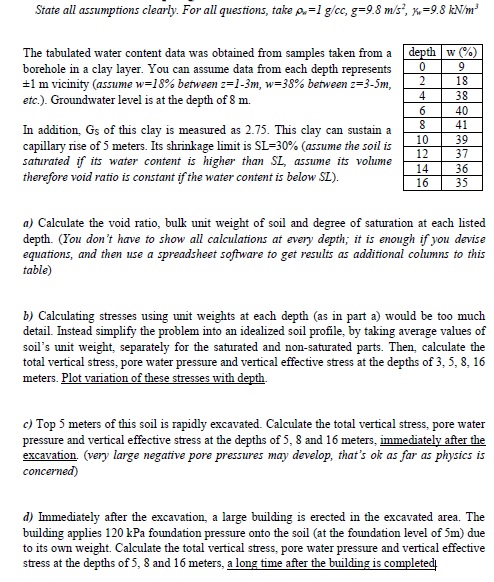

State all assumptions clearly. For all questions, take w = 1 g c c g = 9 . 8 m s 2 , y w = 9 . 8 k N m 3 The tabulated water content data was obtained from samples taken from a borehole in a clay layer. You can assume data from each depth represents + - 1 m vicinity ( assume w = 1 8 % between z = 1 - 3 m , w = 3 8 % between z = 3 - 5 m , etc. ) .
State all assumptions clearly. For all questions,

S Find the field capacity of a soil for the given data. W 1 . Root zone depth = 2 m 2 . Existing water content = 5 % 3 . Dry density of soil = 2 0 kN / ( m ^ 3 ) 4 . Water applied to the soil = 5 0 0 m ^ 3 5 . Water loss due to evaporation and deep percolation = 1 0 % 6 . Area of plot = 1 0 0 0 m ^ 2 ( Consider unit weight of water = \ $ 0 . 8 1

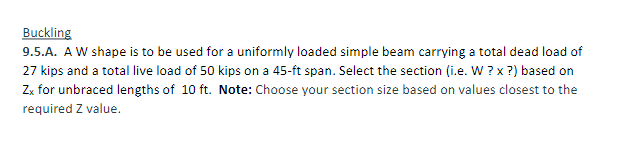

Buckling 9 . 5 . A . A W shape is to be used for a uniformly loaded simple beam carrying a total dead load of 2 7 kips and a total live load of 5 0 kips on a 4 5 - ft span. Select the section ( i . e . W ? x ? ) based on Z x for unbraced lengths of 1 0 f t . Note: Choose your section size based on values closest to the required Z value.
Buckling 9 . 5 . A . A W shape is to be used for

A field density test indicated that the density of a compacted road base is 1 2 8 . 6 p c f with a water content of 1 1 . 6 % . The specific gravity of the soil grains is equal to 2 . 6 6 . Calculate the dry unit weight, the porosity, void ratio, and degree of saturation of the road base.
A field density test indicated that the density

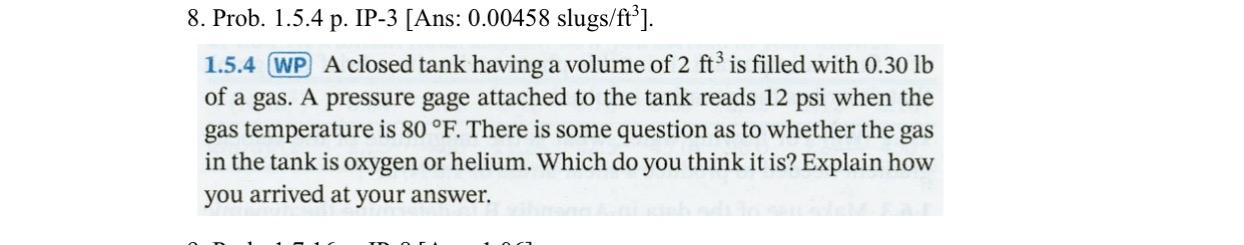

Prob. 1 . 5 . 4 p . IP - 3 [ Ans: 0 . 0 0 4 5 8 slugs ? f t 3 ] . 1 . 5 . 4 WP A closed tank having a volume of 2 f t 3 is filled with 0 . 3 0 l b of a gas. A pressure gage attached to the tank reads 1 2 psi when the gas temperature is 8 0 F . There is some question as to whether the gas in the tank is oxygen or helium. Which do you think it is ?
Prob. 1 . 5 . 4 p . IP - 3 [ Ans: 0 . 0 0 4 5 8

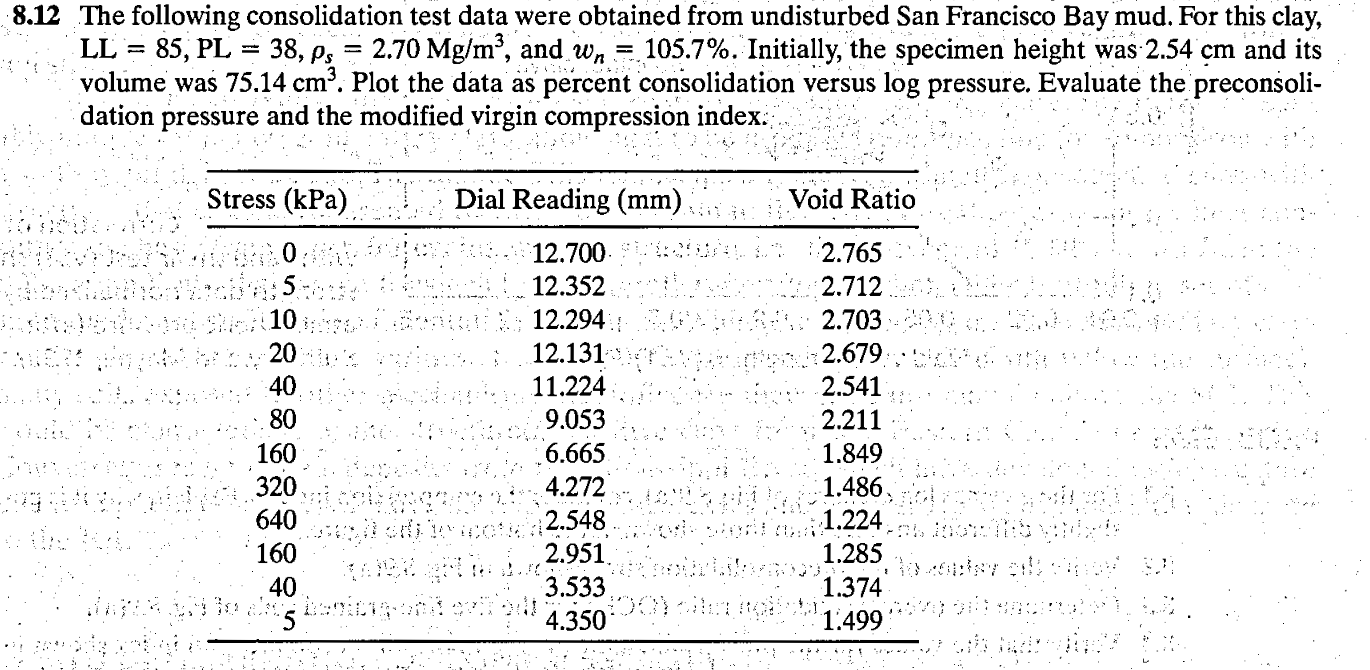

8 . 1 2 The following consolidation test data were obtained from undisturbed San Francisco Bay mud. For this clay, L L = 8 5 , P L = 3 8 , s = 2 . 7 0 M g m 3 , and w n = 1 0 5 . 7 % . Initially, the specimen height was 2 . 5 4 c m and its volume was 7 5 . 1 4 c m 3 . Plot the data as percent consolidation versus log pressure. Evaluate the
8 . 1 2 The following consolidation test data

( 5 pts ) A wide flange steel beam shown in Figure below supports a permanentSection concrete masonry wall, floor slab, architectural finishes, mechanical and electrical systems. Determine the uniform dead load in kips per linear foot acting on the beam. The partition wall is 1 0 - ft high, non - load bearing and laterally braced at the top to
( 5 pts ) A wide flange steel beam shown in

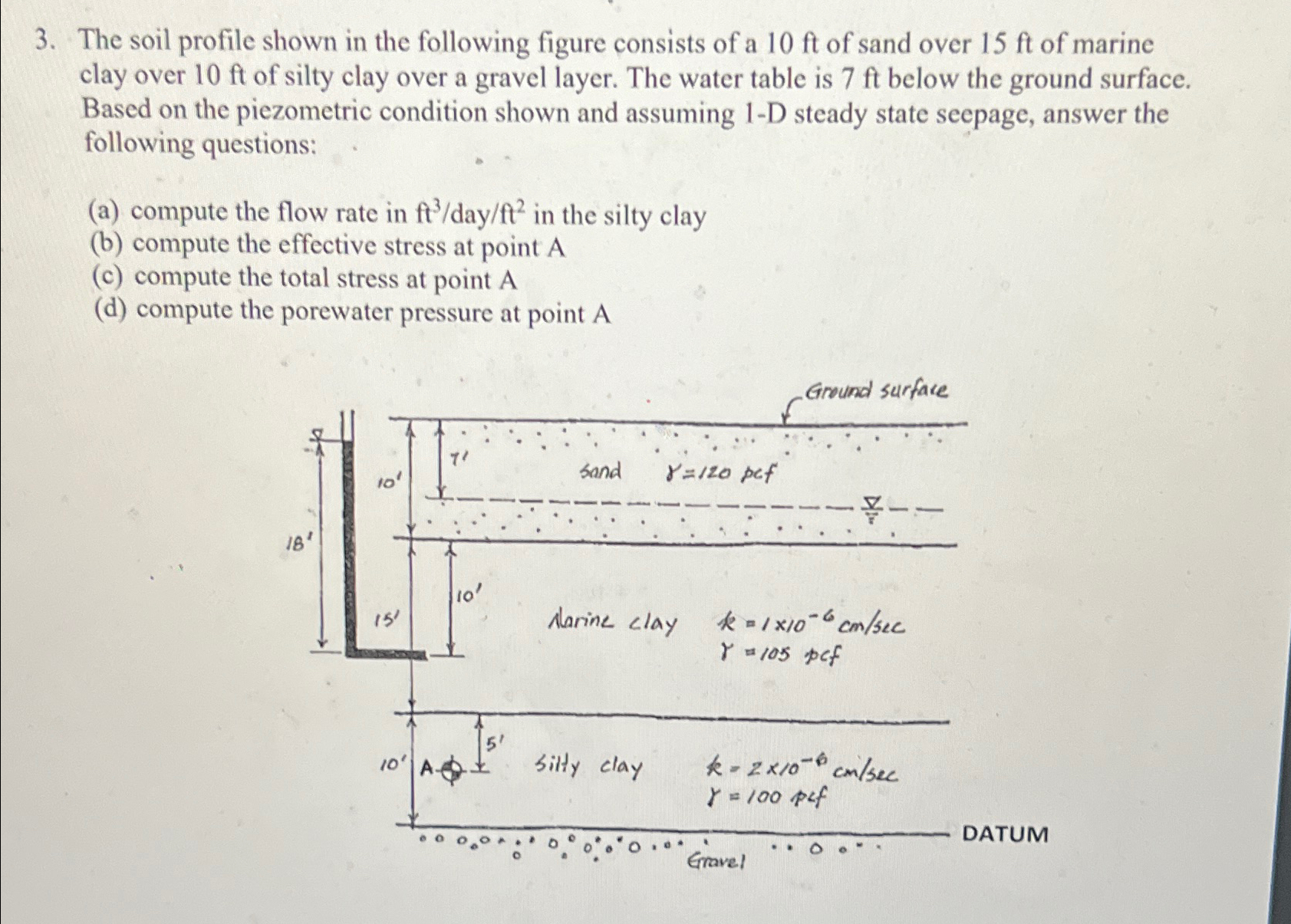

The soil profile shown in the following figure consists of a 1 0 f t of sand over 1 5 f t of marine clay over 1 0 f t of silty clay over a gravel layer. The water table is 7 f t below the ground surface. Based on the piezometric condition shown and assuming 1 - D steady state seepage, answer the following questions: ( a ) compute the flow rate in
The soil profile shown in the following figure

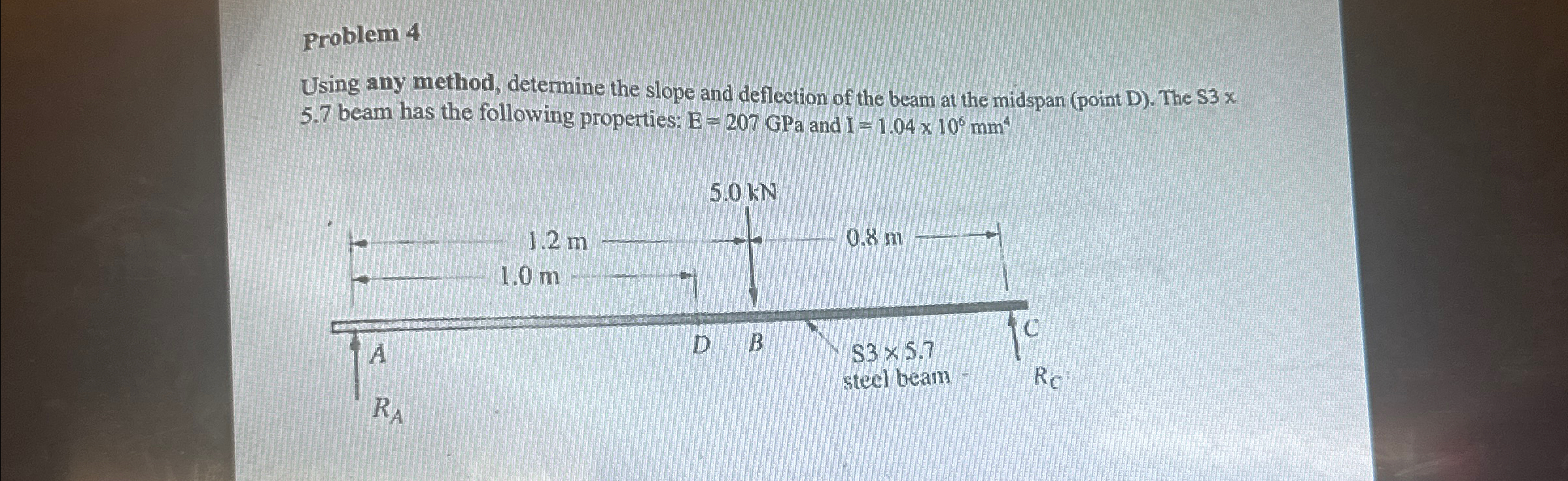

Problem 4 Using any method, determine the slope and deflection of the beam at the midspan ( point D ) . The $ 3 x 5 . 7 beam has the following properties: E = 2 0 7 GPa and I = 1 . 0 4 1 0 6 m m 4
Problem 4 Using any method, determine the slope

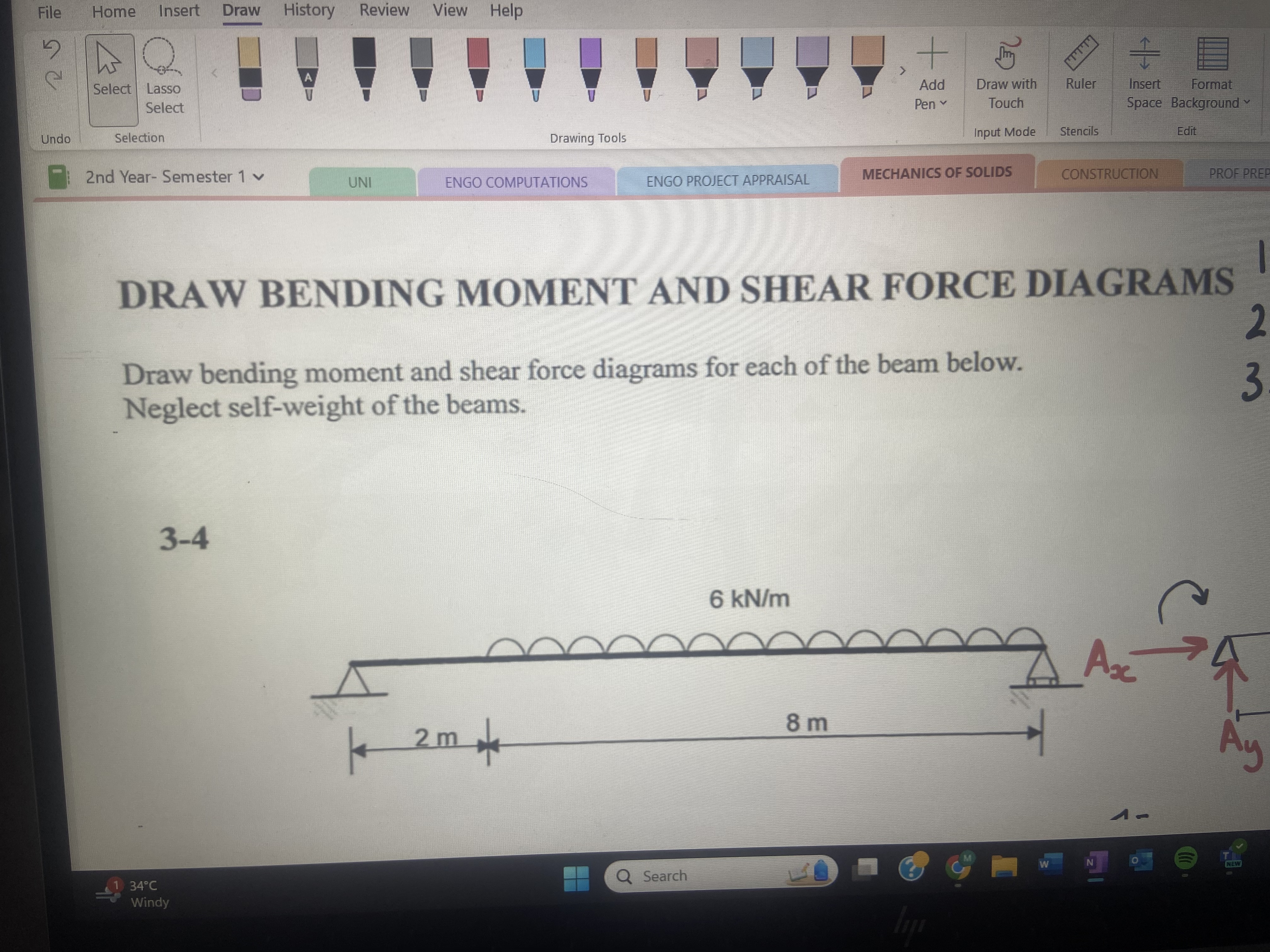

DRAW BENDING MOMENT AND SHEAR FORCE DIAGRAMS Draw bending moment and shear force diagrams for each of the beam below. Neglect self - weight of the beams. 3 - 4
DRAW BENDING MOMENT AND SHEAR FORCE DIAGRAMS Draw

Malaria is widespread in tropical areas where water disinfection and sanitation remain undeveloped. Which of the following is one type of vector of Malaria transmission? Group of answer choices fecal contaminant water pond Humid environment Mosquitoes

Q 2 : The beam shown, supports a factored D . L ( 7 . 5 k N m ) the own weight is included and a factored L . L = 3 0 k N m , design the shear reinforcement ( use 1 0 stirrups ) , use the F c ' = 2 8 MPa and F y = 4 2 0 MPa
Q 2 : The beam shown, supports a factored D . L (

I need accurate answer without using automation tools or plagairised answers 9 1 0 . What is a land survey coordinate grid system?

evaluate how civil engineers can balance the demands for infrastructure development with the need for environmental stewardship, and propose strategies for overcoming the challenges associated with sustainable engineering practices in both urban and rural settings.

Jessica is driving her car at 6 5 m p h on a 5 0 m p h speed limit road. Soon, she will need to enter a ramp where the speed limit will decrease to 2 5 m p h . If she can see the reduced speed limit sign for the ramp from 1 2 0 f t away, at what distance does the sign need to be located before the ramp so that she can successfully reduce her speed
Jessica is driving her car at 6 5 m p h on a 5 0

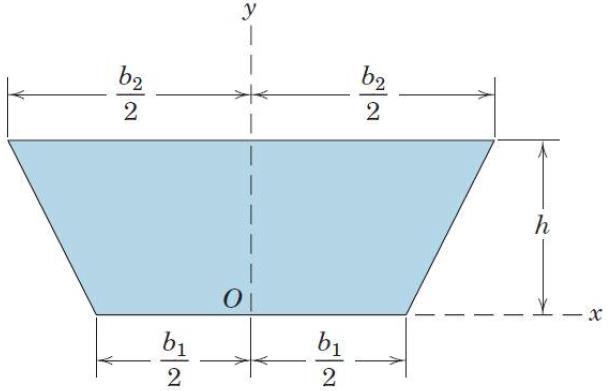

Why do you substract the moments of inertia to find out the total? Woulnd't be a sum of each moment of inertia to have the total?? Also, why in the first figure ( 1 ) the ( rectangle ) you asume the base is b 2 if the real base is b 1 . Thank you :)
Why do you substract the moments of inertia to

1 8 . Factor of safety in geotechnical engineering assesses stability by comparing maximum load capacity to actual load. Higher factors ensure stability, guiding design for safer soil structures and foundations.

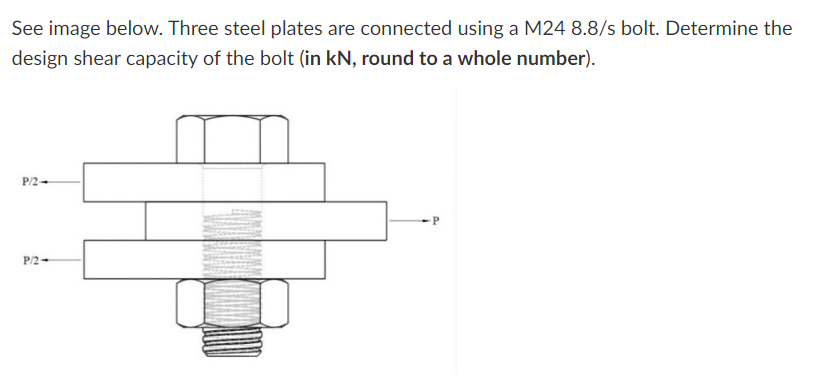

See image below. Three steel plates are connected using a M 2 4 8 . 8 / s bolt. Determine the design shear capacity of the bolt ( in k N , round to a whole number ) .
See image below. Three steel plates are connected

What are the key factors influencing the selection of suitable construction materials for sustainable infrastructure projects?

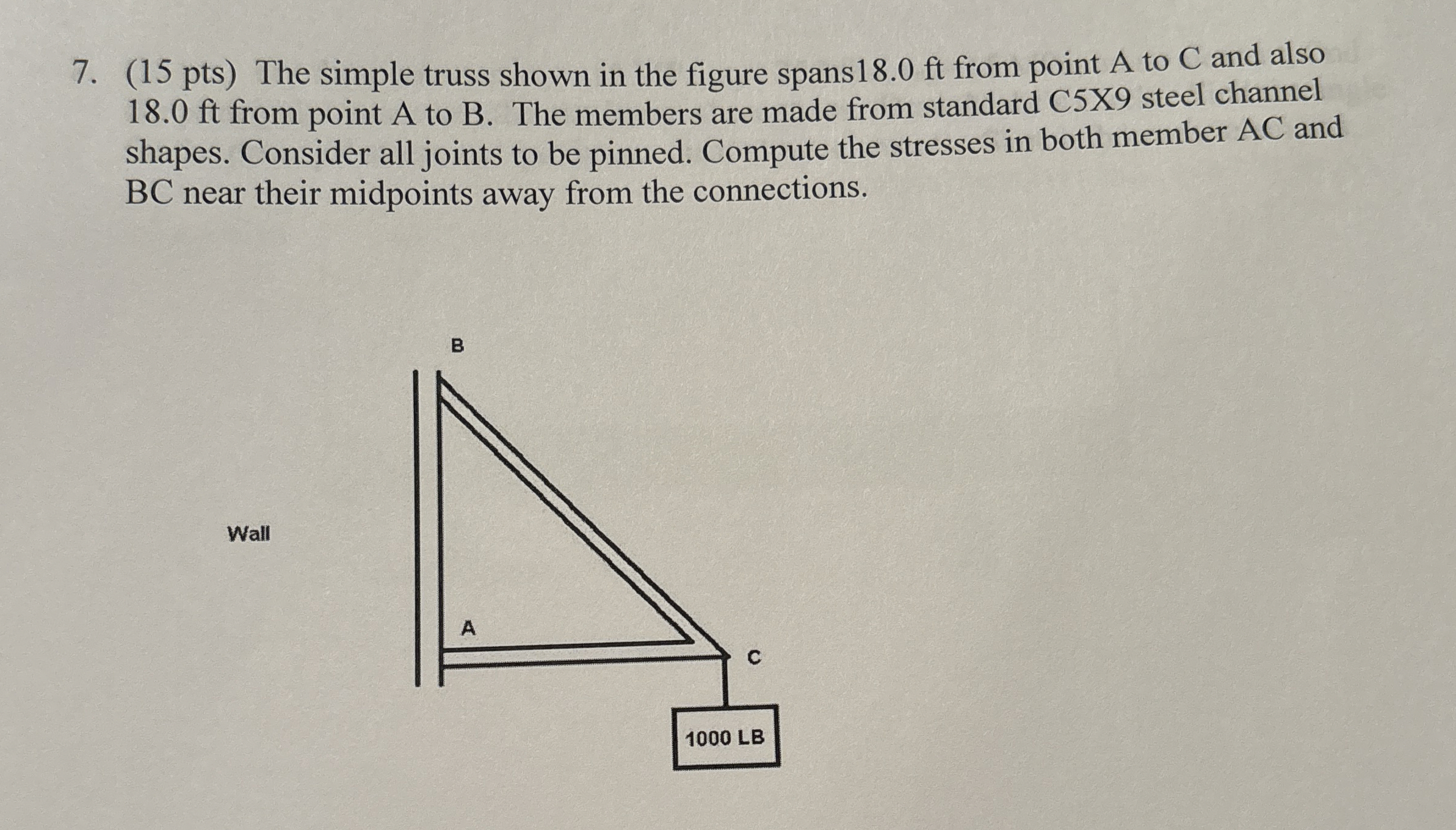

( 1 5 pts ) The simple truss shown in the figure spans 1 8 . 0 ft from point A to C and also 1 8 . 0 ft from point A to B . The members are made from standard C 5 X 9 steel channel shapes. Consider all joints to be pinned. Compute the stresses in both member AC and BC near their midpoints away from the connections. Wall
( 1 5 pts ) The simple truss shown in the figure

9 . BM A = 1 0 0 . 0 0 0 BM B = 1 0 0 . 0 0 0 BM C = 1 0 0 . 0 0 0 from station to station elev. diff. error est. BM A 1 + . 0 2 . 0 1 BM B 1 - . 0 1 . 0 2 BM C 1 + . 0 1 . 0 3 Using a matrix solution compute the 9 5 % confidence standard deviation in the elevation of 1 . 1 0 . Double all of the error estimates in 9 - 1 1 . and recompute using a

Discuss the role of geotechnical engineering in the design and construction of deep excavation projects, highlighting considerations such as soil behavior, excavation methods, and ground support systems.

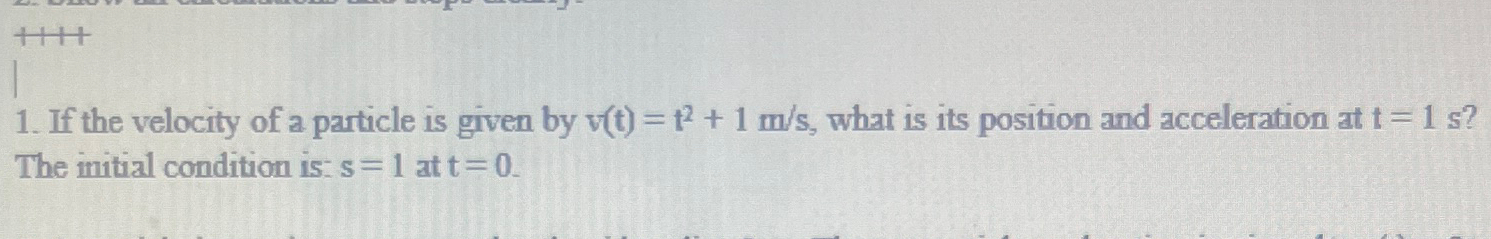

If the velocity of a particle is given by v ( t ) = t 2 + 1 m s , what is its position and acceleration at t = 1 s ? The initial condition is: s = 1 at t = 0 .
If the velocity of a particle is given by v ( t )
