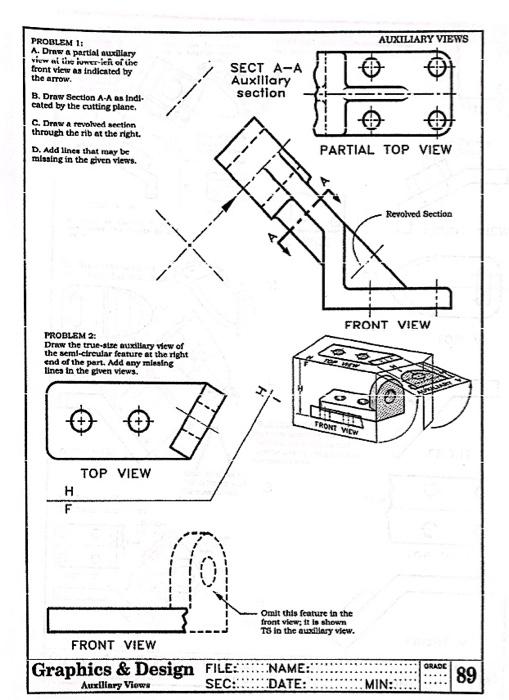

AUXILIARY VIEWS SECT A-A Auxiliary section PROBLEM 1: A. Draw a partial audiary view aldreiver-ic of the tront view as indicated by the arrow. B. Draw Section A-A as Indi. cated by the cutting plane. C. Dwa revolved section through the rib at the right. D. Add lines that may be missing in the given views. PARTIAL TOP VIEW Revolved Section FRONT VIEW PROBLEM 2: Draw the true-atse budllary view of the semicircular feature at the right end of the part. Add any miasing lines in the given views. TRONT WCW TOP VIEW H F Omit this feature in the front viewlo shown Ts in the auxiliary view. FRONT VIEW GRADC Graphics & Design FILE: NAME: DATE: 89 Auxiliary Views SEC:: MIN
