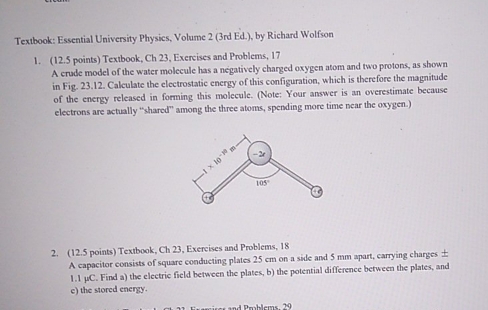

Textbook: Essential University Physics, Volume 2 (3rd Ed.), by Richard Wolfson 1. (12.5 points) Textbook, Ch 23, Exercises and Problemis, 17 A crude model of the water molecule has a negatively charged oxygen atom and two protons, as shown in Fig. 23.12. Calculate the electrostatic energy of this configuration, which is therefore the magnitude of the energy released in forming this molecule. (Note: Your answer is an overestimate because electrons are actually "shared" among the three atoms, spending more time near the oxygen.) 105 2. (12.5 points) Textbook, Ch 23, Exercises and Problems, 18 A capacitor consists of square conducting plates 25 cm on a side and 5 mm apart, carrying charges 1.1 pC. Find a) the electric field between the plates, b) the potential difference between the plates, and el the stored energy
