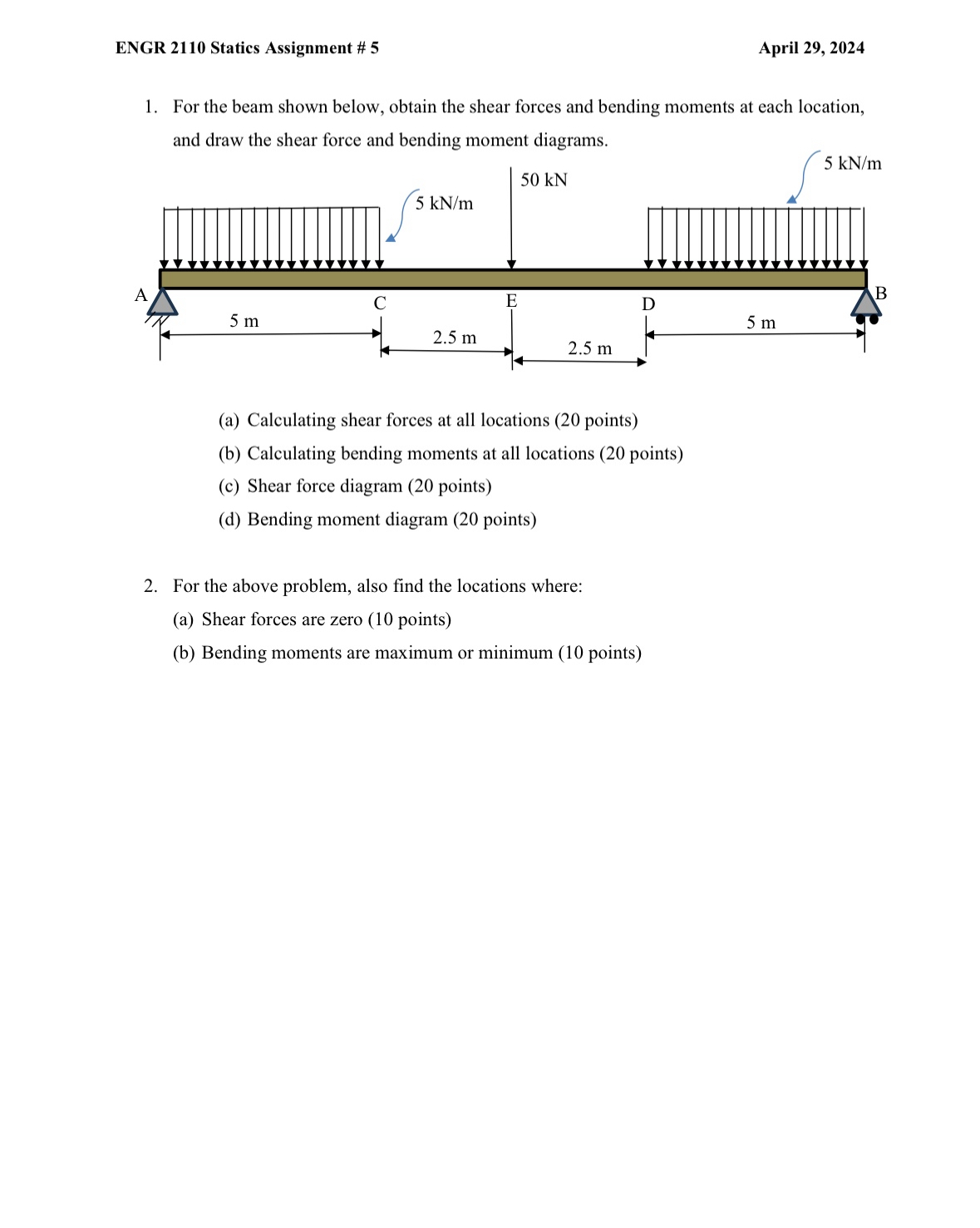

ENGR $2110$ Statics Assignment # $5$

April $29,2024$

For the beam shown below, obtain the shear forces and bending moments at each location, and draw the shear force and bending moment diagrams.

$($a$)$ Calculating shear forces at all locations $(20$ points$)$

$($b$)$ Calculating bending moments at all locations $(20$ points$)$

$($c$)$ Shear force diagram $(20$ points$)$

$($d$)$ Bending moment diagram $(20$ points$)$

For the above problem, also find the locations where:

$($a$)$ Shear forces are zero $(10$ points$)$

$($b$)$ Bending moments are maximum or minimum $(10$ points$)$
