ES for Activity $1$ is $0$

ES for Activity $2$ is $0$

ES for Activity $3$ is $0$

ES for Activity $4$ is $4$

ES for Activity $5$ is $5$

ES for Activity $6$ is $9$

Resource requirements per activity are:

Activity $1$: $3$ resources

Activity $2$: $1$ resource

Activity $3$: $1$ resources

Activity $4$: $1$ resource

Activity $5$: $3$ resources

Activity $6$: $2$ resources

Duration per activity:

Activity $1$ is $3$

Activity $2$ is $4$

Activity $3$ is $5$

Activity $4$ is $4$

Activity $5$ is $4$

Activity $6$ is $3$

Late finish for each activity are:

Activity $1$ is $5$

Activity $2$ is $5$

Activity $3$ is $5$

Activity $4$ is $9$

Activity $5$ is $9$

Activity $6$ is $12$

Slack for each activity is :

Activity $1$ is $2$

Activity $2$ is $1$

Activity $3$ is $0$

Activity $4$ is $1$

Activity $5$ is $0$

Activity $6$ is $0$ S

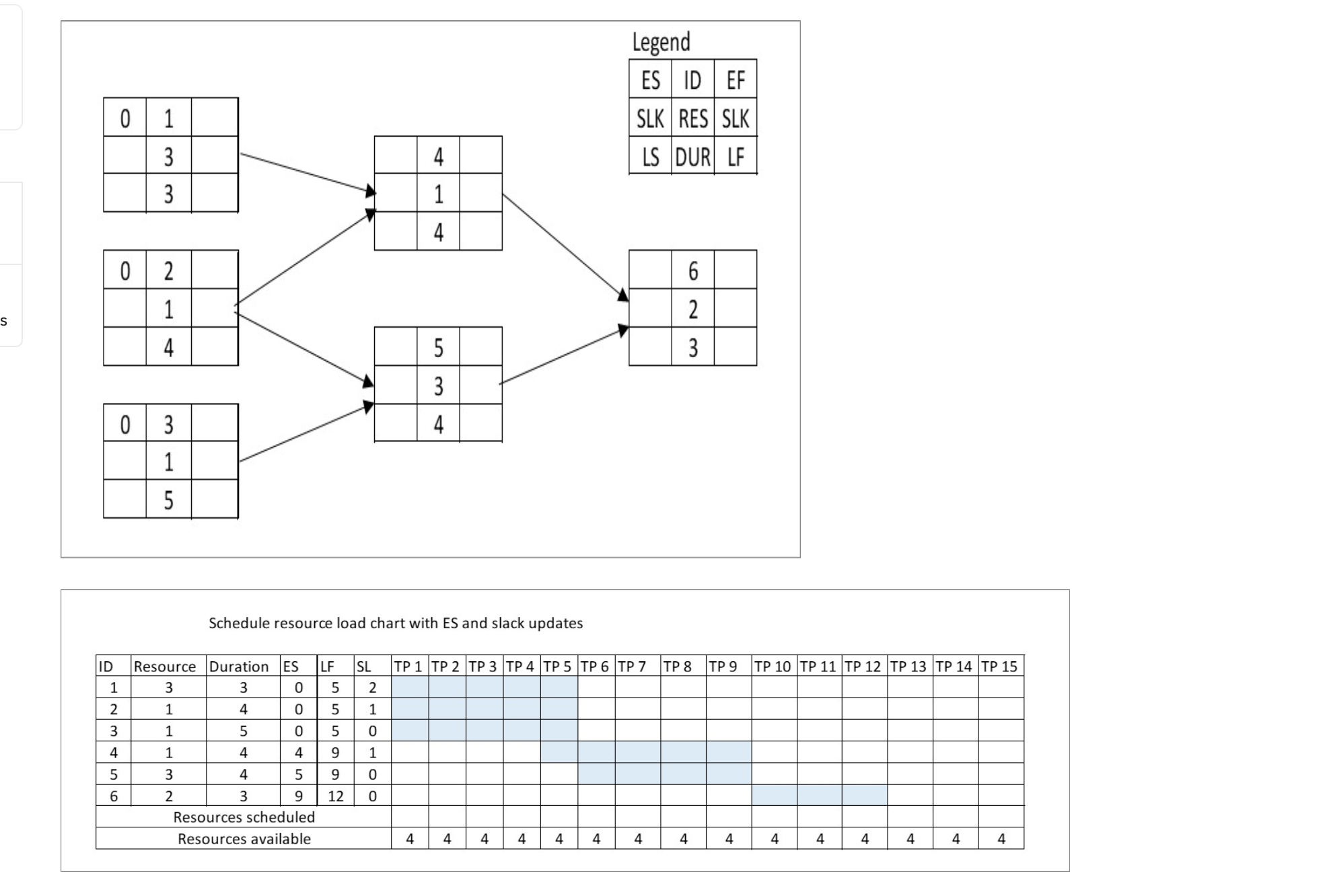

Schedule resource load chart with ES and slack updates

$\backslash$table$[[$ID$,$Resource,Duration,ES$,$LF$,$SL$,$TP $1,$TP $2,$TP $3,$TP $4,$TP $5,$TP $6,$TP $7,$TP $8,$TP $9,$TP $10,$TP $11,$TP $12,$TP $13,$TP $14,$TP $15],[1,3,3,0,5,2,,,,,,,,,,,,,,,],[2,1,4,0,5,1,,,,,,,,,,,,,,,],[3,1,5,0,5,0,,,,,,,,,,,,,,,],[4,1,4,4,9,1,,,,,,,,,,,,,,,],[5,3,4,5,9,0,,,,,,,,,,,,,,,],[6,2,3,9,12,0,,,,,,,,,,,,,,,],[$Resources scheduled,,,,,,,,,,,,,,,$],[$Resources available,$4,4,4,4,4,4,4,4,4,4,4,4,4,4,4]]$
