Question: Exam #1-Chapters 1 , 2, 3, to 4.4 -Map below 20. What is the simplified function F expressed by the K 00 01 11 10

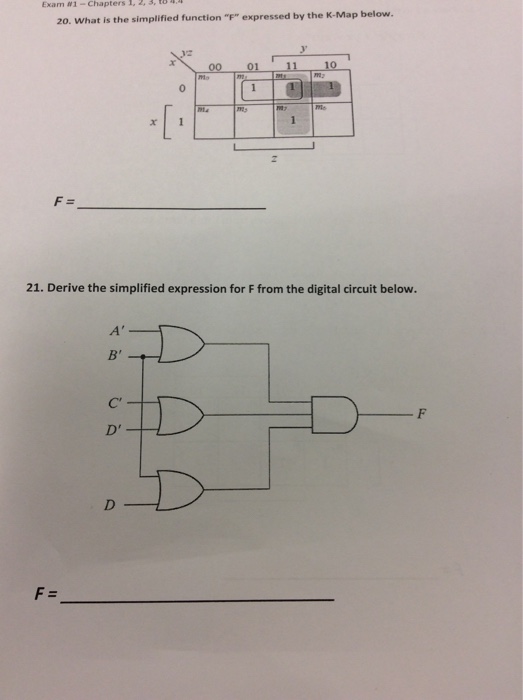

Exam #1-Chapters 1 , 2, 3, to 4.4 -Map below 20. What is the simplified function "F" expressed by the K 00 01 11 10 21. Derive the simplified expression for F from the digital circuit below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
